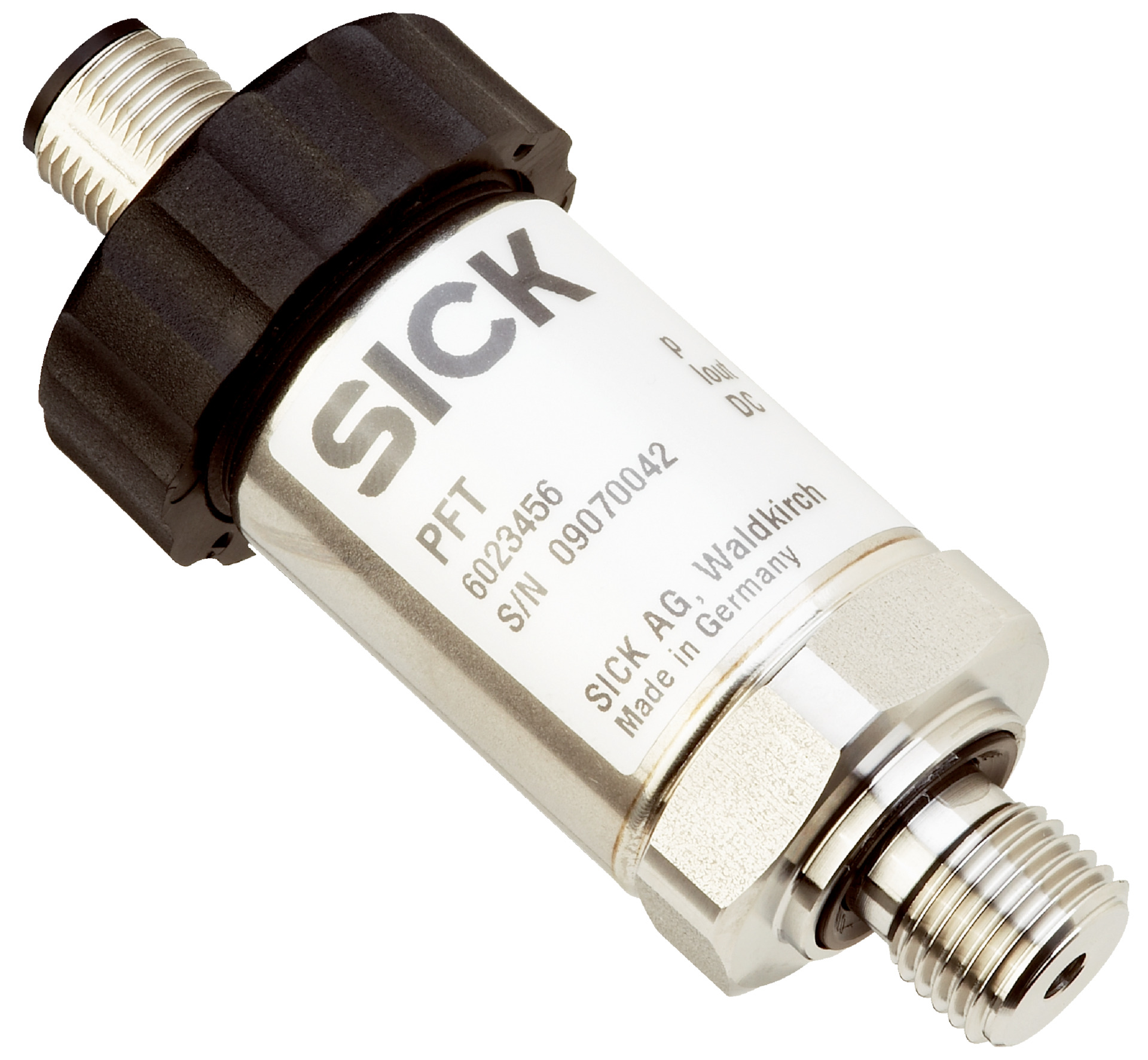

Pressure Sensor | Gauge Pressure Measurement | 0-6 Bar Range | IP65 Rated | by SICK
The Pressure Sensor is designed for precise gauge pressure measurement in both liquid and gaseous media, featuring a measuring range of 0 to 6 bar. With high accuracy of ±0.5% of span and a fast response time of ≤ 1 ms, it's perfect for industrial process control and automation systems. Built with robust stainless steel housing and IP65 rating, this sensor ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor | Gauge Pressure Measurement | 0-6 Bar Range | IP65 Rated | by SICK
Brand: SICK
SKU: 6051377
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 0-6 bar Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 6 bar
- Process temperature range: –30 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: G ½ B (EN 837)
- Wetted parts: Stainless steel 316Ti membrane
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Response time: ≤ 1 ms
- Service life: Minimum 10 million load cycles
- MTTF: 403 years
- Dimensions (H x L x W): 70mm x 80mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 to 6 bar
- High accuracy up to ±0.5% of span
- Fast response time ≤ 1 ms
- Robust stainless steel 1.4571 housing
- IP65 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Integrated pressure peak dampening options
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Machinery and equipment pressure measurement
- Automation systems requiring precise gauge pressure sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 2-wire 4-20 mA output
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

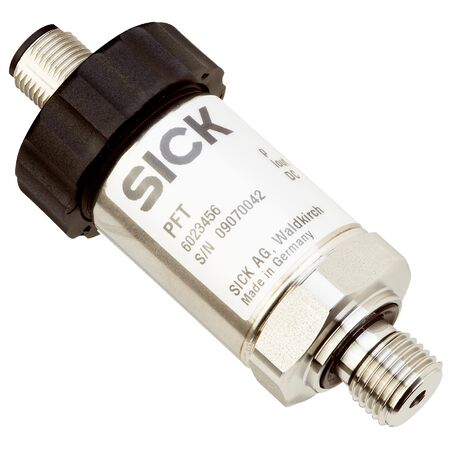

The SICK PFT-SRB6X0SGDSSAALSSZ pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable gauge pressure measurement.
