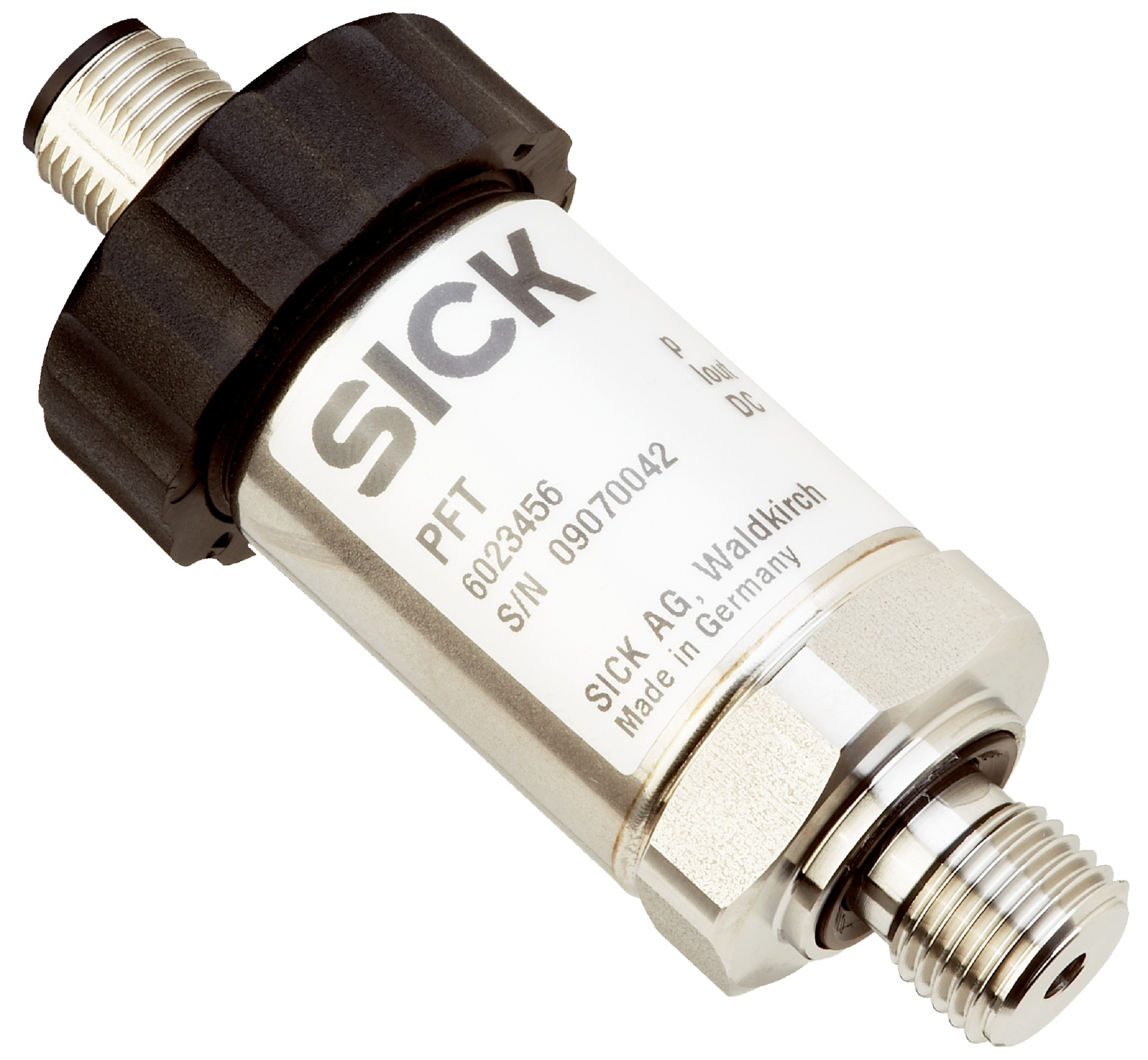

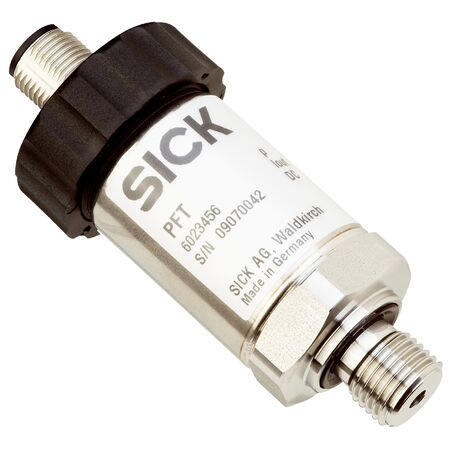

Pressure Sensor | Gauge Pressure Measurement | 0-0.6 Bar Range | IP67 Rated | by SICK
The Pressure Sensor is designed for precise gauge pressure measurement in liquid and gaseous media, featuring a measuring range of 0 to 0.6 bar. With high accuracy of ≤ ±0.5% span and a fast response time of ≤ 1 ms, it's perfect for industrial process control and automation systems. Built with robust stainless steel housing and IP67 protection, this sensor ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor | Gauge Pressure Measurement | 0-0.6 Bar Range | IP67 Rated | by SICK
Brand: SICK
SKU: 6050293
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 0-0.6 bar Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 0.6 bar
- Process temperature range: –30 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: Stainless steel 316Ti membrane
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage, short-circuit, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ±0.5% of span
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Response time: ≤ 1 ms
- Service life: Minimum 10 million load cycles
- MTTF: 403 years
- Shock load: 1000 g IEC 60068-2-27
- Vibration load: 20 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 to 0.6 bar
- High accuracy with ≤ ±0.5% span including nonlinearity and hysteresis
- Fast response time ≤ 1 ms
- Robust stainless steel 1.4571 housing with IP67 protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Pressure peak dampening options available
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Automation systems requiring precise pressure measurement
- Environmental monitoring and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- Low power consumption with efficient 2-wire 4-20 mA output
- Long service life minimizes electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PFT-SRBX60SG1SSAAMSSZ pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise low-range gauge pressure measurement.
