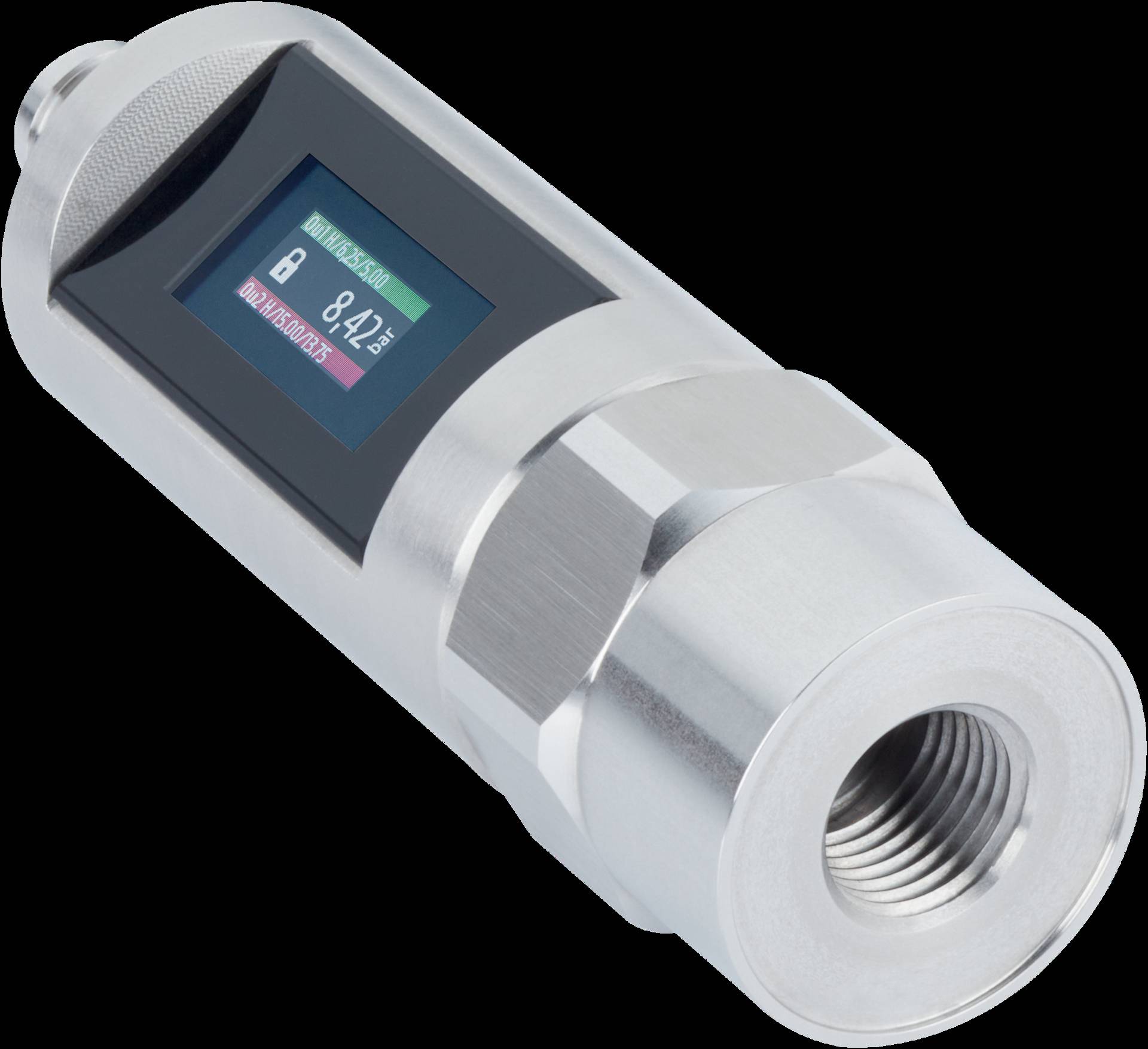

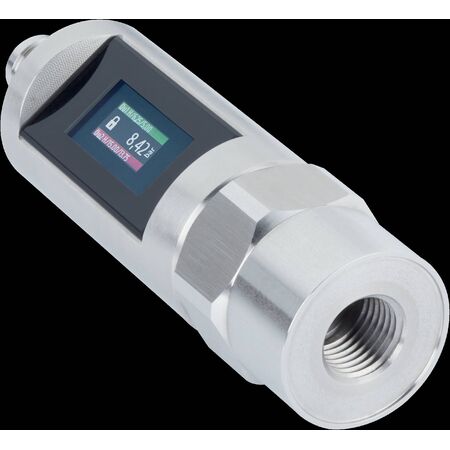

Pressure Sensor PBST | Stainless Steel | Multi-Color Touchscreen | IP68 Rated | by SICK
The PBST pressure sensor is designed for precise gauge pressure measurement, featuring a durable stainless steel housing and a multi-color touchscreen for easy configuration. Ideal for industrial automation and machine circuits, it offers flexible signal outputs and is rated IP68 for reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBST | Stainless Steel | Multi-Color Touchscreen | IP68 Rated | by SICK
Brand: SICK
SKU: 6088746
Alternatively Known As: Pressure sensor with touchscreen, IO-Link pressure switch, stainless steel pressure transducer
Technical Specifications
- Pressure type: gauge pressure
- Measuring range pressure: 0 bar to 10 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal: FKM
- Enclosure rating: IP65, IP67, IP68
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Compact housing made entirely from stainless steel with IP68 enclosure rating
- Multi-color touchscreen for quick and easy configuration
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct configuration and safety compliance.
Applications
- Machine circuits pressure measurement and control
- Monitoring and control of liquids and gases pressure
- Industrial automation requiring precise pressure sensing
- System control with configurable signal outputs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient sensor technology minimizes power consumption
- Reliable measurement reduces system errors and resource waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK PBST pressure switch is available for immediate purchase, ideal for industrial and machine circuit pressure monitoring and control.
