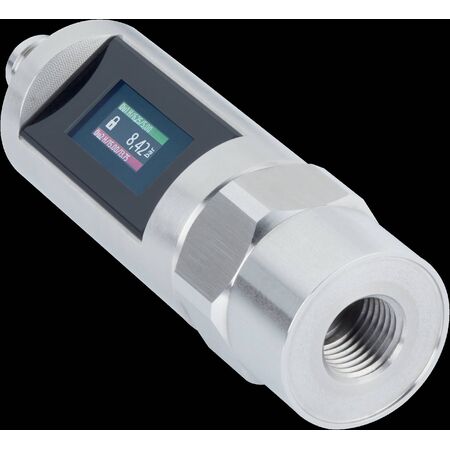

Pressure Sensor PBST | Multi-Color Touchscreen | IP68 Enclosure | by SICK
The PBST pressure sensor features a multi-color touchscreen for easy configuration and a robust IP68-rated stainless steel housing. Ideal for industrial automation, it measures compound pressure from -1 to 10 bar with two configurable signal outputs, ensuring precise monitoring of liquids and gases. Perfect for machine circuits and process control, this sensor enhances efficiency and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBST | Multi-Color Touchscreen | IP68 Enclosure | by SICK
Brand: SICK
SKU: 6088773
Alternatively Known As: Pressure sensor with touchscreen, IO-Link pressure switch, stainless steel pressure transducer
Technical Specifications
- Pressure type: Compound pressure
- Measuring range: -1 bar to 10 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal material: FKM
- Enclosure rating: IP65, IP67, IP68
- Signal outputs: Two configurable outputs (switching, IO-Link, analog)
- Connector: M12 male for voltage supply
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Multi-color touchscreen for quick and easy configuration
- Compact stainless steel housing with IP68 enclosure rating
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct configuration and safety compliance.
Applications
- Machine circuits pressure measurement and control
- Monitoring and control of liquids and gases pressure
- Industrial automation requiring precise pressure switching and transducer functions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor reduces power consumption in industrial applications
- Reliable measurement reduces system errors and resource waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial process control and automation requiring precise pressure measurement and monitoring.
