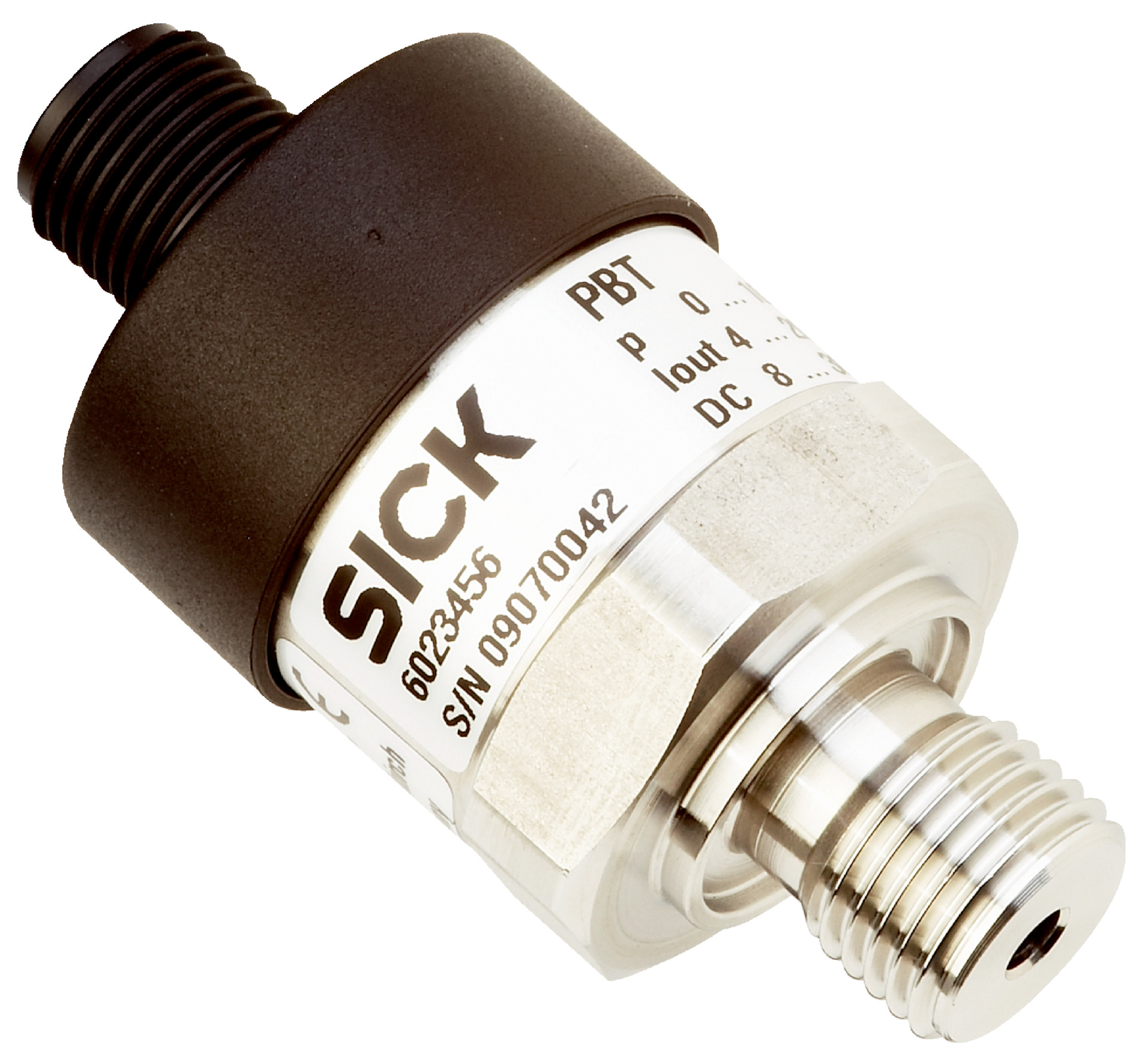

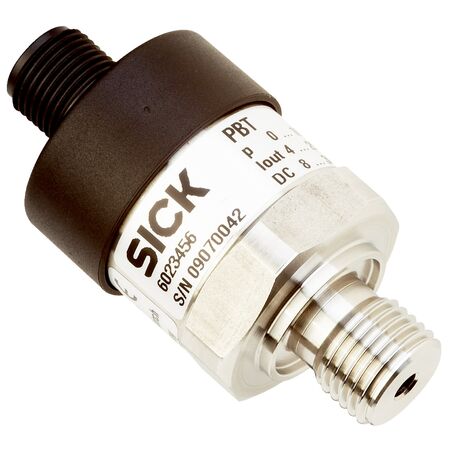

Pressure Sensor PBT-RB060SN1SE0AMA0Z | 0 to 60 Bar Gauge | IP67 Rated | Stainless Steel 316L | by SICK
The PBT-RB060SN1SE0AMA0Z pressure sensor measures gauge pressure from 0 to 60 bar, making it ideal for industrial process control of liquids and gases. With a robust stainless steel 316L construction and an IP67 rating, it ensures durability and protection against dust and water. Designed for high accuracy and fast response times, this sensor is perfect for hydraulic and pneumatic systems monitoring in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBT-RB060SN1SE0AMA0Z | 0 to 60 Bar Gauge | IP67 Rated | Stainless Steel 316L | by SICK
Brand: SICK
SKU: 6068278
Alternatively Known As: Pressure transmitter, pressure transducer, gauge pressure sensor, industrial pressure sensor
Technical Specifications
- Measuring range: 0 bar to 60 bar gauge pressure
- Process temperature: -30 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Process connection: ¼'' NPT
- Wetted parts: Stainless steel 316L
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
- Response time: < 4 ms
- Accuracy: ≤ ±1% of span including non-linearity and hysteresis
- Weight: Approx. 80 g
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 60 bar
- Suitable for liquid and gaseous media
- Process temperature range from -30 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 316L wetted parts and housing for durability
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time under 4 ms
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Long service life with minimum 100 million load cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Pressure measurement in manufacturing and automation
- General gauge pressure sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption enhances energy efficiency
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PBT-RB060SN1SE0AMA0Z pressure sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise gauge pressure measurement.
