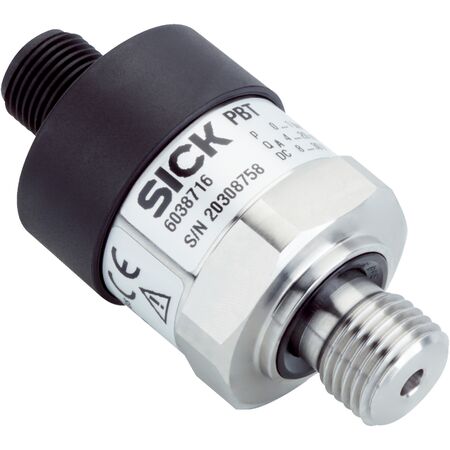

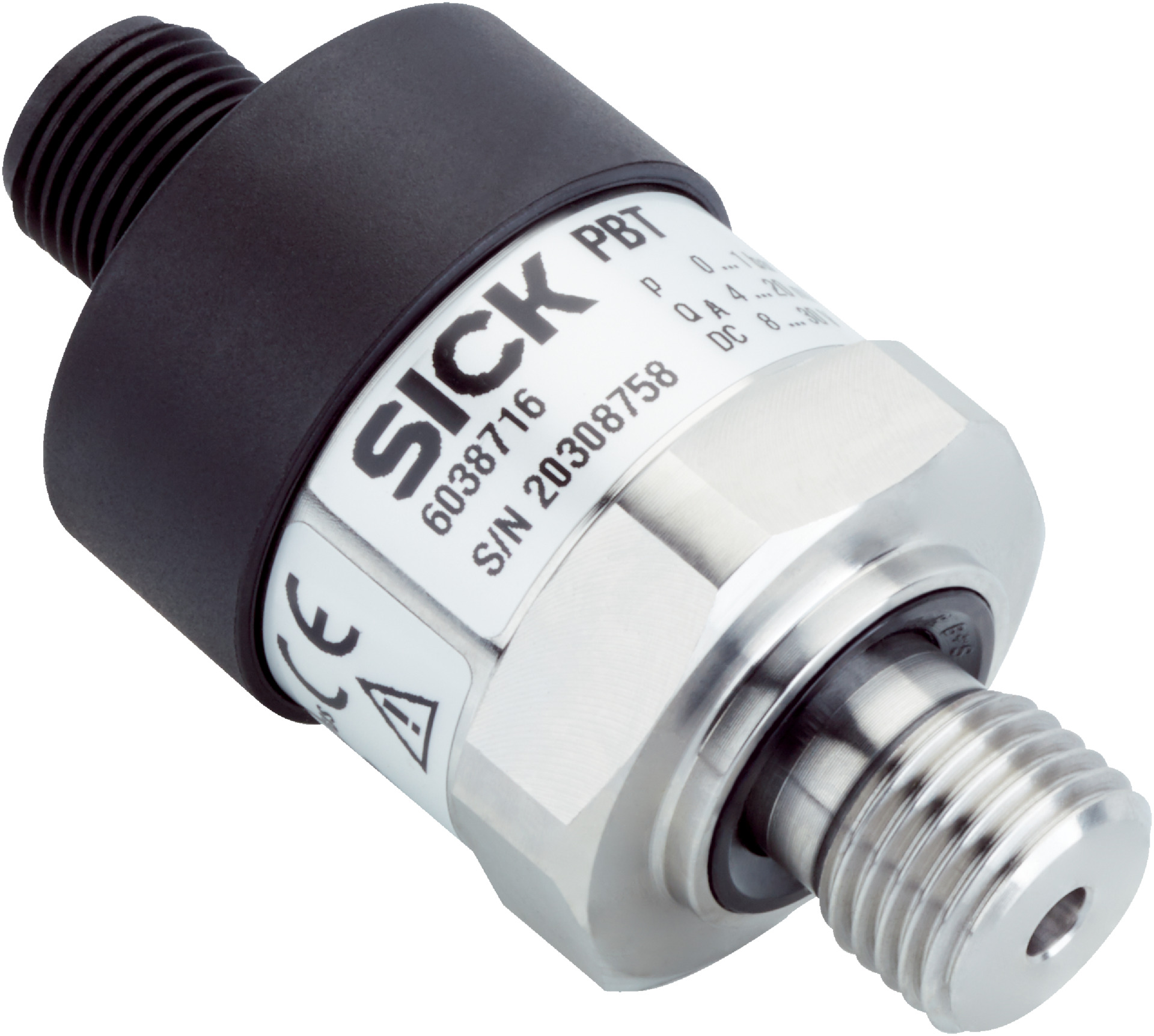

Pressure Sensor PBT-RM060SG1SENAMA0Z | 0 to 60 MPa Range | IP67 Rated | Stainless Steel | by SICK
The PBT-RM060SG1SENAMA0Z Pressure Sensor is designed for precise gauge pressure measurement in both liquid and gaseous media, featuring a pressure range from 0 MPa to 60 MPa. With an IP67 rated enclosure and durable stainless steel construction, it’s perfect for industrial process control, hydraulic, and pneumatic systems. Enjoy high accuracy and fast response times, making it an ideal choice for manufacturing and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBT-RM060SG1SENAMA0Z | 0 to 60 MPa Range | IP67 Rated | Stainless Steel | by SICK
Brand: SICK
SKU: 6047994
Alternatively Known As: Pressure Transmitter, Pressure Gauge Sensor, Industrial Pressure Sensor, 4-20mA Pressure Sensor
Technical Specifications
- Dimensions (H x L x W): 60mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 MPa to 60 MPa
- Process temperature range from -30 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 316L wetted parts and housing
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Fast response time under 4 ms
- Long service life with minimum 100 million load cycles
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Pressure measurement in manufacturing and automation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption enhances energy efficiency
- High reliability minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PBT-RM060SG1SENAMA0Z Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications.
