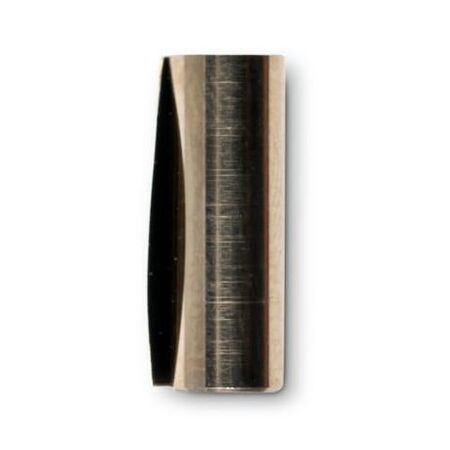

Pressure Spring RF0.5 | Suitable for 9-14mm Cable Diameter | Corrosion Resistant | Copper Color | by Wattmaster
The Pressure Spring RF0.5 is designed for cable diameters of 9-14mm, providing excellent mechanical stability and a solder-free electrical connection. Made from special stainless steel and featuring a corrosion-resistant copper finish, this spring is ideal for use with Alco ALCUW cable glands, ensuring reliable performance in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Spring RF0.5 | Suitable for 9-14mm Cable Diameter | Corrosion Resistant | Copper Color | by Wattmaster
Brand: Wattmaster
SKU: ALC126PS0.5
Alternatively Known As: Pressure Spring RF 0.5, Cable Gland Pressure Spring, EMC Cable Gland Spring
Technical Specifications
- Suitable Cable Diameter: 9-14mm
- Material: Special stainless steel
- Colour: Copper
- Non-current carrying part
- Used with Alco ALCUW cable glands
- Provides constant radial pressure
- Corrosion resistant
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-current carrying part
- Provides solder-free electrical connection between metal cable elements and earthing devices
- Ensures constant radial pressure
- Excellent mechanical stability
- Corrosion resistant
- Made from special stainless steel
- Copper in colour
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fit and compliance with electrical standards.
Applications
- Used with Alco ALCUW range cable glands
- Suitable for cast resin, heatshrink, and medium voltage joints
- Provides mechanical stability and electrical connection in cable installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Solder-free connection reduces hazardous material use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Pressure Spring RF0.5 for cable diameter 9-14mm is available for immediate purchase, ideal for use in electrical cable gland installations requiring reliable mechanical and electrical connection.
