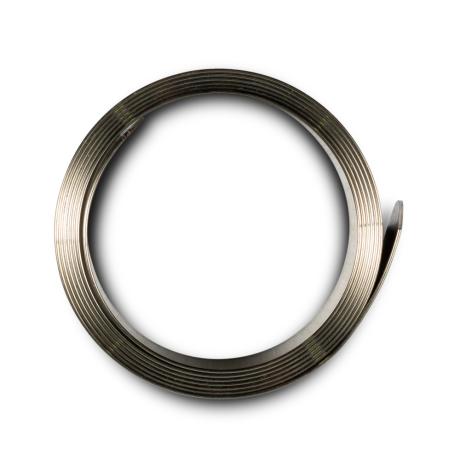

Pressure Spring RF5 Suit Cable | 44-70mm Diameter | Corrosion Resistant | Copper Color | @Each by Wattmaster
The Pressure Spring RF5 Suit Cable is designed for cable diameters of 44-70mm, providing reliable mechanical stability and a solder-free electrical connection. Made from special stainless steel and featuring a corrosion-resistant copper finish, it's ideal for use with Alco ALCUW cable glands in various electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Spring RF5 Suit Cable | 44-70mm Diameter | Corrosion Resistant | Copper Color | @Each by Wattmaster
Brand: Wattmaster
SKU: ALC126PS5
Alternatively Known As: Pressure Spring RF5, Cable Gland Pressure Spring, EMC Cable Gland Spring, RF5 Pressure Spring 44-70mm
Technical Specifications
- Material: Special stainless steel
- Colour: Copper
- Cable Diameter Suitability: 44-70mm
- Non-current carrying component
- Used with Alco ALCUW cable glands
- Corrosion resistant
- Provides constant radial pressure
- Dimensions (H x L x W): 10mm x 70mm x 70mm
- Weight: 0.1 kg
Key Features
- Non-current carrying part
- Provides a solder-free electrical connection between metal cable elements and earthing devices
- Ensures constant radial pressure
- Corrosion resistant
- Made from special stainless steel
- Copper in colour
- Excellent mechanical stability
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fit and compliance with electrical standards.
Applications
- Used with Alco ALCUW range cable glands
- Suitable for cast resin, heatshrink, and medium voltage joints
- Provides mechanical stability and electrical connection in cable installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Solder-free connection reduces hazardous material use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Pressure Spring RF5 for cable diameter 44-70mm is available for immediate purchase, ideal for electrical cable gland installations requiring reliable mechanical and electrical connection.
