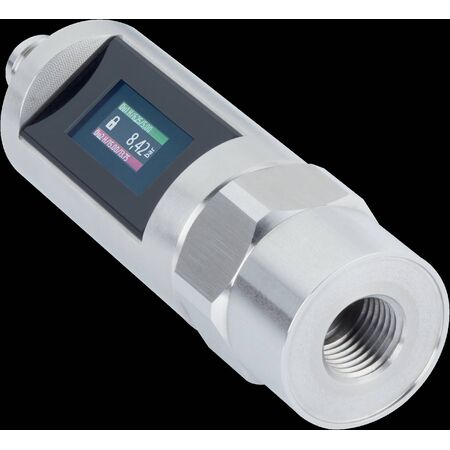

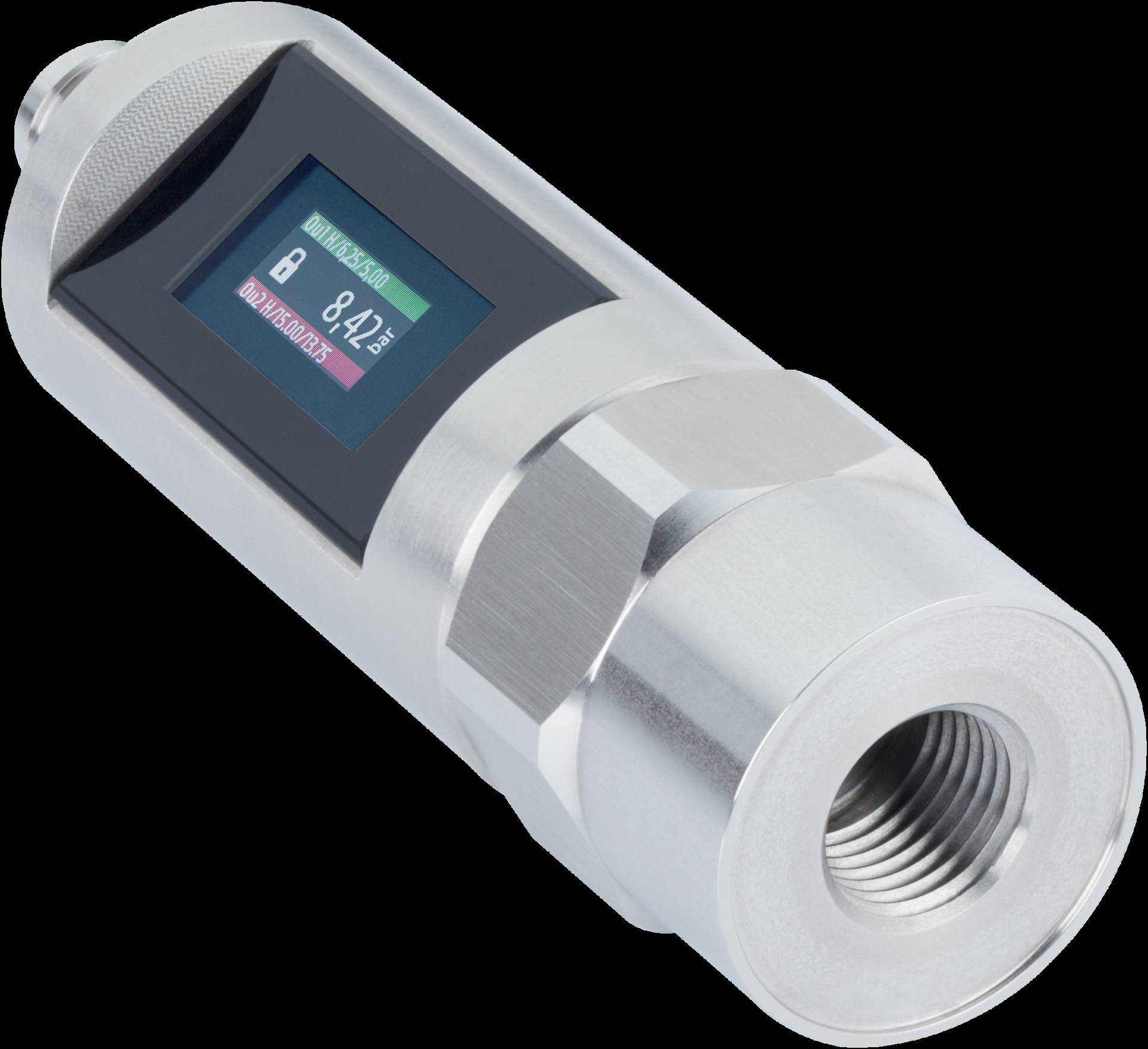

Pressure Switch PBST | Gauge Pressure | IP68 Enclosure | Multi-Color Touchscreen | by SICK
The PBST pressure switch is designed for precise gauge pressure measurement and control, featuring a robust IP68-rated stainless steel housing and a multi-color touchscreen for easy configuration. Ideal for industrial automation, it offers two configurable signal outputs and is perfect for monitoring liquids and gases in machine circuits, ensuring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Switch PBST | Gauge Pressure | IP68 Enclosure | Multi-Color Touchscreen | by SICK
Brand: SICK
SKU: 6088754
Alternatively Known As: Pressure switch, Pressure transducer, IO-Link pressure sensor, Stainless steel pressure sensor
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 40 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal material: NBR
- Enclosure rating: IP65, IP67, IP68
- Rugged ceramic measuring cell for precise data
- Two configurable signal outputs for switching and system control
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Multi-color touchscreen for quick and easy configuration
- Compact stainless steel housing with IP68 enclosure rating
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct configuration and safety compliance.
Applications
- Machine circuits pressure measurement and control
- Monitoring and control of liquids and gases pressure
- Industrial automation requiring precise pressure switching and transducer functions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor reduces power consumption in industrial applications
- Reliable measurement reduces process errors and material waste
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial machine circuit pressure monitoring and control.
