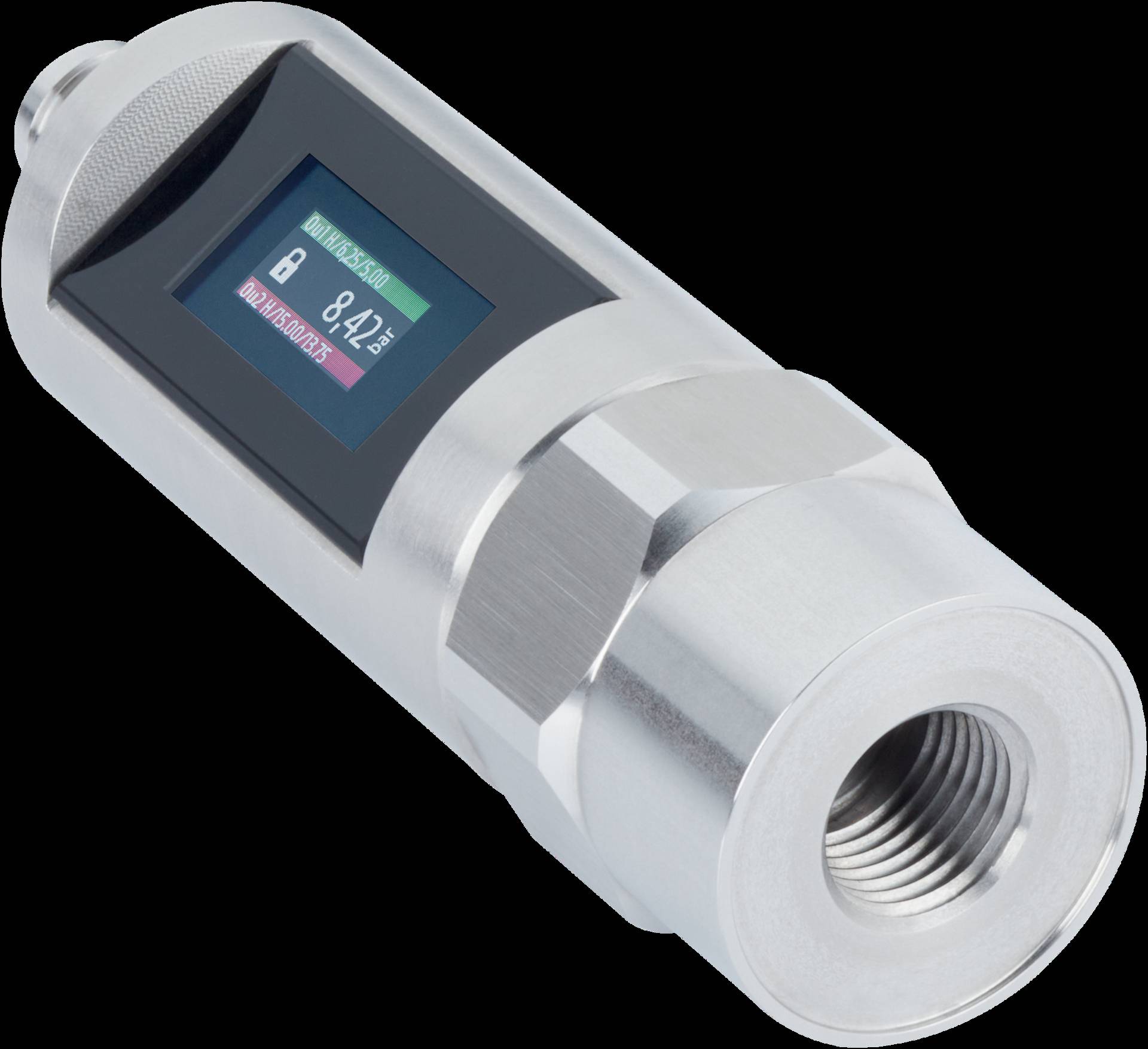

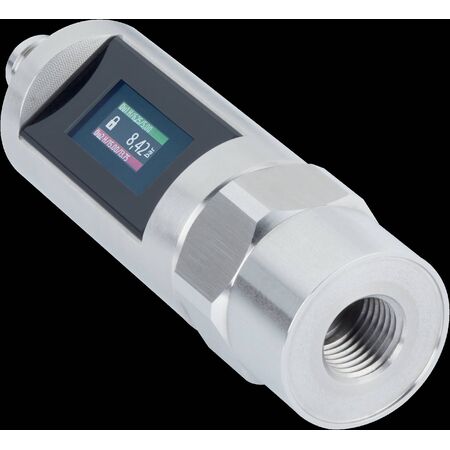

Pressure Switch PBST | Gauge Pressure 0-40 Bar | IP68 Enclosure | by SICK
The PBST pressure switch is designed for precise gauge pressure measurement from 0 to 40 bar, making it ideal for industrial automation and process control. With a durable stainless steel housing and an IP68 enclosure rating, it ensures reliable performance in harsh environments. Featuring a multi-color touchscreen for easy configuration and two configurable signal outputs, this sensor is perfect for monitoring liquids and gases.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Switch PBST | Gauge Pressure 0-40 Bar | IP68 Enclosure | by SICK
Brand: SICK
SKU: 6088755
Alternatively Known As: Pressure switch, Pressure transducer, IO-Link pressure sensor, Stainless steel pressure sensor
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range pressure: 0 bar to 40 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal: FKM
- Enclosure rating: IP65, IP67, IP68
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Compact housing made entirely from stainless steel with IP68 enclosure rating
- Multi-color touchscreen for quick and easy configuration
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct configuration and secure process connections.
Applications
- Machine circuits pressure measurement and control
- Monitoring and control of liquids and gases pressure
- Industrial automation requiring precise pressure switching and transducer functions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient sensor operation minimizes power consumption
- Reliable measurement reduces system errors and resource waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial process control and automation requiring precise pressure measurement and monitoring.
