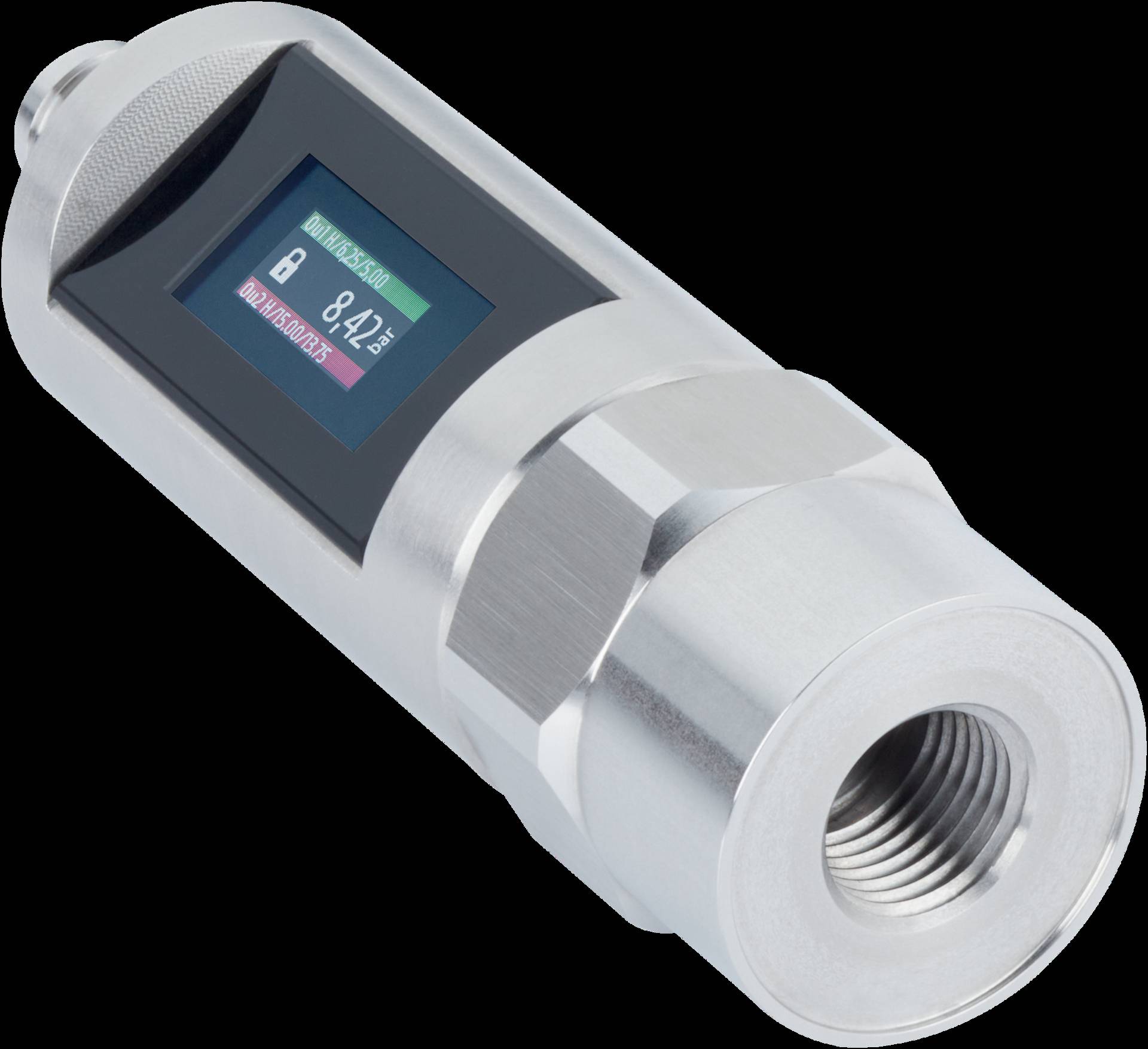

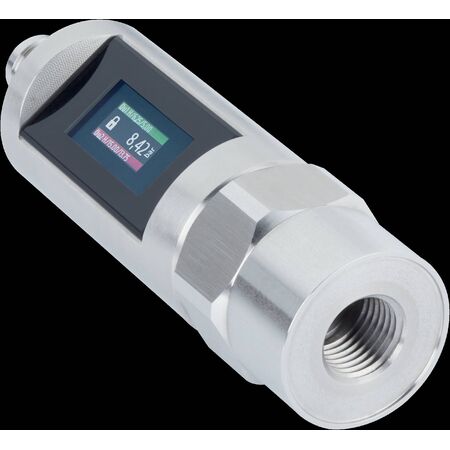

Pressure Switch PBST | Multi-Color Touchscreen | IP68 Enclosure | by SICK
The PBST pressure switch features a multi-color touchscreen and an IP68 enclosure, making it perfect for precise pressure measurement in industrial applications. With a measuring range of 0 to 250 bar and two configurable signal outputs, it’s designed for reliable performance in machine circuits and process control. Ideal for monitoring liquids and gases, this compact stainless steel sensor ensures durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Switch PBST | Multi-Color Touchscreen | IP68 Enclosure | by SICK
Brand: SICK
SKU: 6088760
Alternatively Known As: Pressure switch with touchscreen, IO-Link pressure sensor, stainless steel pressure transducer, compact pressure sensor
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 250 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal material: NBR
- Enclosure rating: IP65, IP67, IP68
- Two configurable signal outputs for switching, IO-Link, or analog output
- Multi-color touchscreen display for status indication and configuration
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Compact housing made entirely from stainless steel with IP68 enclosure rating
- Multi-color touchscreen for quick and easy configuration
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct configuration and integration into machine circuits.
Applications
- Machine circuits pressure measurement and control
- Monitoring liquids and gases pressure
- Switching operations and system control in industrial automation
- Process control requiring precise pressure data
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient sensor operation minimizes power consumption
- Reliable measurement reduces system errors and resource waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial process control and machine circuit pressure monitoring.
