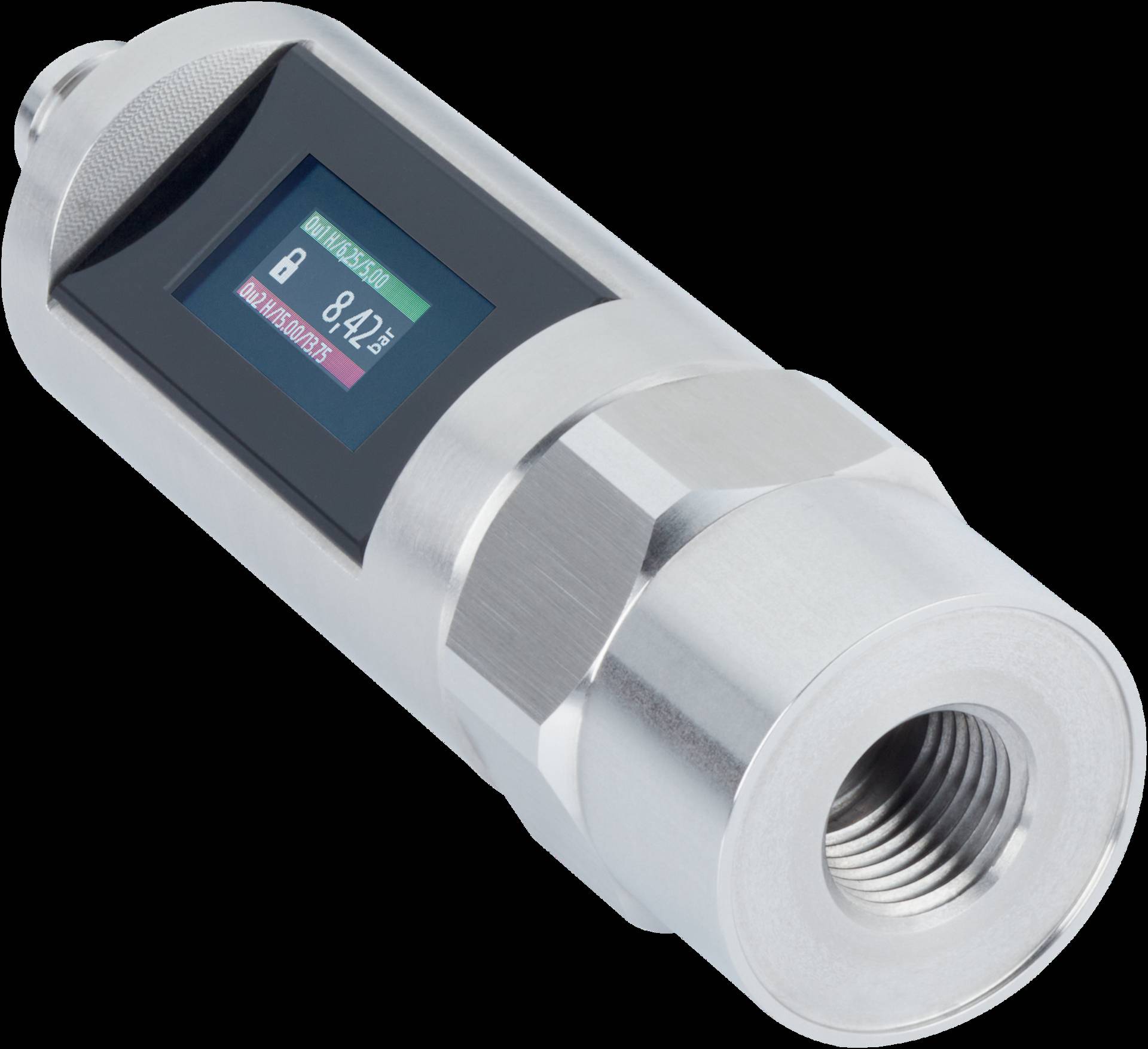

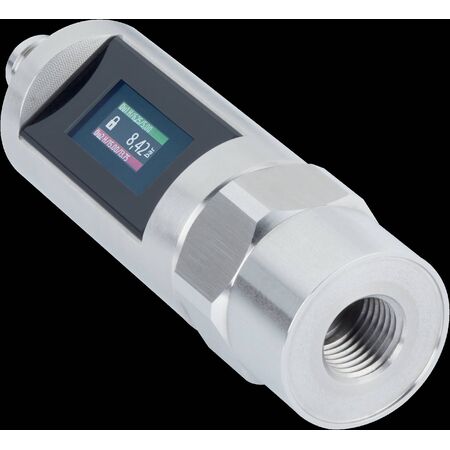

Pressure Switch PBST | Multi-Color Touchscreen | IP68 Enclosure | by SICK
The PBST pressure switch features a multi-color touchscreen for easy configuration and a robust IP68-rated stainless steel housing. Ideal for industrial automation and machine circuits, it measures gauge pressure from 0 to 40 bar with two configurable signal outputs, ensuring precise monitoring of liquids and gases. Perfect for professionals seeking reliable pressure sensing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 40 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal material: EPDM
- Enclosure rating: IP65, IP67, IP68
- Rugged ceramic measuring cell for precise data
- Two separately configurable signal outputs
- Dimensions (H x L x W): 80mm x 30mm x 50mm
- Weight: 0.3 kg
Key Features
- Multi-color touchscreen for quick and easy configuration
- Compact stainless steel housing with IP68 enclosure rating
- Two flexibly configurable signal outputs (switching, IO-Link, analog)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct configuration and system integration.
Applications
- Machine circuits pressure measurement and control
- Monitoring and control of liquids and gases pressure
- Industrial automation requiring precise pressure sensing
- System control with configurable signal outputs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient sensor operation minimizes power consumption
- Reliable measurement reduces system errors and resource waste
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial and machine circuit pressure monitoring and control applications.
