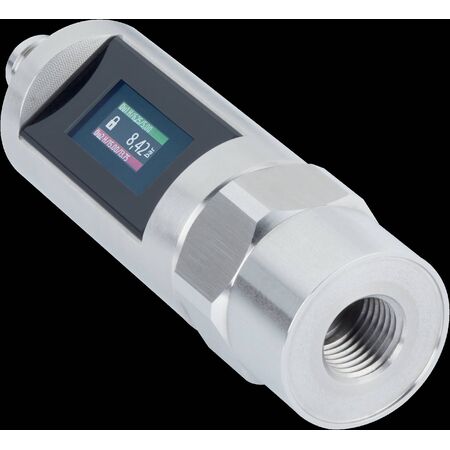

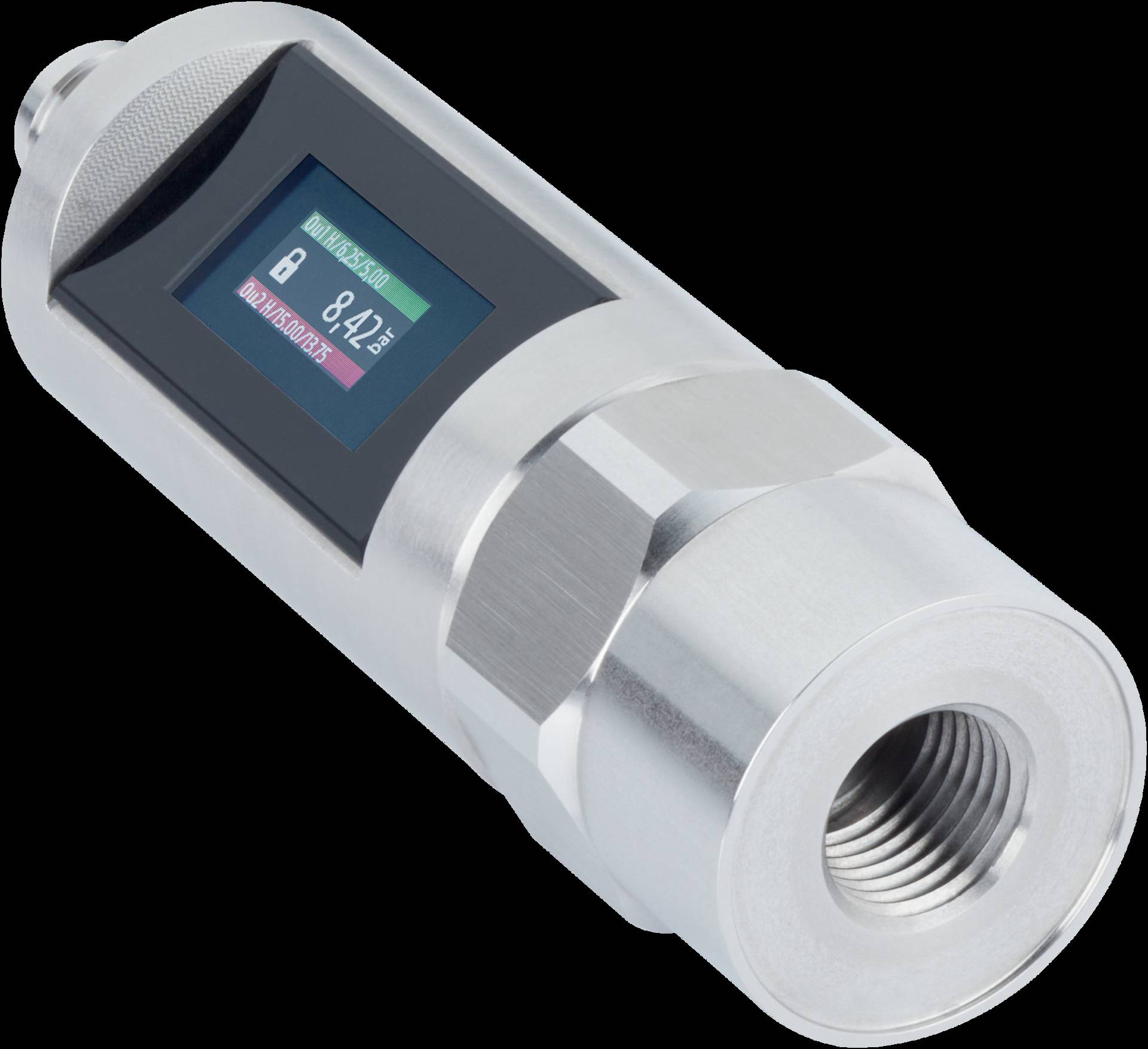

Pressure Switch PBST | Multi-Color Touchscreen | IP68 Enclosure | by SICK
The PBST pressure switch features a multi-color touchscreen for easy configuration and a robust IP68-rated stainless steel housing. Designed for measuring gauge pressure in liquids and gases, it offers two configurable signal outputs and is ideal for industrial automation and process control applications. Perfect for environments requiring precise and reliable pressure measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Switch PBST | Multi-Color Touchscreen | IP68 Enclosure | by SICK
Brand: SICK
SKU: 6088761
Alternatively Known As: Pressure switch with touchscreen, IO-Link pressure sensor, stainless steel pressure sensor, compact pressure transducer
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 250 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal material: FKM
- Enclosure rating: IP65, IP67, IP68
- Signal outputs: Two configurable outputs (switching, IO-Link, analog)
- Connector: M12 male for voltage supply
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Multi-color touchscreen for quick and easy configuration
- Compact stainless steel housing with IP68 enclosure rating
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with machine control systems.
Applications
- Machine circuits for pressure measurement, monitoring, and control
- Measurement of liquids and gases in industrial processes
- Switching operations and system control in automation
- Use in environments requiring rugged and precise pressure sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient sensor operation minimizes power consumption
- Reliable measurement reduces process waste and improves system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial process control and automation applications.
