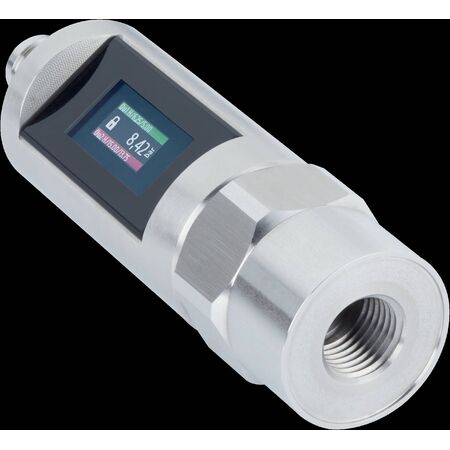

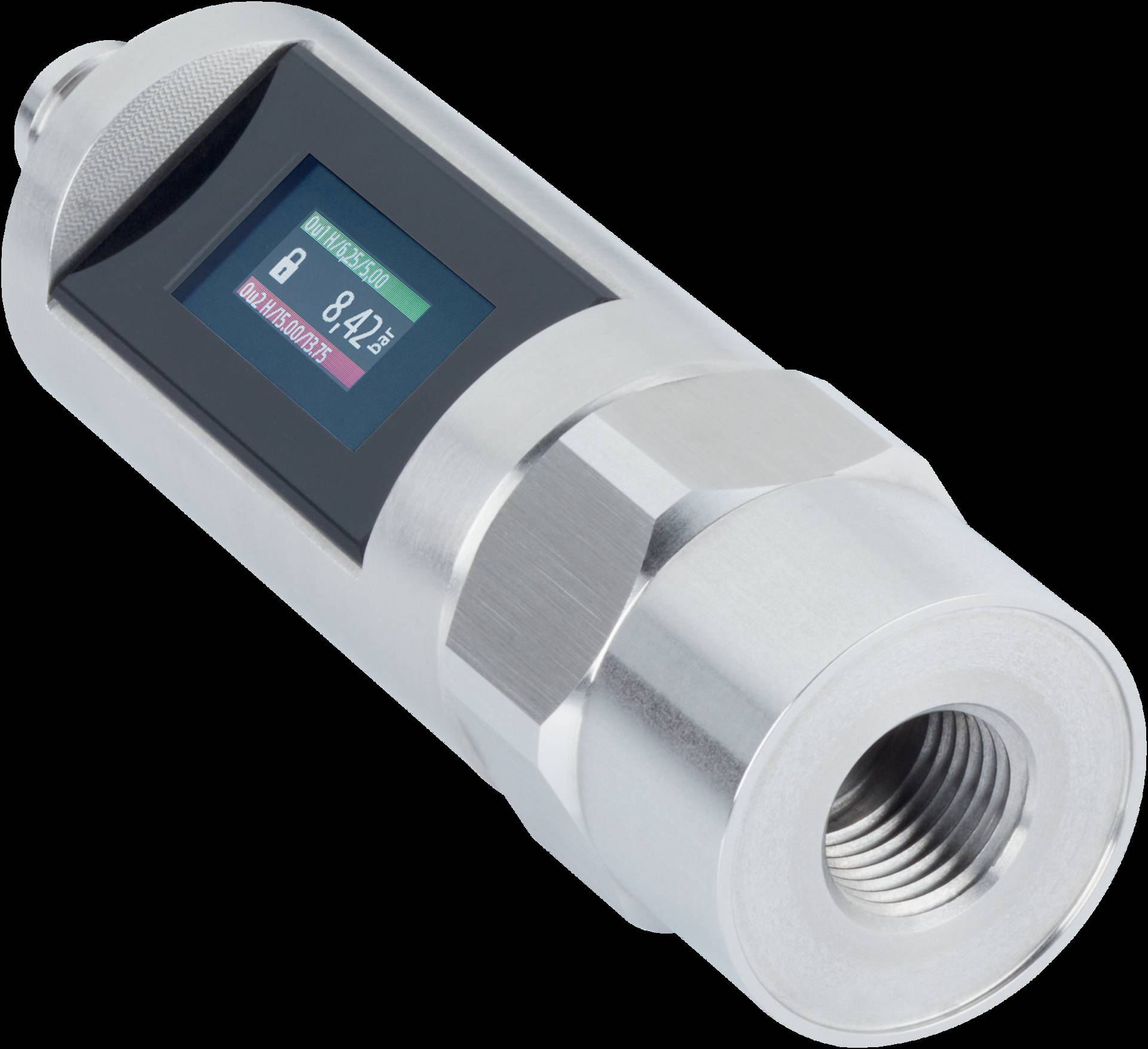

Pressure Switch PBST | Touchscreen Display | IP68 Enclosure | Stainless Steel | by SICK
The PBST pressure switch features a multi-color touchscreen display and an IP68 enclosure, making it perfect for precise pressure measurement in industrial automation. With a measuring range of 0 to 16 bar and two configurable signal outputs, it's designed for monitoring liquids and gases in machine circuits. Built from durable stainless steel, this sensor ensures reliability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Switch PBST | Touchscreen Display | IP68 Enclosure | Stainless Steel | by SICK
Brand: SICK
SKU: 6088750
Alternatively Known As: Pressure switch with touchscreen, IO-Link pressure sensor, stainless steel pressure transducer, compact pressure sensor
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range pressure: 0 bar to 16 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal: EPDM
- Enclosure rating: IP65, IP67, IP68
- Rugged ceramic measuring cell for precise data
- Two separately configurable signal outputs
- Touchscreen display with green-red color change for status indication
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Compact housing made entirely from stainless steel with IP68 enclosure rating
- Multi-color touchscreen for quick and easy configuration
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct configuration and system integration.
Applications
- Machine circuits pressure measurement and control
- Monitoring and control of liquids and gases pressure
- Industrial automation requiring precise pressure sensing
- System control with configurable signal outputs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient sensor operation minimizes power consumption
- Reliable measurement reduces system errors and resource waste
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial and machine circuit pressure monitoring and control applications.
