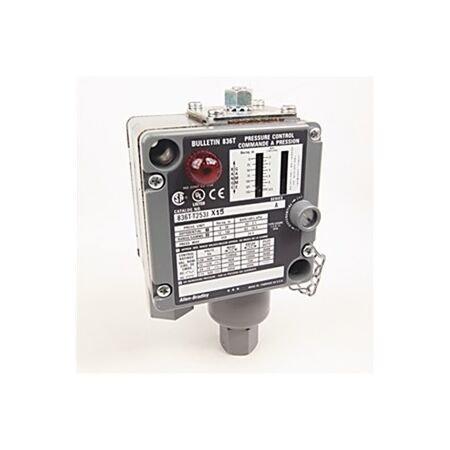

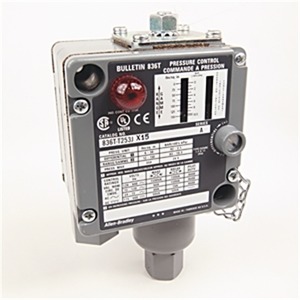

Product Name/Title: Allen-Bradley 836TT253JX15 Pressure Switch with Vacuum Control
Brand: Allen-Bradley
SKU: 836TT253JX15
Alternatively Known As: Pressure Control Switch, Vacuum Pressure Switch, SPDT Pressure Switch with LED
Technical Specifications
- Pressure Range: 12-150 PSI
- Maximum Pressure: 350 PSI
- Contact Type: 2 circuit contact block, SPDT
- Enclosure Rating: NEMA 1 / 4 / 13
- Pilot Light: Red LED
- Operating Voltage: 24 VDC
- Dimensions (H x L x W): 90mm x 50mm x 70mm
- Weight: 0.5 kg
Key Features
- Copper alloy bellows for durability
- 2 circuit contact block with SPDT configuration
- Maximum pressure rating of 350 PSI
- Adjustable pressure range from 12 to 150 PSI
- NEMA 1 / 4 / 13 rated enclosure for protection
- Includes red LED pilot light for status indication
- Operates at 24 VDC
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with pressure switch systems and electrical connections.
Applications
- Industrial pressure monitoring and control
- Vacuum control systems
- Machinery requiring pressure switch with LED indication
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable copper alloy construction reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 836TT253JX15 Pressure Switch is available for immediate purchase, ideal for industrial and vacuum control applications.
