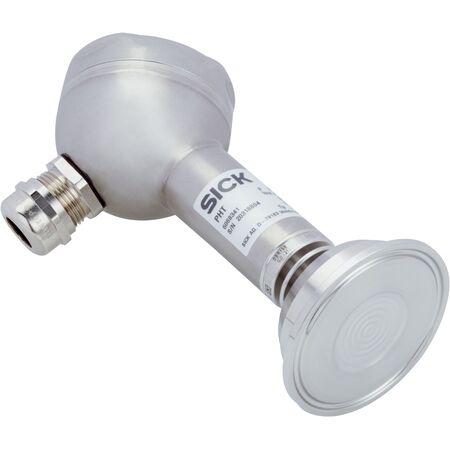

Pressure Transmitter PHT-RBX25EC40S0AFT0Z | 0 to 0.25 Bar | IP67 Rated | 4-20mA Output | by SICK
The Pressure Transmitter PHT-RBX25EC40S0AFT0Z is designed for accurate gauge pressure measurement from 0 to 0.25 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 enclosure rating, this sensor is built for durability in industrial and food processing applications, ensuring reliable performance even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.25 bar
- Pressure type: Gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Clamp (ISO 2852) DN 40
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.25% of span
- Non-linearity: ≤ ±0.2% of span
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 0.25 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (ISO 2852) DN 40 process connection with 316L stainless steel wetted parts
- Housing made of stainless steel 1.4571 with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High mechanical shock and vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise low-pressure measurement
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RBX25EC40S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise low-pressure measurement.
