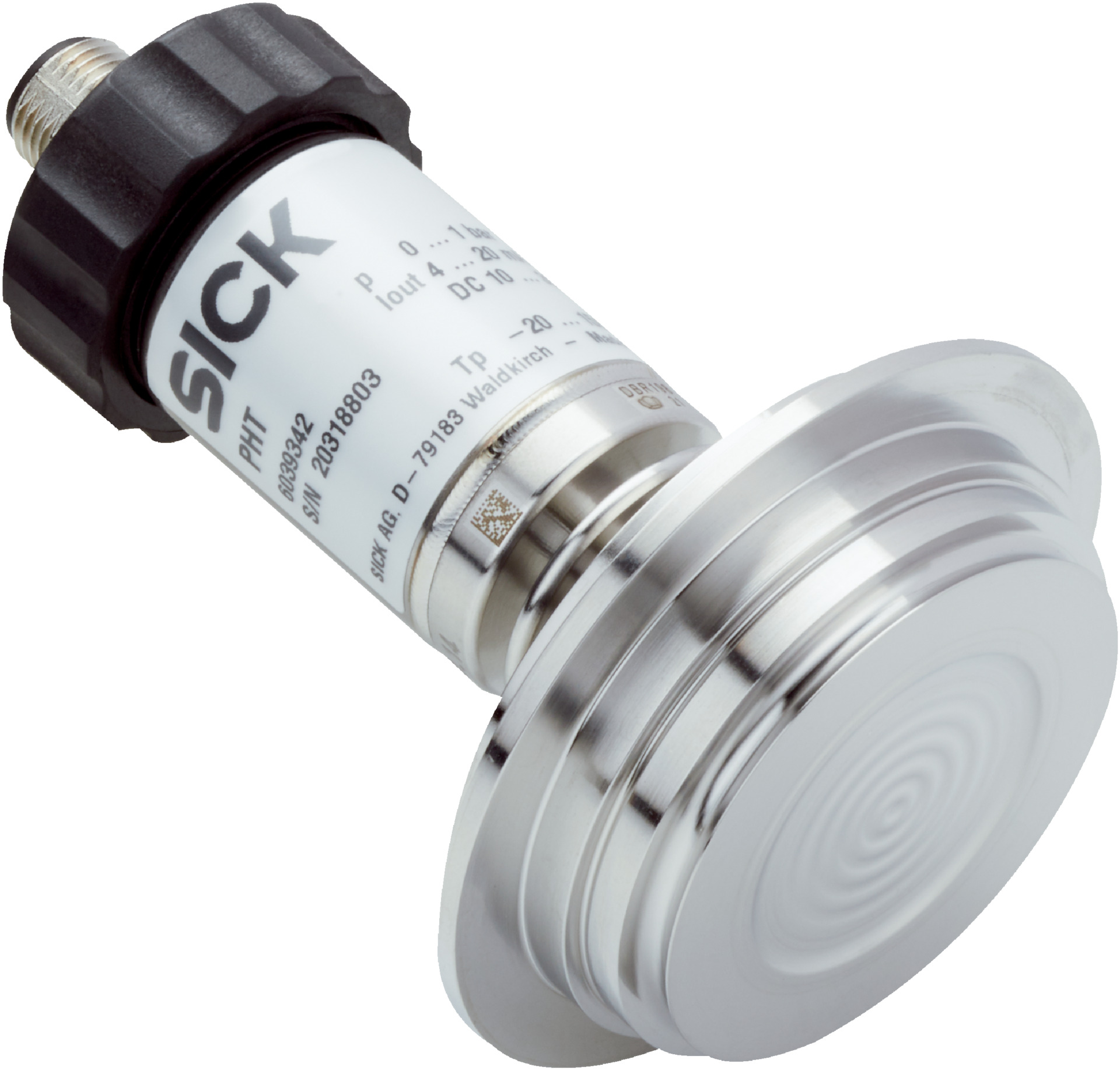

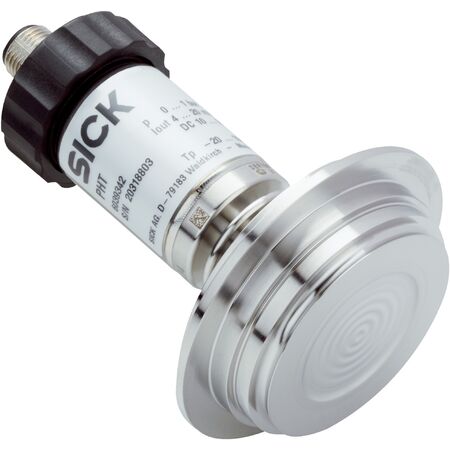

Pressure Transmitter PHT-RBX25SVF0S0AMS0Z | 0 to 0.25 Bar Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RBX25SVF0S0AMS0Z is designed for precise gauge pressure measurement in industrial applications. With a measuring range of 0 to 0.25 bar and a robust stainless steel housing, it ensures durability and reliability in harsh environments. Ideal for both liquid and gaseous media, this sensor features a fast response time of ≤ 10 ms and high accuracy of ≤ ± 0.5 % of span, making it perfect for process control and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.25 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Varivent connection type F
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span (BFSL)
- Long-term drift: ≤ 0.2 % of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 100mm x 25mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure in the range 0 bar to 0.25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5 % of span with optional 0.25 %
- Long-term stability with ≤ 0.2 % span drift per year
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring gauge pressure monitoring
- Applications requiring high accuracy pressure sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption with 4-20 mA output signal
- Complies with RoHS and food contact material standards ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RBX25SVF0S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise gauge pressure measurement.
