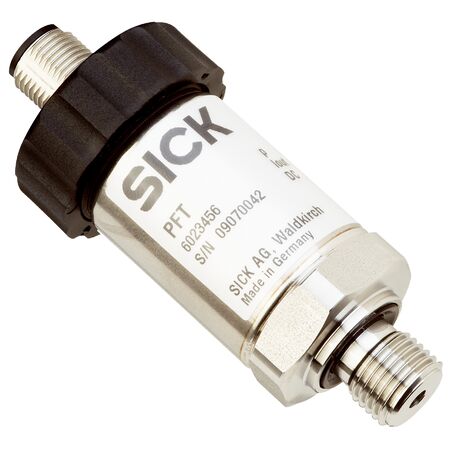

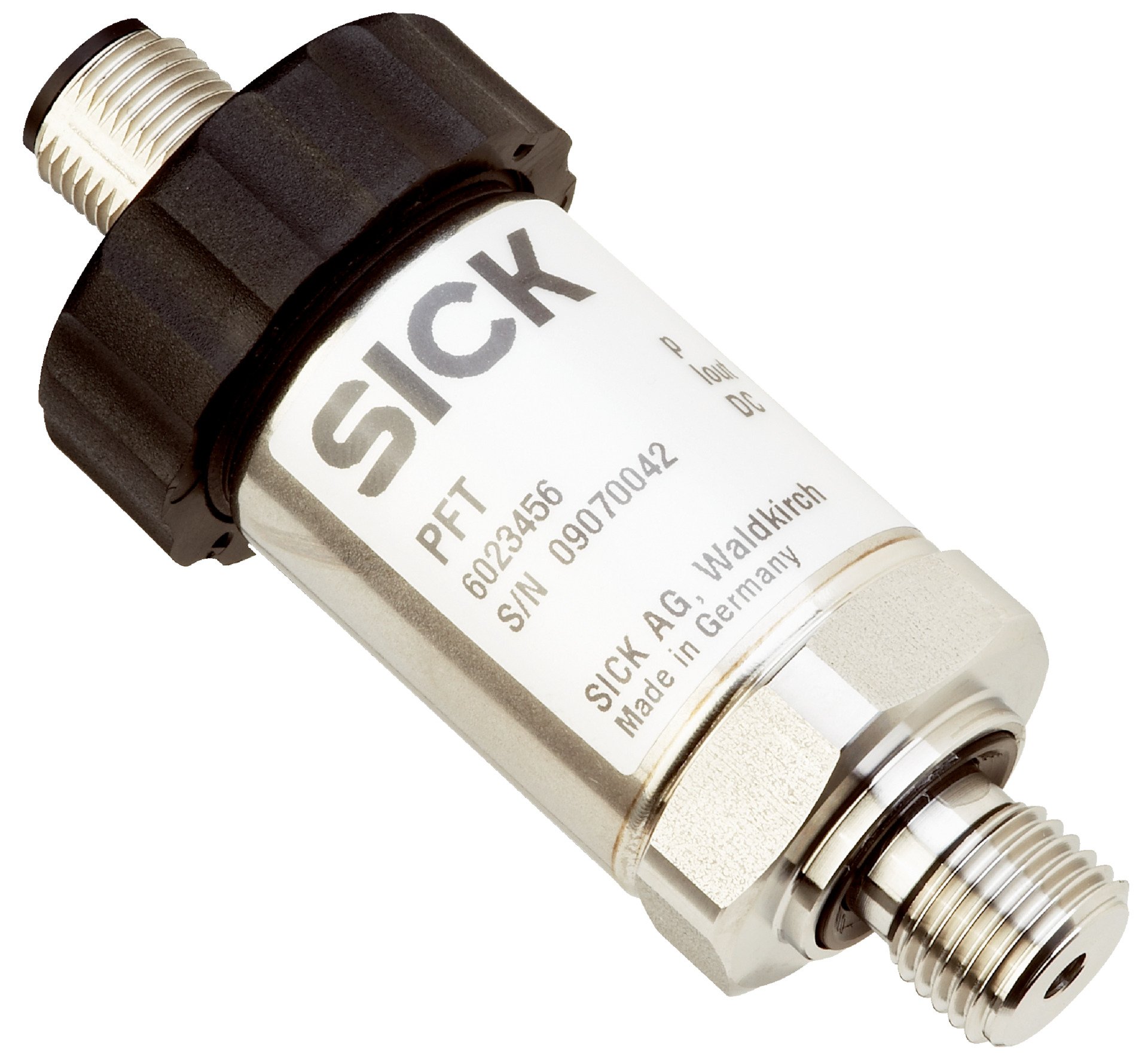

Pressure Transmitter | 0-0.4 Bar Gauge Pressure Sensor | IP65 Rated | Stainless Steel Construction | by SICK
The Pressure Transmitter is designed to measure gauge pressure from 0 to 0.4 bar, making it ideal for industrial process control and monitoring applications. With a robust stainless steel construction and IP65 rating, it ensures durability and protection against dust and water. This sensor features a fast response time of ≤ 1 ms and high accuracy, making it perfect for precise low-pressure monitoring in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 70mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures gauge pressure from 0 to 0.4 bar
- Output signal: 0 V to 10 V, 3-wire
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts made of stainless steel 316Ti
- Housing made of stainless steel 1.4571
- Supply voltage range: 14 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP65 rated enclosure for dust and water protection
- High accuracy with ≤ ±0.5% of span and non-linearity ≤ ±0.2%
- Fast response time ≤ 1 ms
- Long service life with minimum 10 million load cycles
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise low-pressure monitoring
- Environments with temperatures from -30°C to +100°C
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Low power consumption with efficient electrical design
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFT-SRBX40SG1SSAVLSSZ pressure sensor is available for immediate purchase, ideal for industrial process control and monitoring applications.
