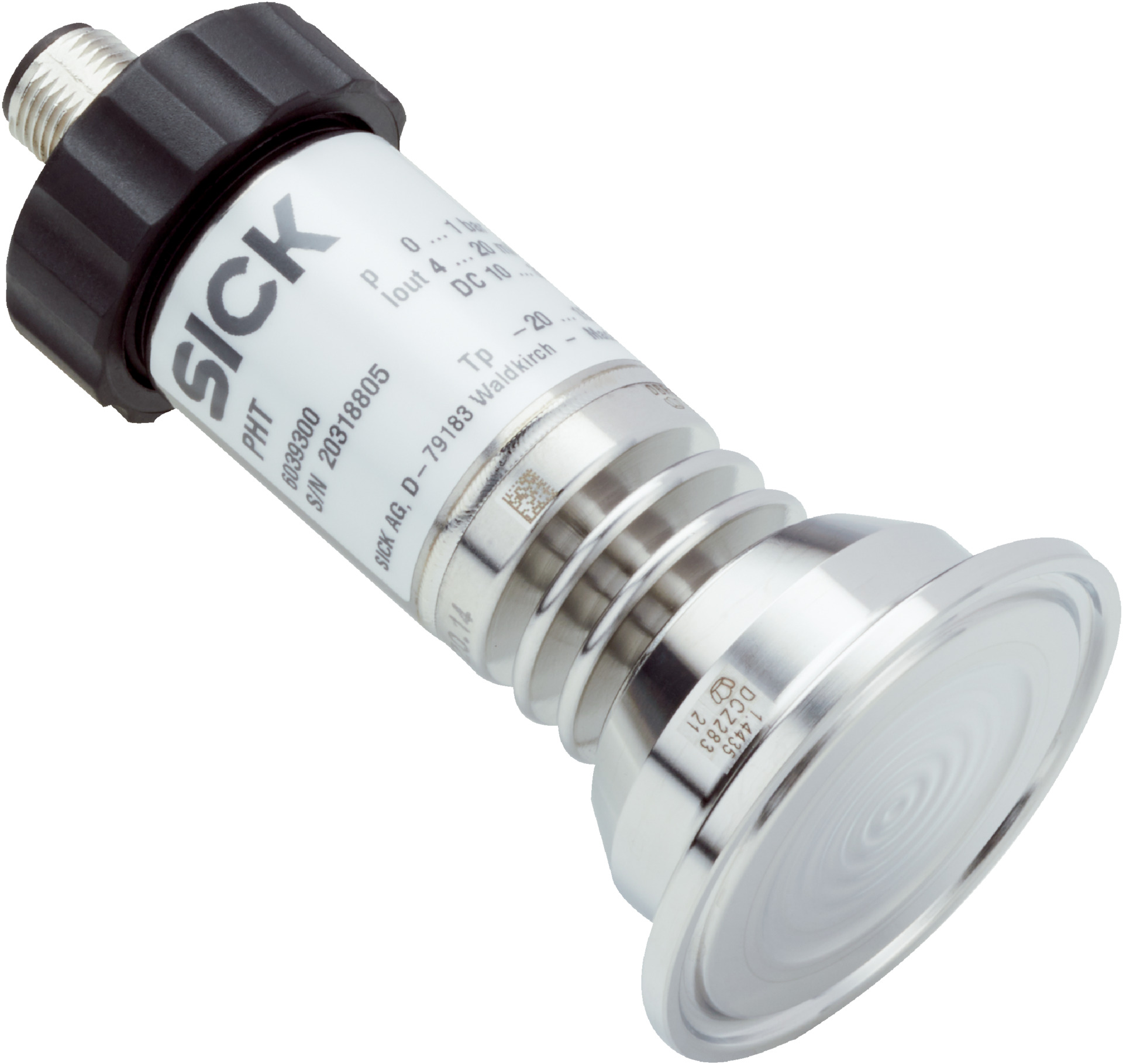

Pressure Transmitter PHT-RBX60SD40S0ALS0Z | 0-0.6 Bar Gauge Pressure | IP65 Rated | by SICK
The Pressure Transmitter PHT-RBX60SD40S0ALS0Z measures gauge pressure from 0 to 0.6 bar, making it ideal for industrial process control in liquid and gaseous media. With a robust stainless steel housing and FDA-approved materials, it ensures high accuracy and reliability, perfect for food and pharmaceutical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.6 bar gauge pressure
- Process temperature range: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 40
- Housing material: Stainless steel 1.4571
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 0.6 bar
- Suitable for liquid and gaseous media
- Process connection via Clamp (DIN 32676) DN 40
- Stainless steel 1.4571 housing with 316L stainless steel wetted parts
- Output signal: 4 mA to 20 mA, 2-wire
- Overvoltage, short-circuit, and reverse polarity protection
- IP65 rated enclosure for dust and water resistance
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and pharmaceutical industries
- Use in hygienic environments requiring FDA approved materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved materials ensure safe use in food and pharmaceutical industries minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK PHT-RBX60SD40S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications.
