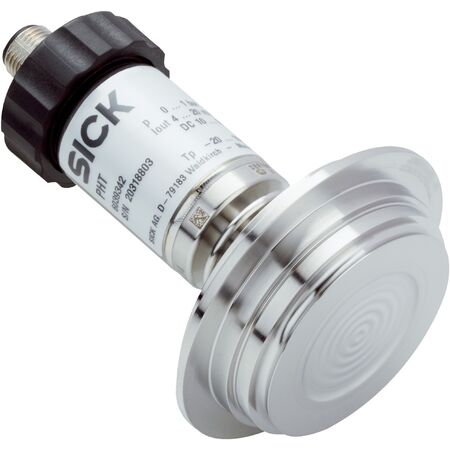

Pressure Transmitter PHT-RBX60SVF0S0AFT0Z | 0-0.6 Bar Range | Gauge Pressure Measurement | IP67 Rated | by SICK
The Pressure Transmitter PHT-RBX60SVF0S0AFT0Z is designed for precise gauge pressure measurement in liquid and gaseous media, featuring a measuring range of 0 to 0.6 bar. With a robust stainless steel housing and an IP67 enclosure rating, it’s perfect for industrial process control and food industry applications, ensuring safety with FDA-approved internal transmission fluid.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 0.6 bar
- Process temperature: -20 °C to +150 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 10 V) / 0.02 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Varivent connection type F
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: Field housing
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Non-linearity: ≤ ± 0.2% of span (BFSL)
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Non-repeatability: ≤ ± 0.1% of span
- Response time (10% to 90%): ≤ 10 ms
- Long-term drift/one-year stability: ≤ 0.2% of span
- Rated temperature range: 0 °C to +80 °C
- Ambient temperature operation: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- Measuring range from 0 bar to 0.6 bar
- Gauge pressure measurement
- Output signal: 4 mA to 20 mA, 2-wire
- Process temperature range from -20 °C to +150 °C
- Stainless steel 1.4571 housing with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5% of span, optional 0.25%
- FDA approved synthetic oil as internal transmission fluid
- Mechanical shock resistance up to 500 g and vibration resistance up to 15 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PHT-RBX60SVF0S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise gauge pressure measurement.
