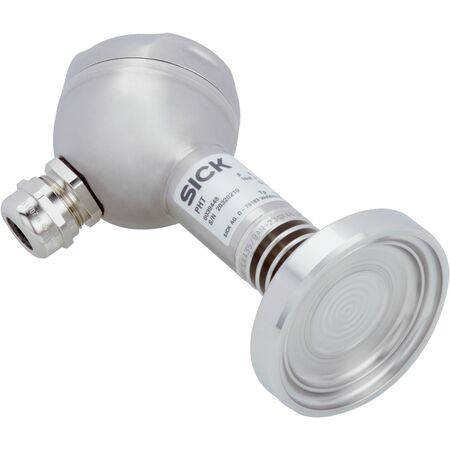

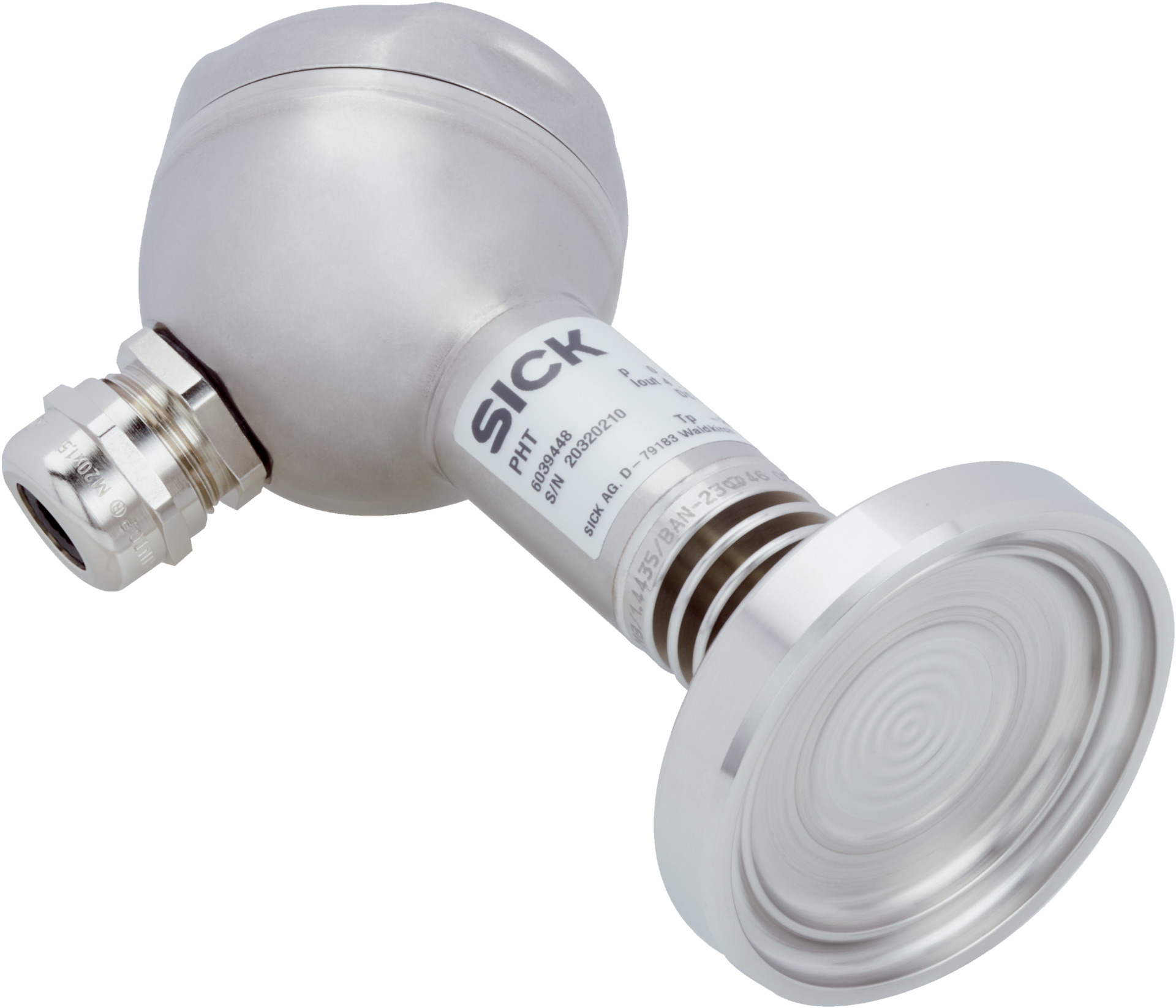

Pressure Transmitter PHT-RB1X0S640S0ALS0Z | 0-1 Bar Gauge Pressure | IP65 Rated | High Accuracy | by SICK
The Pressure Transmitter PHT-RB1X0S640S0ALS0Z measures gauge pressure from 0 to 1 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP65 rating, it ensures durability in industrial environments. Designed for precise pressure monitoring, it features a fast response time of ≤ 10 ms and high accuracy up to ±0.5% of span, perfect for applications in process control and the food industry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut
- Housing material: Stainless steel 1.4571
- Wetted parts: 316L stainless steel
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 1 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy up to ±0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Robust stainless steel housing (1.4571) and process connection (316L stainless steel)
- IP65 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2% span drift per year
- MTTF of 403 years indicating high reliability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB1X0S640S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
