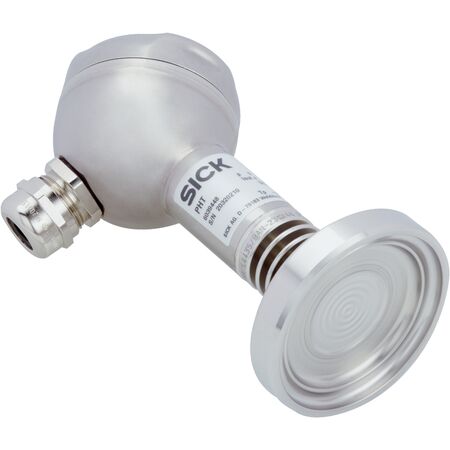

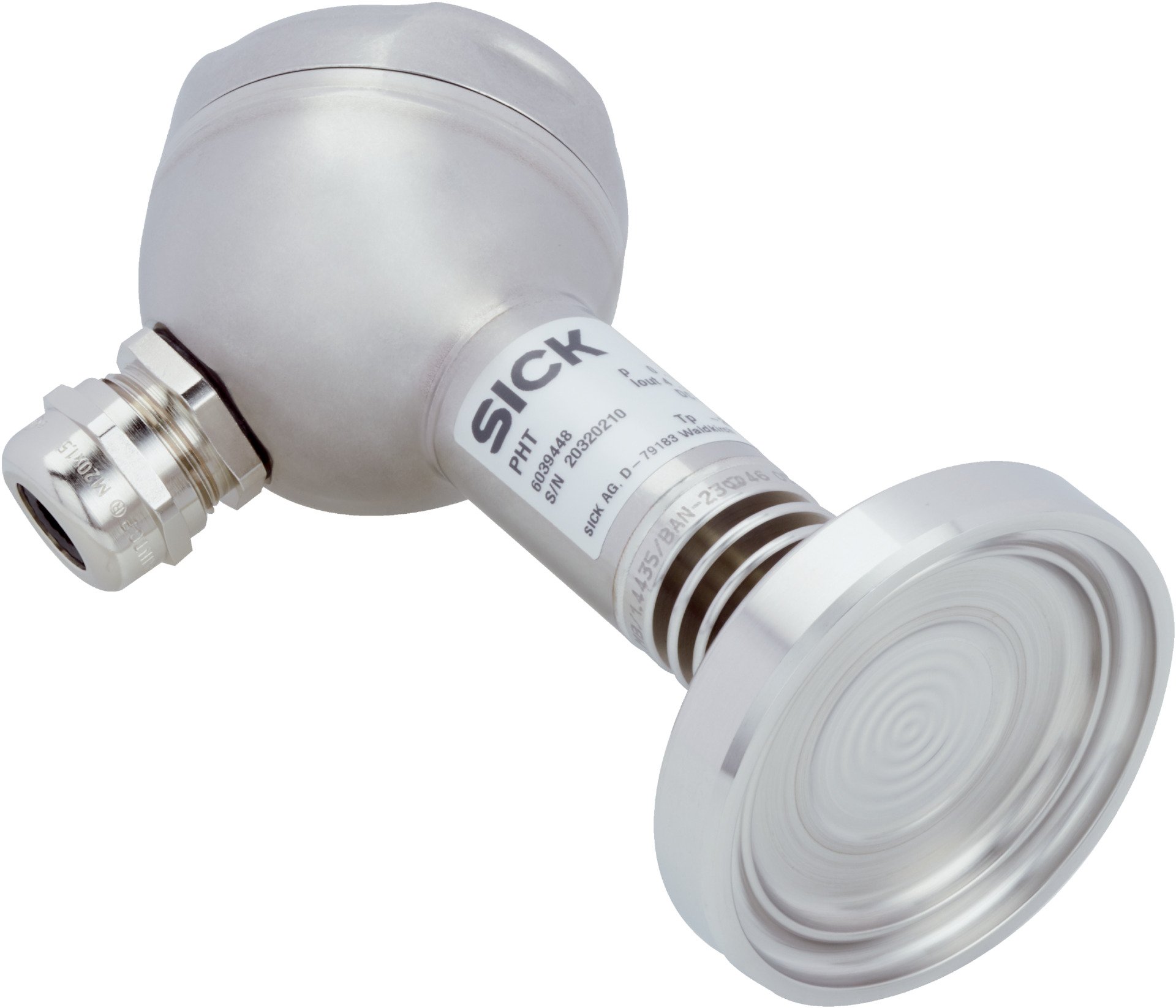

Pressure Transmitter PHT-RB1X0S650S0ALS0Z | 0-1 Bar Gauge Pressure | IP65 Rated | High Accuracy | by SICK
The Pressure Transmitter PHT-RB1X0S650S0ALS0Z measures gauge pressure from 0 to 1 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP65 enclosure rating, it ensures durability in industrial environments. Designed for precise pressure monitoring, it features a fast response time and electrical safety protections, making it perfect for food industry applications and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: DIN 11864-1 DN 50 form A coupling with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 1 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 50 form A with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 for dust and water protection
- High accuracy up to ±0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% drift per year
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor devices and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 2-wire 4-20 mA output
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB1X0S650S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
