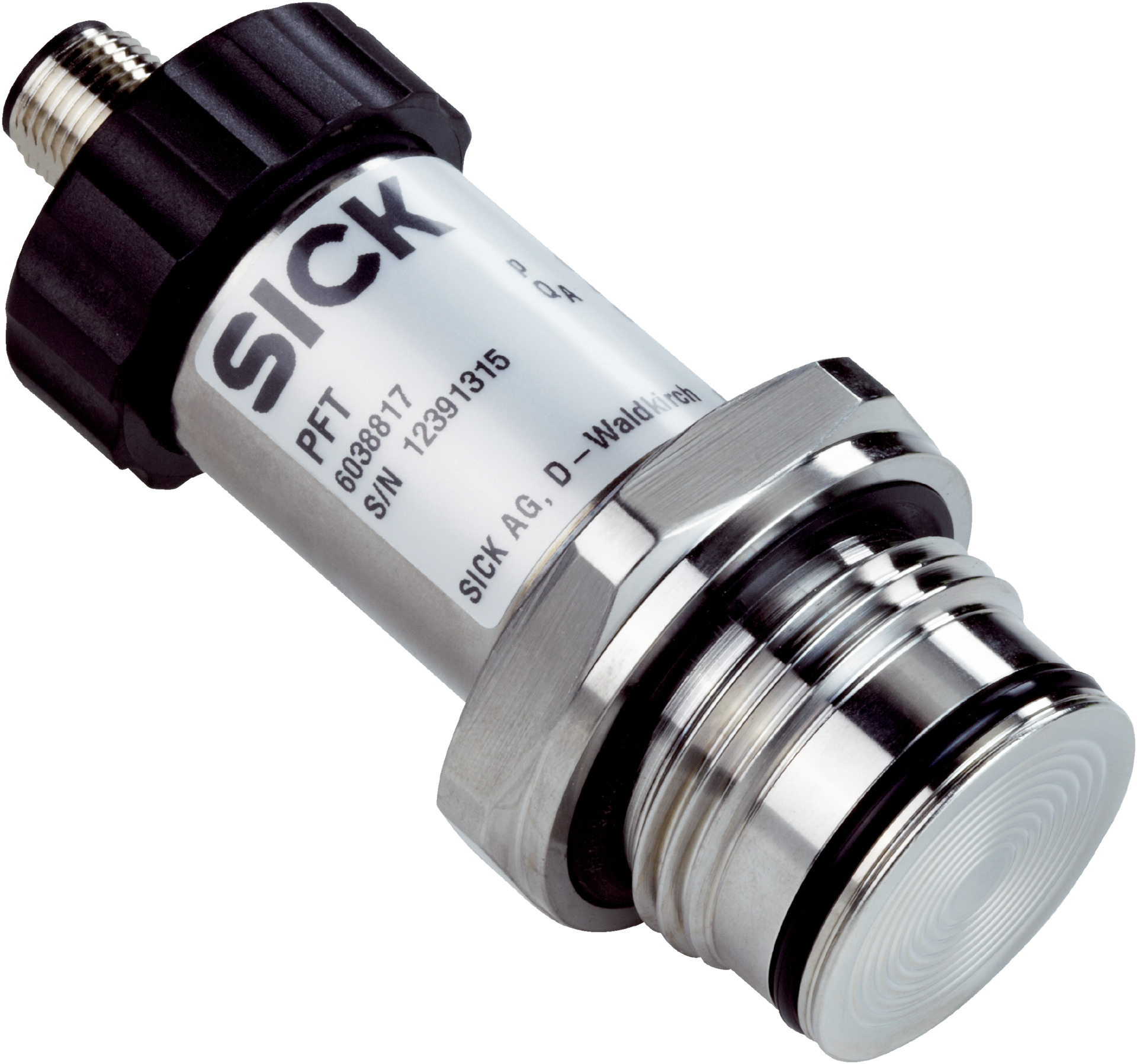

Pressure Transmitter | 0-1 Bar Gauge Pressure | IP67 Rated | Fast Response Time | by SICK
The Pressure Transmitter is designed for precise gauge pressure measurement in liquid and gaseous media, with a measuring range of 0 to 1 bar. Ideal for industrial process control and monitoring, it features a durable stainless steel construction and an IP67 enclosure rating, ensuring reliability in harsh environments. With a fast response time of ≤ 1 ms and built-in electrical safety features, this sensor is perfect for hydraulic and pneumatic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 1 bar
- Process temperature: -30 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 10 V) / 0.02 A [Ohm]), 0 V to 5 V, 3-wire (RA > 5 kOhm), 0 V to 10 V, 3-wire (RA > 10 kOhm)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G 1 B flush-mounted
- Wetted parts: Flush-mounted membrane stainless steel 316Ti, seals NBR
- Internal transmission fluid: Synthetic oil
- Pressure port: Front-flush membrane
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5% of span
- Non-linearity: ≤ ± 0.2% of span
- Non-repeatability: ≤ ± 0.1% of span
- Response time: ≤ 1 ms
- Long-term drift: ≤ ± 0.2% of span per year
- Ambient temperature operation: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 1000 g IEC 60068-2-27
- Vibration load: 20 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Measuring range: 0 bar to 1 bar
- Pressure type: Gauge pressure
- Output signal: 4 mA to 20 mA, 2-wire
- Process temperature range: -30 °C to +100 °C
- Flush-mounted membrane made of stainless steel 316Ti
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating: IP67
- High accuracy: ≤ ± 0.5% of span
- Fast response time: ≤ 1 ms
- Long service life with minimum 10 million load cycles
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Hydraulic and pneumatic systems
- Environmental and laboratory pressure measurements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

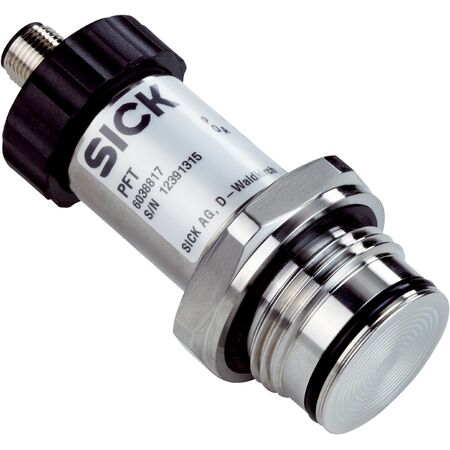

The SICK PFT-FRB1X0SF1OSSAMSSZ pressure sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise gauge pressure measurement.
