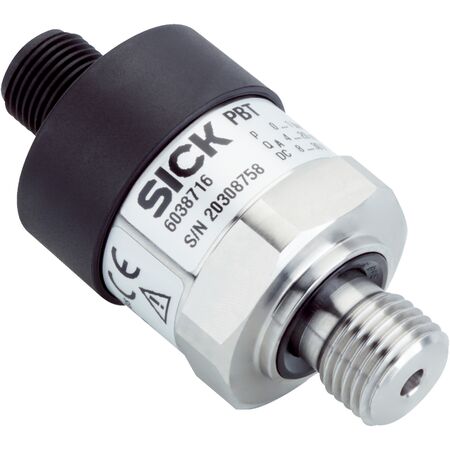

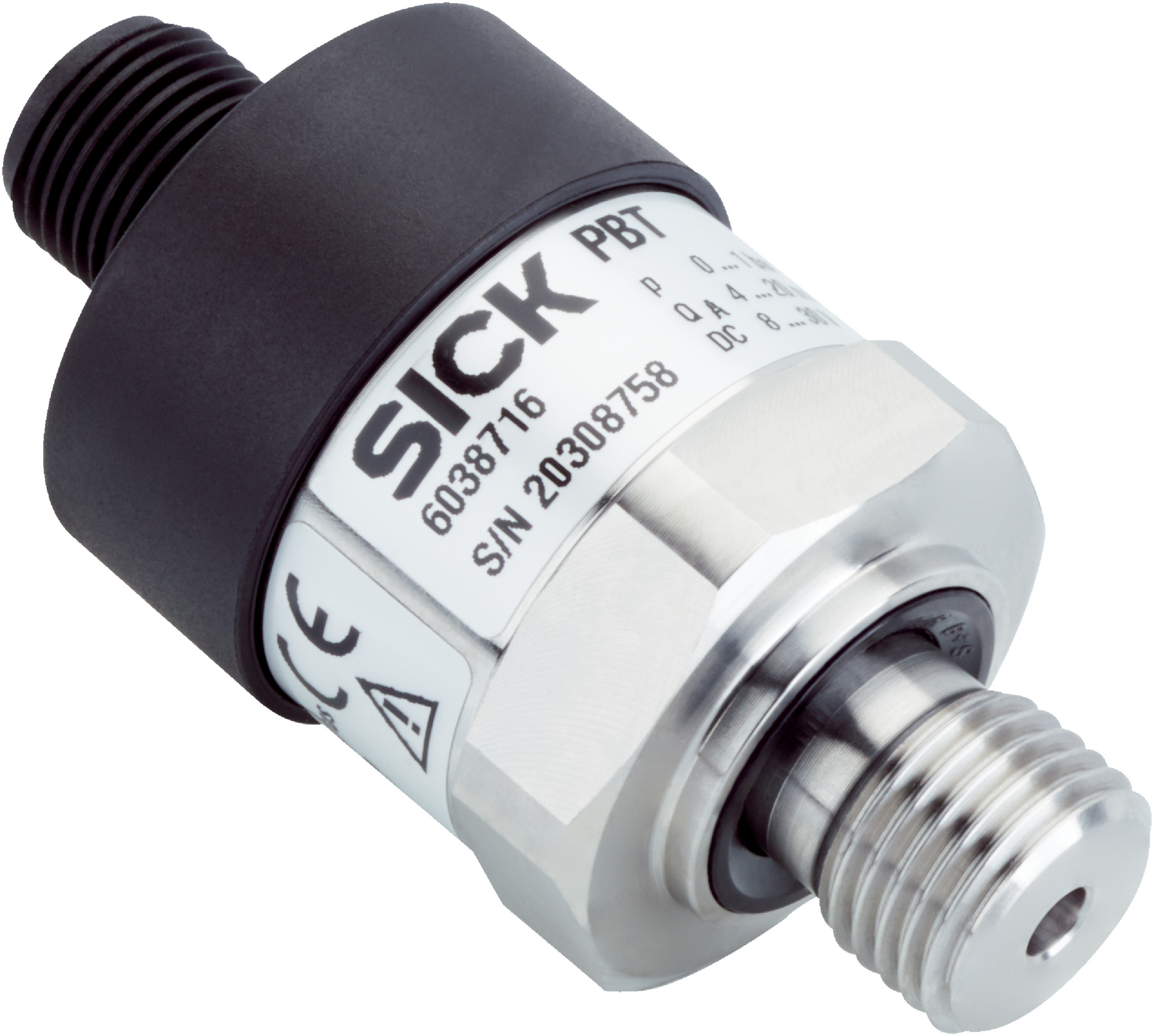

Pressure Transmitter PBT-RB1X0SG4SS0VMC0Z | 0-1 Bar Gauge Pressure | IP67 Rated | by SICK
The PBT-RB1X0SG4SS0VMC0Z Pressure Transmitter measures gauge pressure from 0 to 1 bar, making it ideal for industrial process control and precise pressure monitoring. With a robust stainless steel housing and IP67 rating, it ensures durability in harsh environments, while offering fast response times and high accuracy for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 70mm x 100mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 bar to 1 bar
- Output signal options: 0 V ... 10 V, 3-wire
- Process connection: G ¼ B (EN 837) with stainless steel 316L wetted parts
- High accuracy with ≤ ±1% of span including non-linearity and hysteresis
- Fast response time under 4 ms
- Robust stainless steel housing with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Environments with temperatures from 0°C to 80°C
- Applications requiring IP67 rated sensors for protection against dust and water
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with max 25 mA signal current
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PBT-RB1X0SG4SS0VMC0Z Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring accurate pressure measurement.
