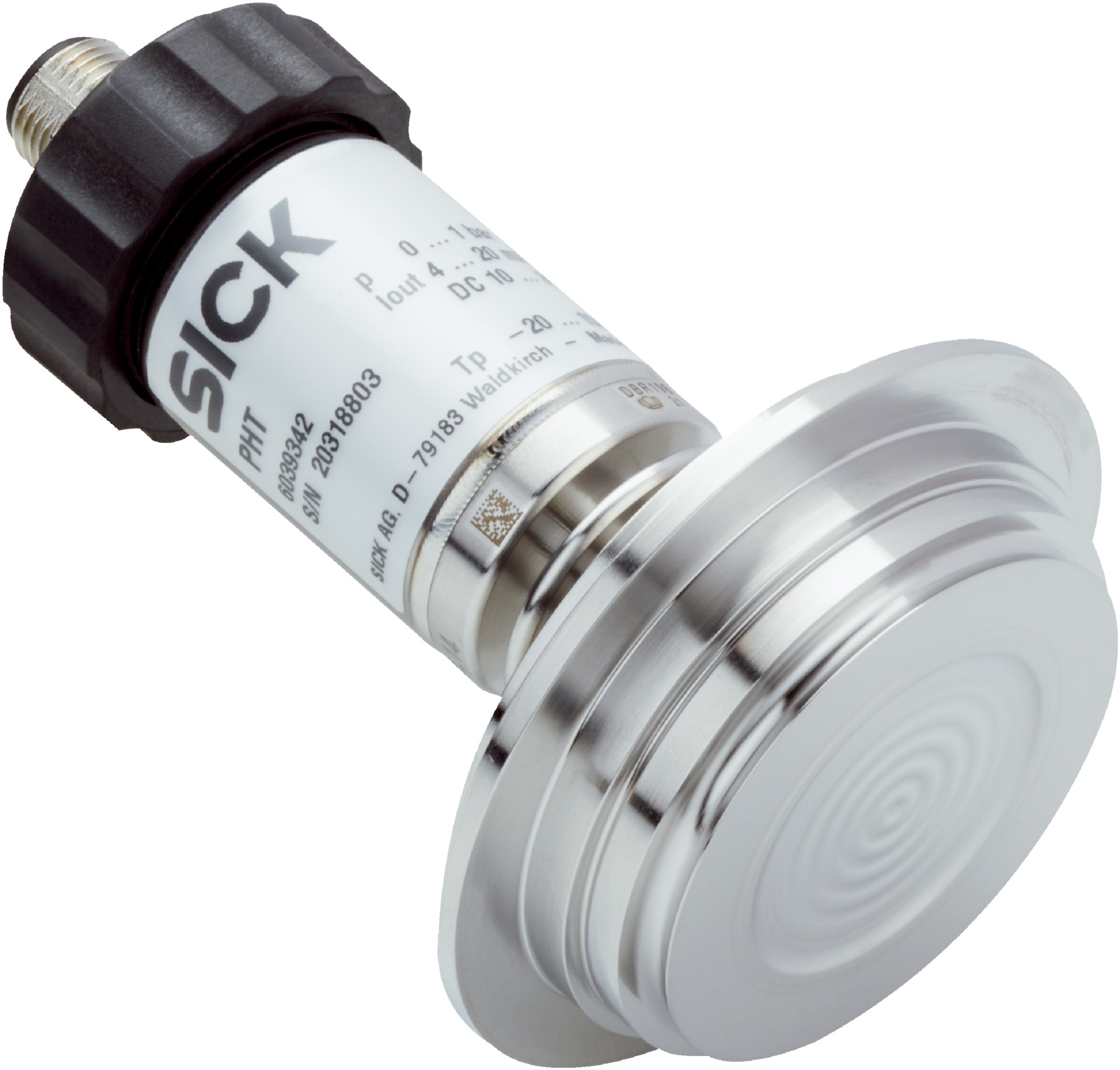

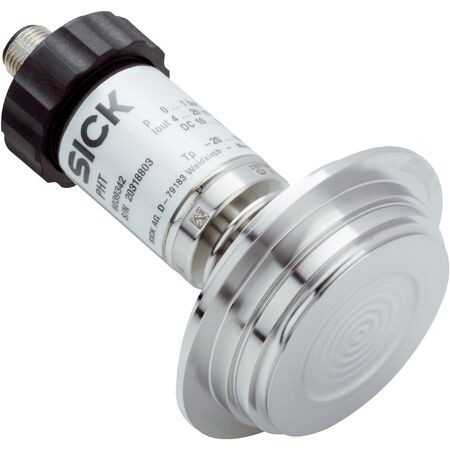

Pressure Transmitter PHT-RB1X0SVF0S0AMS0Z | 0-1 Bar Gauge Pressure | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB1X0SVF0S0AMS0Z measures gauge pressure from 0 to 1 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 rating, it ensures durability and reliability in industrial applications. Designed for precise monitoring, it features a fast response time of ≤ 10 ms and high accuracy of ≤ ± 0.5 % of span, perfect for food industry applications and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Varivent connection type F
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span
- Long-term drift: ≤ 0.2 % of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 100mm x 30mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 1 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing and 316L stainless steel wetted parts
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5 % of span, optional 0.25 %
- Long-term stability with ≤ 0.2 % drift per year
- M12 round connector, 4-pin connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor devices and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 10 V DC to 30 V DC supply voltage
- FDA approved synthetic oil internal fluid suitable for food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB1X0SVF0S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
