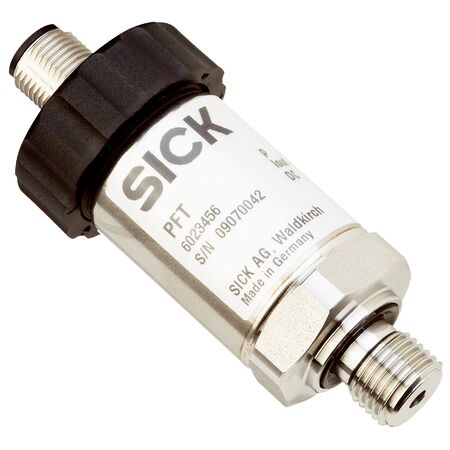

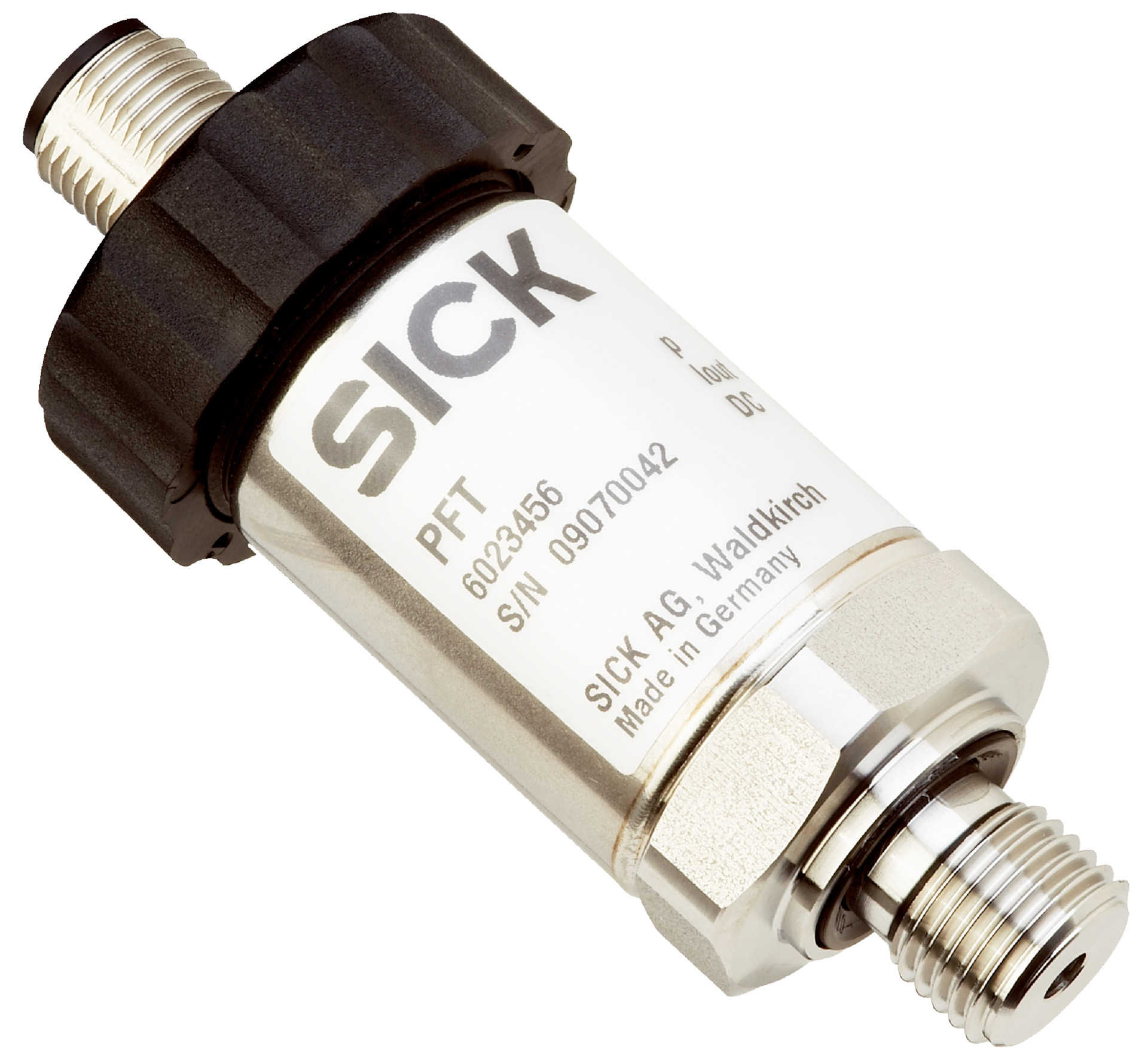

Pressure Transmitter PFT-SRB010SGDSEAALSSZ | 0-10 Bar Gauge Pressure | IP65 Rated | Stainless Steel | by SICK
The Pressure Transmitter PFT-SRB010SGDSEAALSSZ measures gauge pressure from 0 to 10 bar, making it ideal for industrial process control of liquid and gaseous media. With a robust stainless steel construction and IP65 rating, it ensures durability and protection against dust and water. Designed for high accuracy and fast response time, this sensor is perfect for automation systems requiring precise pressure measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 80mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Suitable for liquid and gaseous media
- Process temperature range from –40 °C to +125 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 316Ti wetted parts and 1.4571 housing for durability
- IP65 rated enclosure for protection against dust and water jets
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy ≤ ±0.5% of span with low non-linearity and non-repeatability
- Fast response time ≤ 1 ms
- Long service life with minimum 10 million load cycles
- Complies with pressure equipment directive 2014/68/EU and EMC directive
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct process connection and electrical wiring according to safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with 2-wire 4-20 mA output
- High reliability minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PFT-SRB010SGDSEAALSSZ pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
