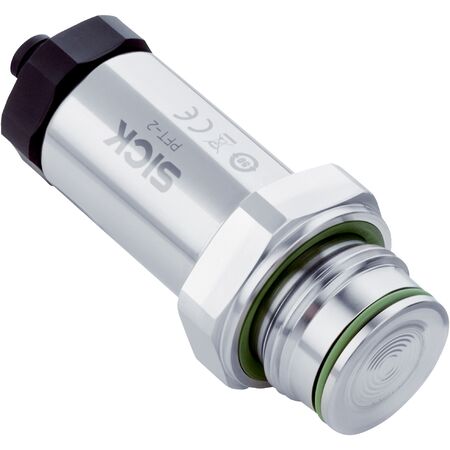

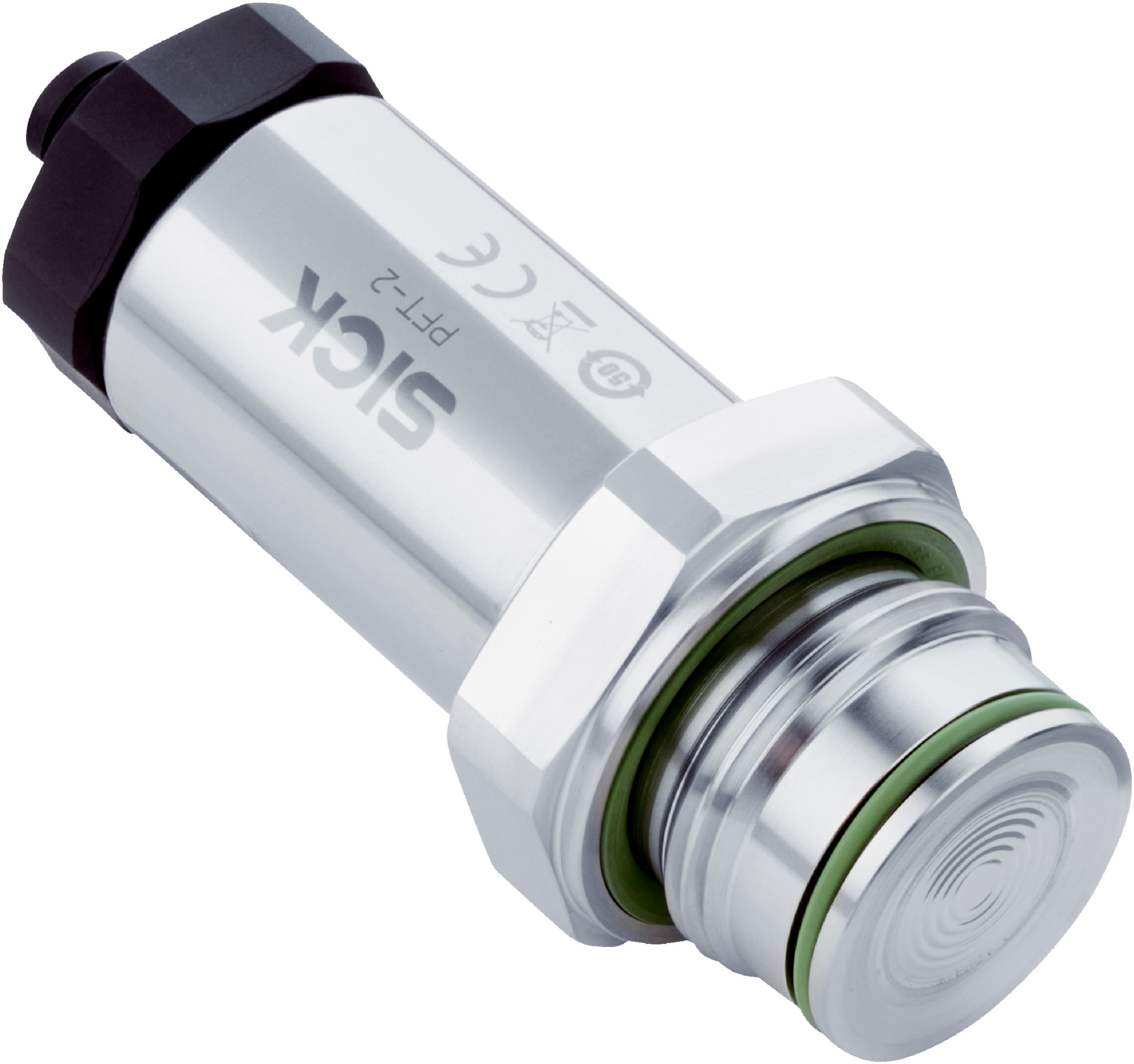

Pressure Transmitter PFT-2C5GM | 0-10 Bar Gauge Pressure | IP66 & IP67 Rated | by SICK
The PFT-2C5GM Pressure Transmitter measures gauge pressure from 0 to 10 bar, making it ideal for industrial process control and monitoring. With a robust stainless steel housing and an accuracy of ≤ ±0.5% of span, this sensor is built for reliability in harsh environments, ensuring long service life and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Medium: Liquid and gaseous
- Pressure type: Gauge pressure
- Process temperature range: -40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 12 V DC to 35 V DC
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time: Approx. 15 ms
- Long-term drift: <0.15% within nominal measuring range
- Operating ambient temperature: -40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 10 bar (0 to 145 psi)
- Suitable for liquid and gaseous media
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for harsh environments
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- 2-wire output signal 4 mA to 20 mA
- Wide operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor wiring and industrial safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control and monitoring
- Hydraulic and pneumatic systems
- Automation and manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PFT-2C5GM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring reliable gauge pressure measurement.
