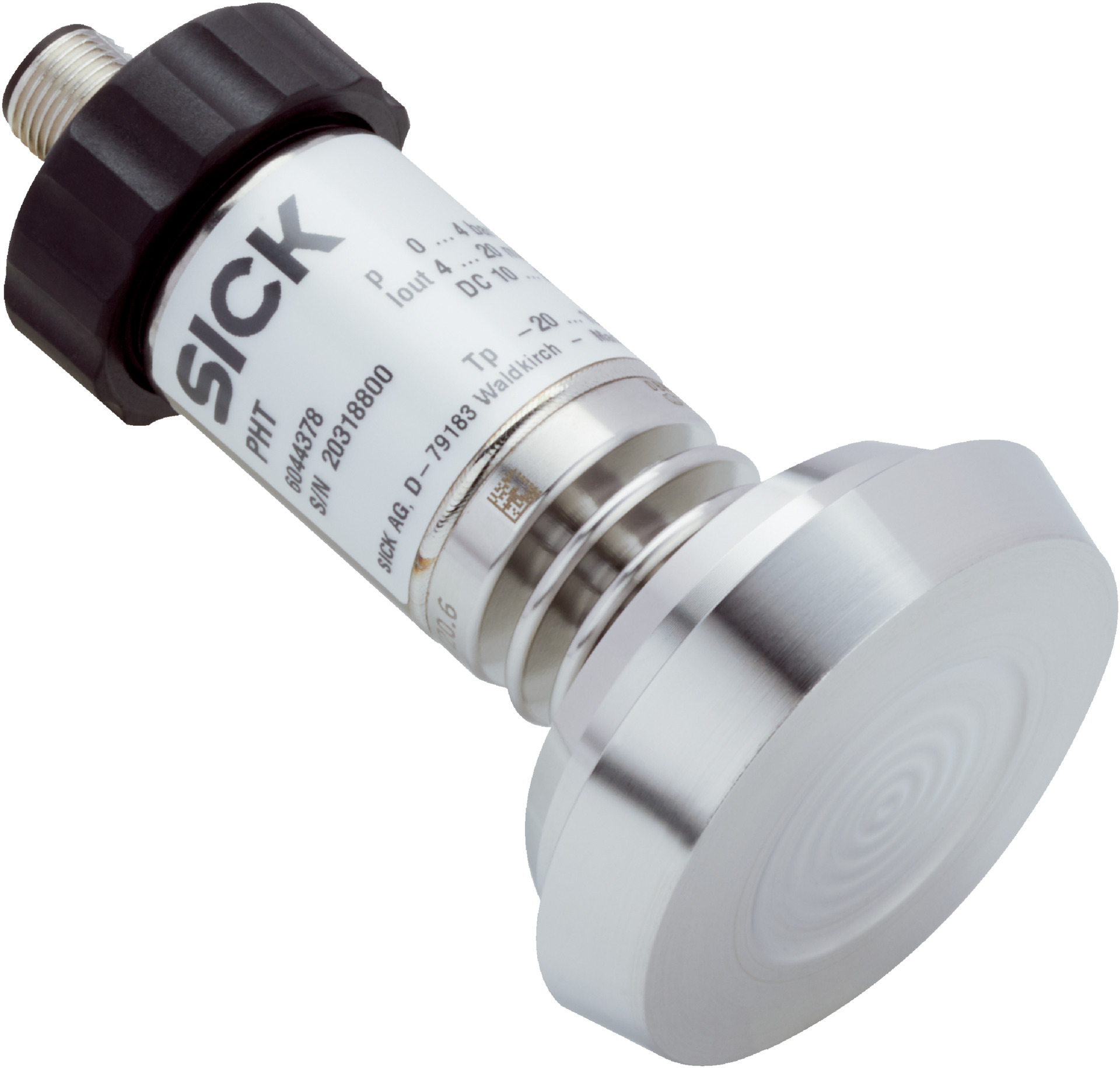

Pressure Transmitter PHT-RB010E550S0AFT0Z | 0-10 Bar Gauge Pressure | IP67 Rated | High Accuracy | by SICK
The Pressure Transmitter PHT-RB010E550S0AFT0Z measures gauge pressure from 0 to 10 bar, making it ideal for industrial process control and food industry applications. With a robust stainless steel housing and an IP67 rating, it ensures durability and reliability in demanding environments. Its fast response time and high accuracy of ± 0.25% of span make it a top choice for precise pressure monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 10 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.25 % of span
- Non-linearity: ≤ ± 0.2 % of span (BFSL)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2 % span drift per year
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.25 % of span
- MTTF of 403 years indicating high reliability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety in measurement, control, and laboratory use
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
- Low power consumption with 4-20 mA output signal reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB010E550S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
