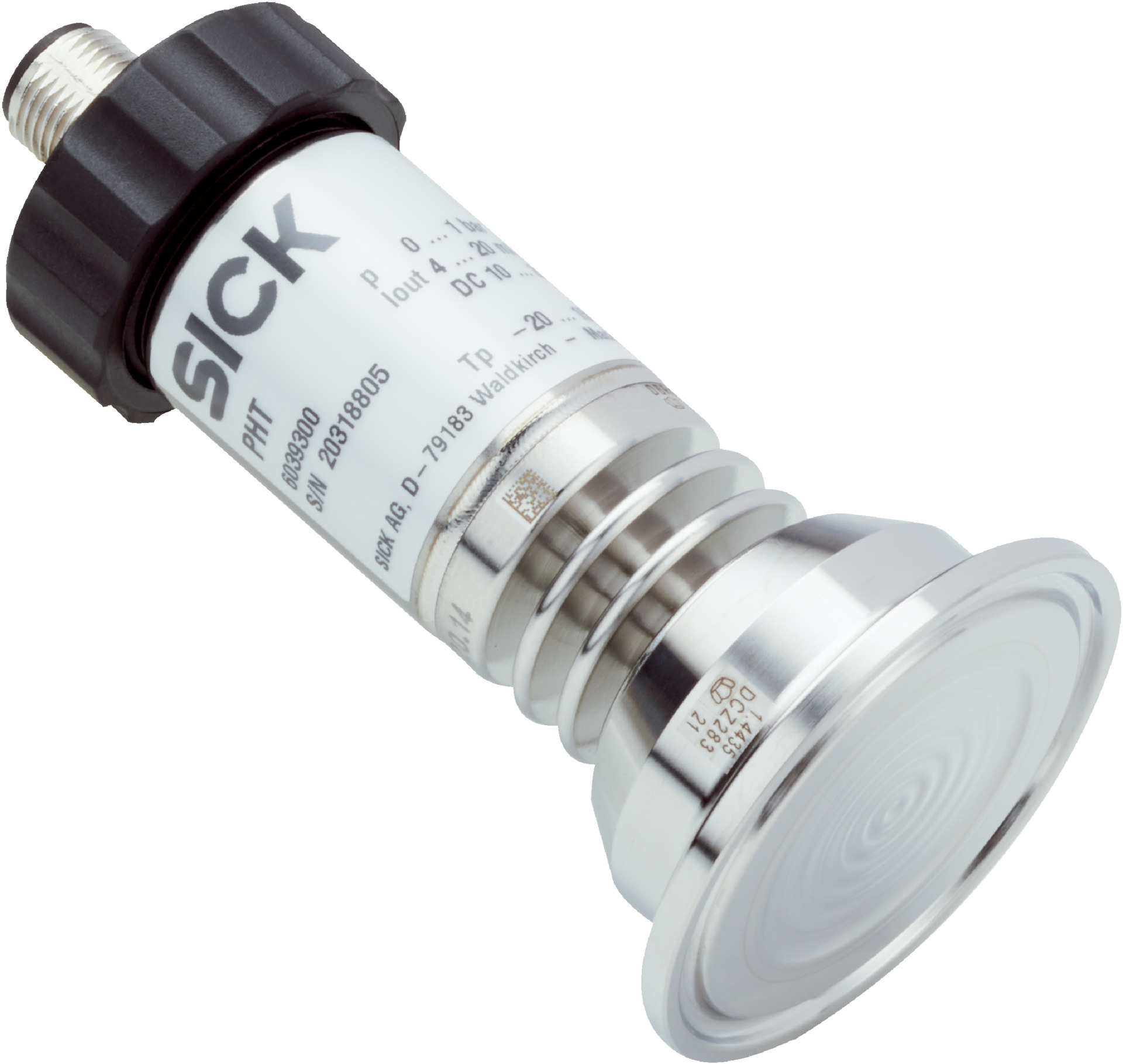

Pressure Transmitter PHT-RB010SD30S0AMS0Z | 0-10 Bar Gauge Pressure | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB010SD30S0AMS0Z measures gauge pressure from 0 to 10 bar, making it ideal for industrial process control and monitoring in both liquid and gaseous media. With a robust stainless steel housing and an IP67 rating, it ensures durability and reliability in demanding environments, while its fast response time of ≤ 10 ms guarantees accurate readings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 10 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ±0.2 % of span
- Non-repeatability: ≤ ±0.1 % of span
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 32676) DN 32 process connection
- Stainless steel 1.4571 housing and 316L stainless steel wetted parts
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % span drift per year
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food and beverage industry applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- Complies with RoHS and food contact material standards ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB010SD30S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food industry pressure measurement applications.
