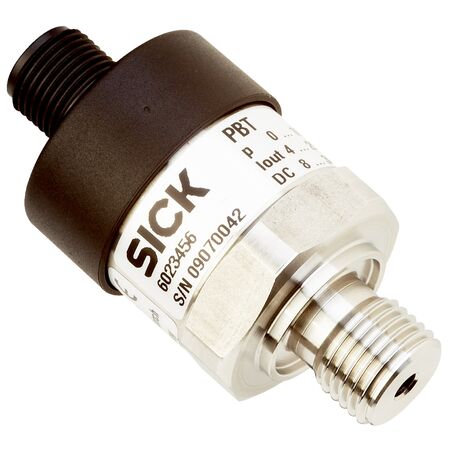

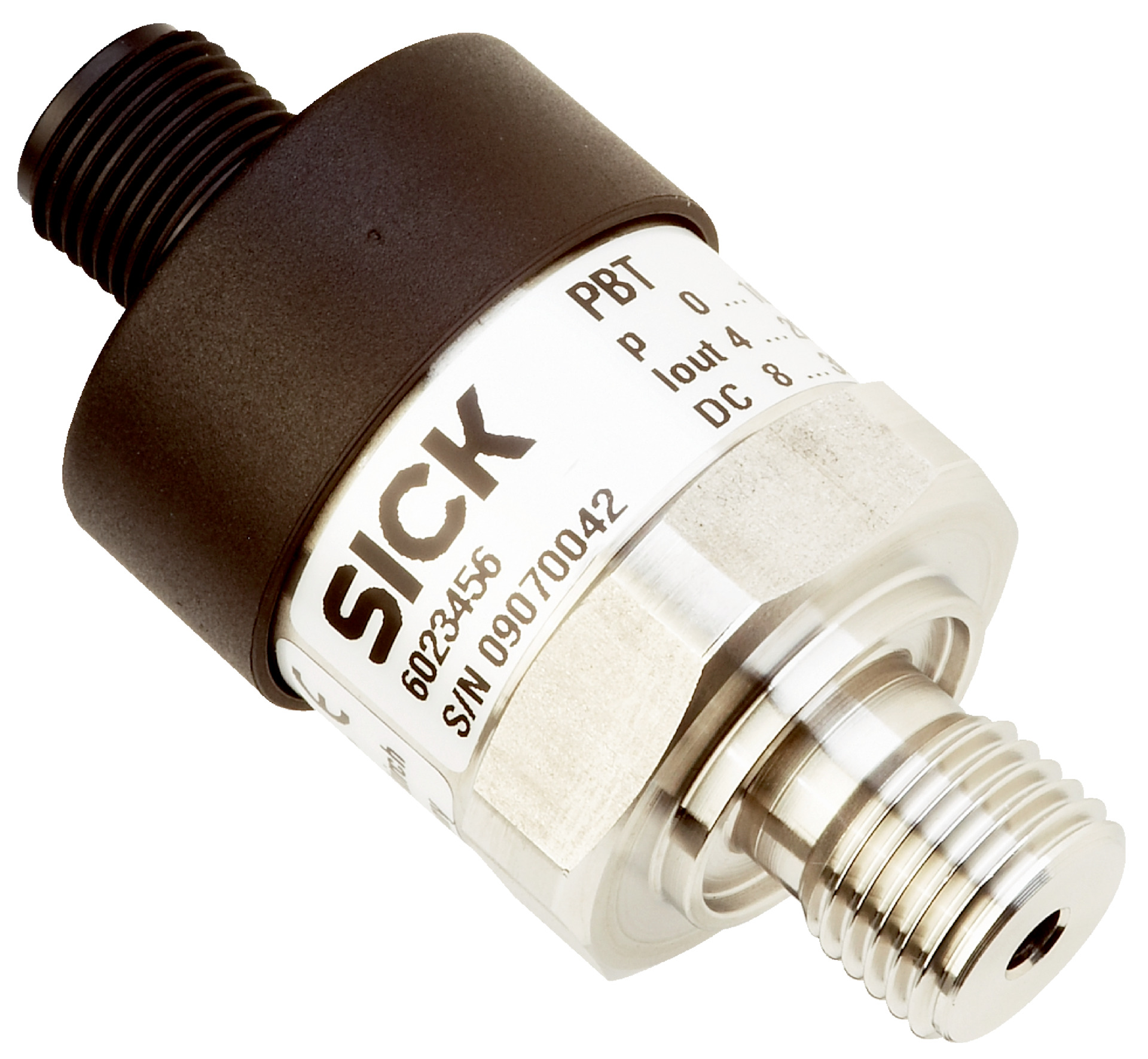

Pressure Transmitter PBT-RB100SN1SS0AMA0Z | 0-100 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PBT-RB100SN1SS0AMA0Z measures gauge pressure from 0 to 100 bar, making it ideal for industrial process control and monitoring. With a fast response time under 4 ms and high accuracy of ≤ ±1% span, this sensor is perfect for hydraulic and pneumatic systems. Its durable stainless steel 316L construction ensures longevity, while the IP67 rating provides protection against dust and water, making it suitable for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 100 bar gauge pressure
- Process temperature: 0 °C to +80 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Process connection: ¼'' NPT stainless steel 316L
- Enclosure rating: IP67
- Response time: < 4 ms
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
- Communication interface: None
- Weight: Approx. 80 g
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 100 bar
- Suitable for liquid and gaseous media
- Stainless steel 316L wetted parts and housing for durability
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Fast response time under 4 ms
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Operating temperature range 0 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Hydraulic and pneumatic systems
- Automation and machinery requiring precise pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency
- High accuracy reduces process waste and improves system efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK PBT-RB100SN1SS0AMA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
