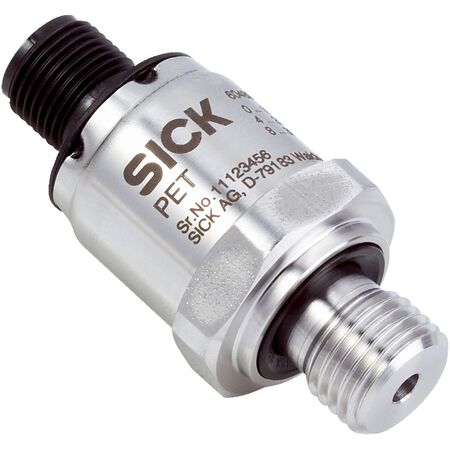

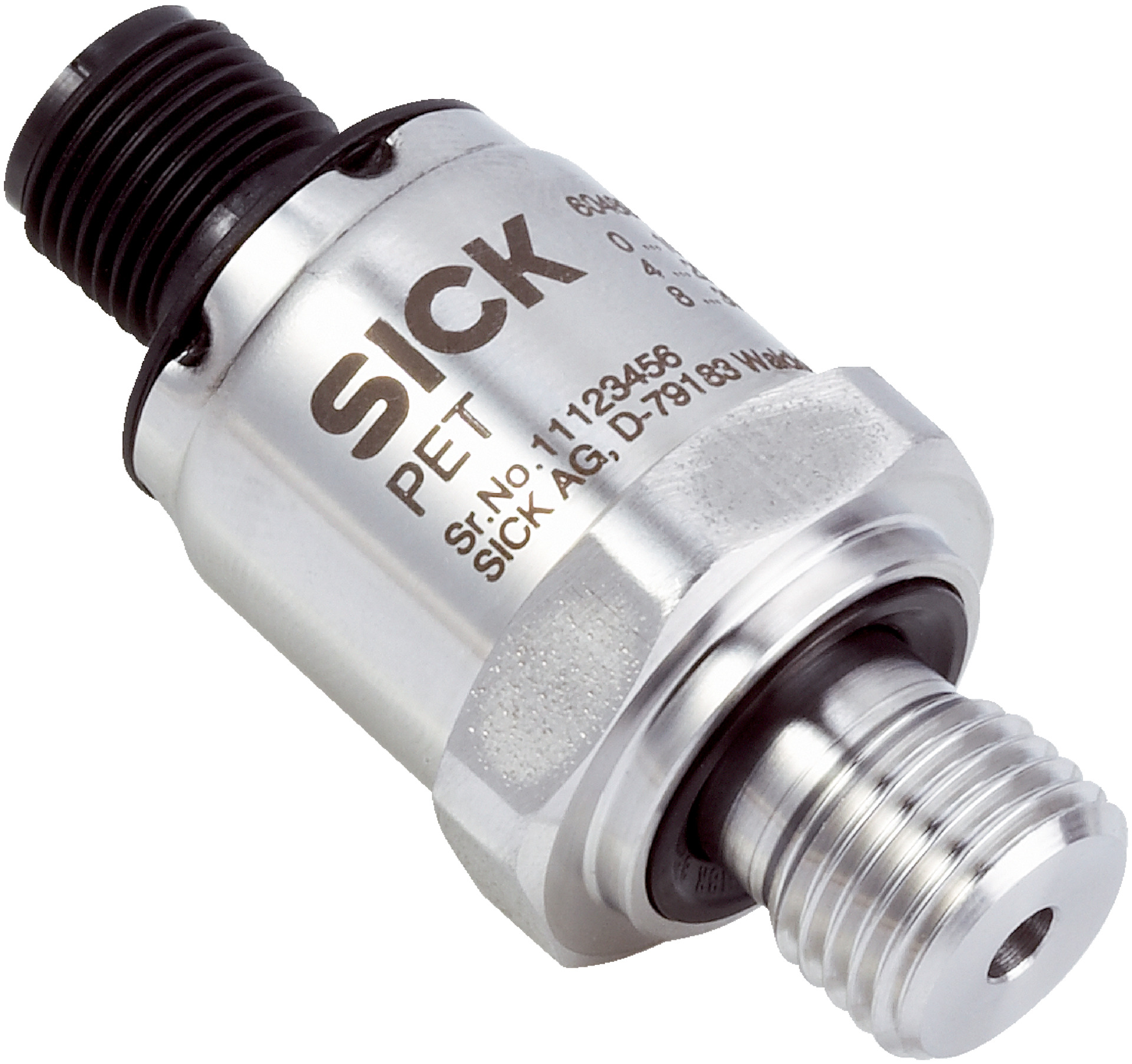

Pressure Transmitter 0-100 psi | Gauge Pressure Sensor | 4-20mA Output | IP67 Rated | by SICK
The Pressure Transmitter 0-100 psi is designed for precise gauge pressure measurement in fluids, featuring a robust stainless steel construction and an output signal of 4 mA to 20 mA. With a wide process temperature range from -30 °C to +100 °C and an IP67 rating for dust and water protection, this sensor is perfect for industrial applications, ensuring reliability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Pressure type: Gauge pressure
- Measuring range: 0 psi to 100 psi
- Overpressure safety: 2-fold standard, 3-fold on request
- Process temperature: -30 °C to +100 °C
- Maximum ohmic load RA: = (L+ - 7 V) / 0.02 A
- Output signal: 4 mA to 20 mA, 2-wire
- Initialization time: 15 ms
- Process connection: ¼'' NPT
- Wetted parts: 316L stainless steel and stainless steel 13-8 PH
- Housing material: Stainless steel 316L, PBT GF30
- Connection type: M12 round connector, 4-pin
- Supply voltage: 8 V DC to 30 V DC
- Power consumption: 25 mA max
- Enclosure rating: IP67 (IEC 60529)
- MTTF: > 100 years
- Pressure peak dampening: Integrated pressure port 0.6 mm or 0.3 mm
- Protection class: III
- Isolation voltage: 750 V DC
- Overvoltage protection: 36 V DC
- Short-circuit protection: Output Q A towards M
- Reverse polarity protection: L+ towards M
- Non-linearity: ≤ ± 0.6 % of span (BFSL)
- Accuracy: ≤ ± 1.2 % of span at room temperature
- Adjustment accuracy of zero signal: ≤ ± 0.7 % of span
- Response time: < 2 ms
- Long-term drift/one-year stability: ≤ ± 0.3 % of span
- Rated temperature range: 0 °C to +80 °C
- Service life: Minimum 10 million load cycles
- Temperature error: ≤ ± 1.5 % of span
- Reference conditions: According to IEC 61298-1
- Ambient temperature operation: -30 °C to +100 °C
- Storage temperature: -30 °C to +100 °C
- Shock load: 40 g (6 ms) IEC 60068-2-27
- Vibration load: 20 g (20 Hz to 2000 Hz, 120 min) IEC 60068-2-6
- Dimensions (H x L x W): 70mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures gauge pressure in fluids with a range of 0 to 100 psi
- Output signal: 4 mA to 20 mA, 2-wire
- High overpressure safety: 2-fold standard, 3-fold on request
- Process temperature range from -30 °C to +100 °C
- Stainless steel 316L and 13-8 PH stainless steel wetted parts
- IP67 rated enclosure for dust and water protection
- Short response time of less than 2 ms
- Long service life with minimum 10 million load cycles
- Protection features including overvoltage, short-circuit, and reverse polarity protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical wiring to ensure safety and compliance with local regulations.
Applications
- Industrial fluid pressure measurement
- Process control systems
- Hydraulic and pneumatic systems
- Automation and monitoring applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of 25 mA reduces energy usage
- High reliability minimizes replacement frequency and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PET-1RP100N10SAMA pressure sensor is available for immediate purchase, ideal for industrial fluid pressure monitoring and control applications.
