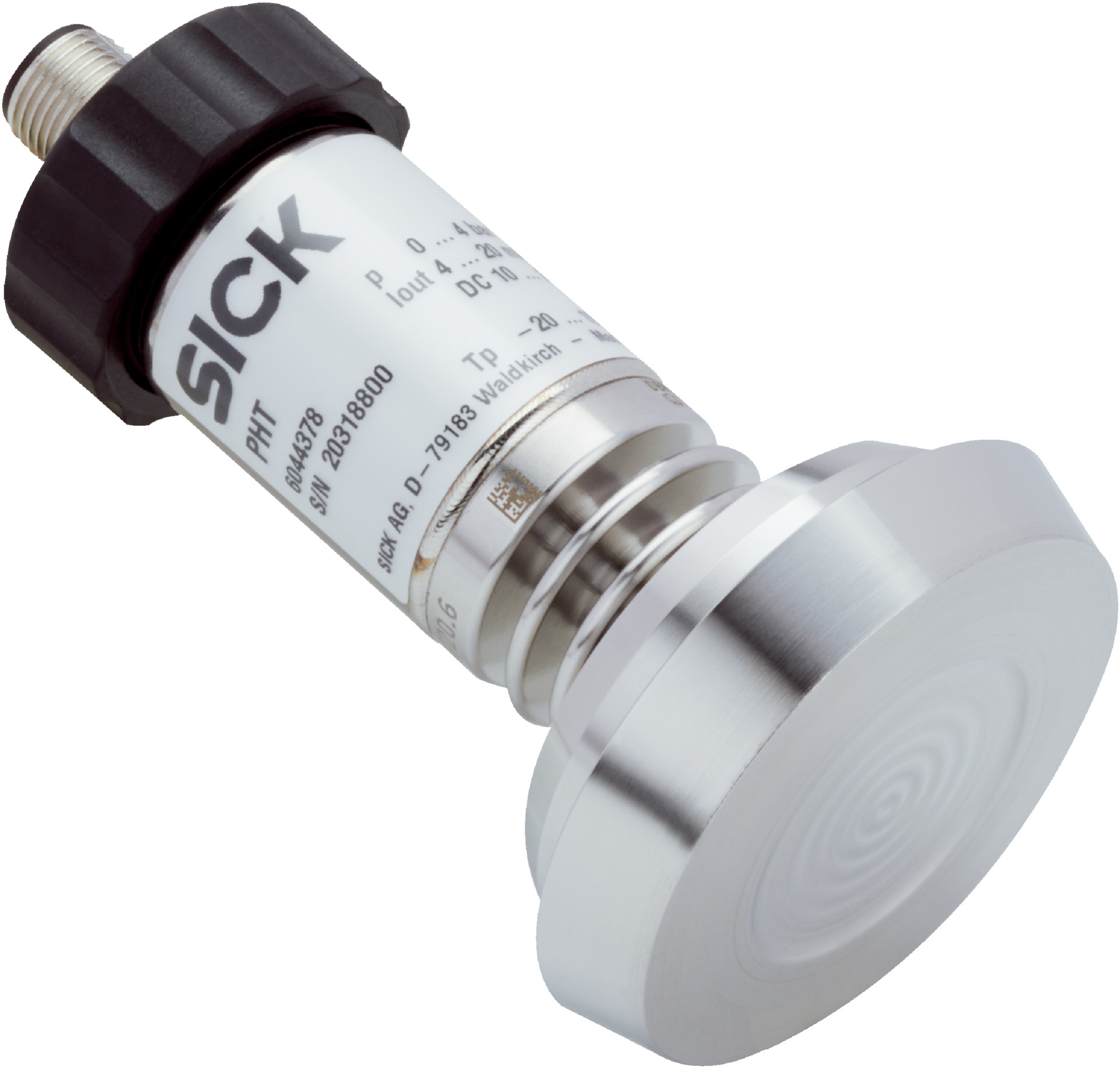

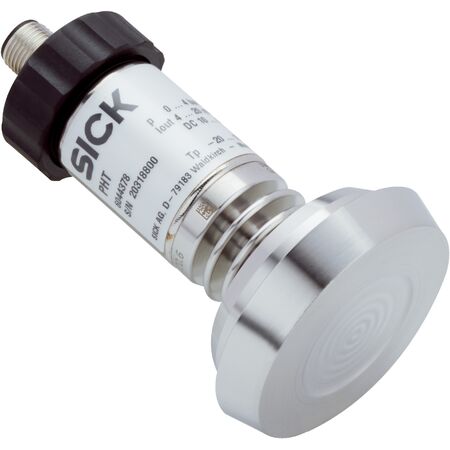

Pressure Transmitter PHT-RB016E520S0AMS0Z | 0-16 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB016E520S0AMS0Z measures gauge pressure from 0 to 16 bar, making it ideal for industrial process control of both liquid and gaseous media. With a robust stainless steel housing and IP67 rating, it ensures durability and protection against dust and water. Designed for high accuracy and fast response time, this sensor is perfect for hydraulic and pneumatic system pressure measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 16 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy with ≤ ±0.25 % of span
- Robust stainless steel housing and process connection
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2 % span drift per year
- Fast response time ≤ 10 ms
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing plants
- Hydraulic and pneumatic system pressure measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 2-wire 4-20 mA output
- FDA approved synthetic oil for safe use in food-related applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PHT-RB016E520S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications.
