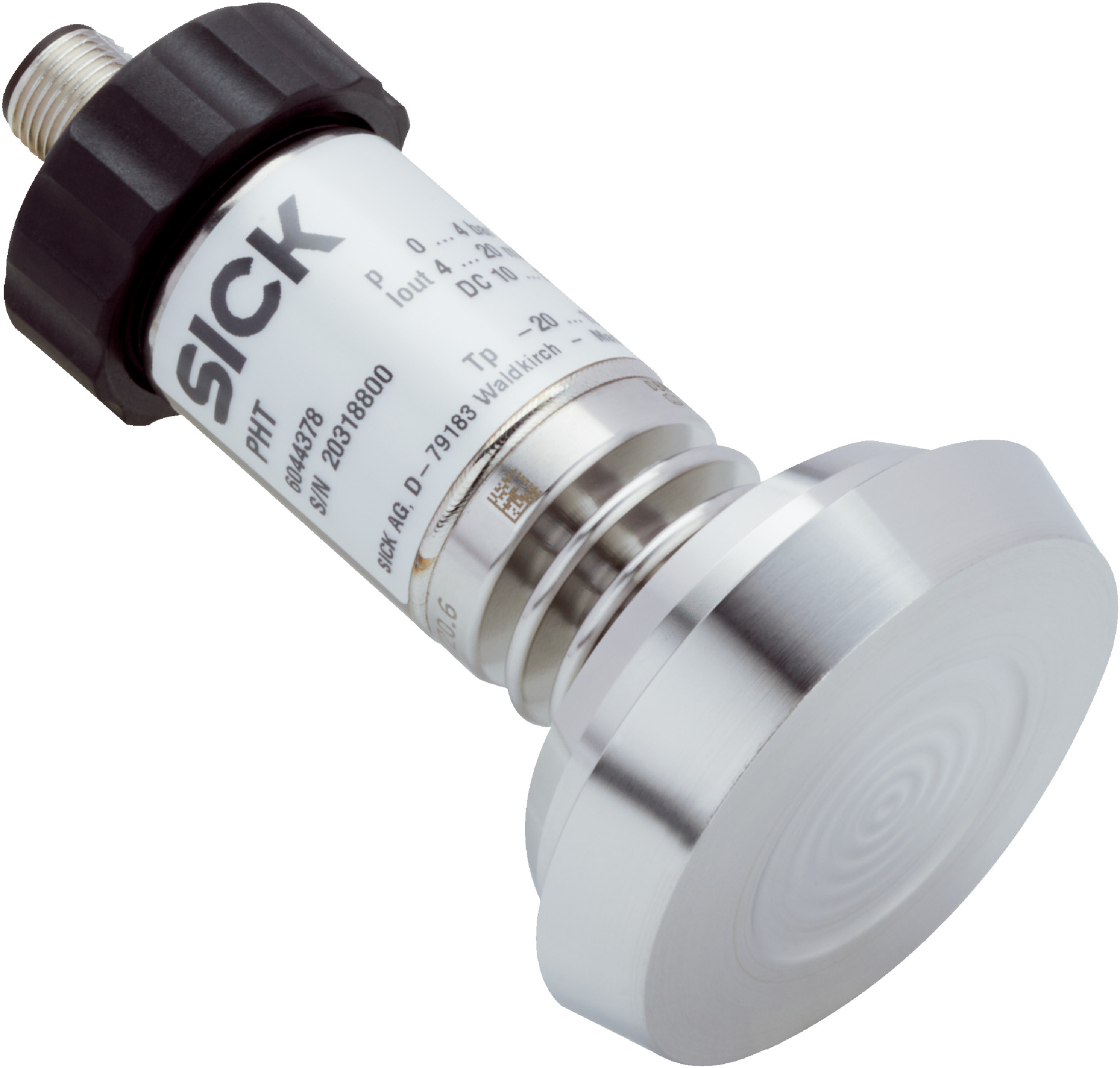

Pressure Transmitter PHT-RB2X5S550S0AMS0Z | 0-2.5 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB2X5S550S0AMS0Z measures gauge pressure from 0 to 2.5 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 rating, this sensor is built for harsh environments and industrial process control. Its fast response time and FDA-approved internal fluid ensure precise monitoring, perfect for food industry applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 2.5 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 2.5 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with 316L stainless steel wetted parts
- Conical coupling (DIN 11851) DN 50 with union nut
- M12 round connector, 4-pin connection
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved internal fluid ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB2X5S550S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
