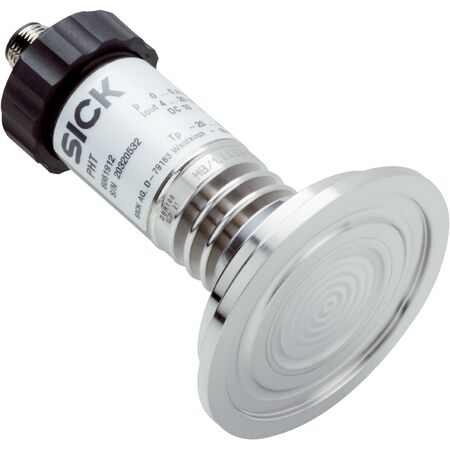

Pressure Transmitter PHT-RB2X5S840S0AMS0Z | 0-2.5 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB2X5S840S0AMS0Z measures gauge pressure from 0 to 2.5 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 rating, this sensor is perfect for industrial process control and food and beverage applications, ensuring high accuracy and long-term stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 2.5 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Flange DIN 11864-2 DN 40 form A
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span BFSL
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 80mm x 80mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 2.5 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Flange process connection DIN 11864-2 DN 40 form A
- Housing made of stainless steel 1.4571 with 316L stainless steel wetted parts
- M12 round connector, 4-pin connection type
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor mounting and electrical connections to ensure safety and accuracy.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB2X5S840S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
