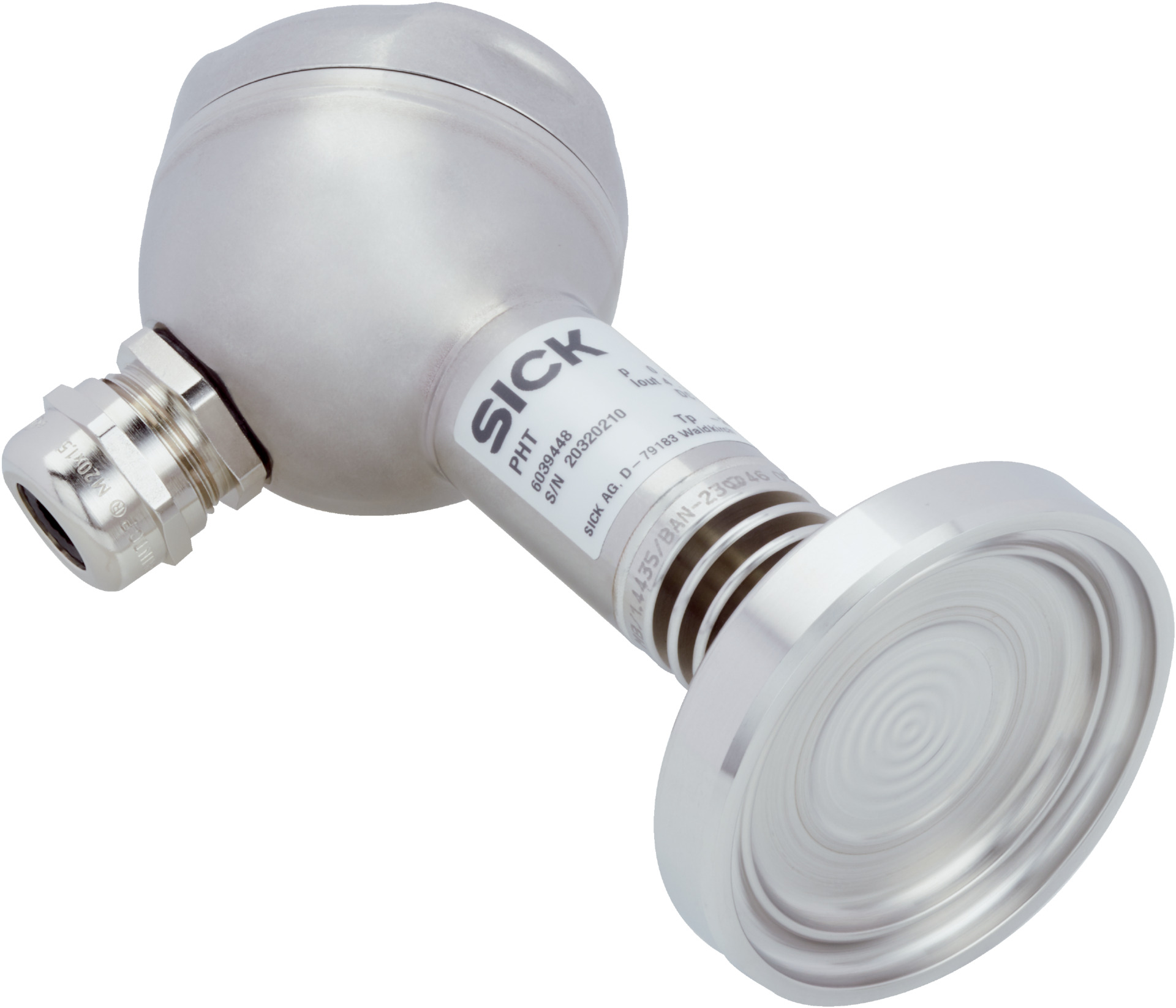

Pressure Transmitter PHT-RB025S640S0ALS0Z | 0-25 Bar Gauge Pressure | IP65 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB025S640S0ALS0Z measures gauge pressure from 0 to 25 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP65 rating, this sensor is built for industrial applications, ensuring reliable performance even in challenging environments. Its fast response time and high accuracy make it perfect for precise pressure monitoring in food industry applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: L-connector (DIN EN 175301-803 A)
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Dielectric strength: 500 V DC
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span (BFSL)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing and 316L stainless steel wetted parts
- IP65 rated enclosure for protection against dust and water jets
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2 % span drift per year
- Fast response time ≤ 10 ms
- High accuracy up to ± 0.25 % of span (optional)
- Test terminals for signal current metering without device disconnection
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- FDA approved internal fluid ensures safe use in food industry applications
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB025S640S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable gauge pressure measurement.
