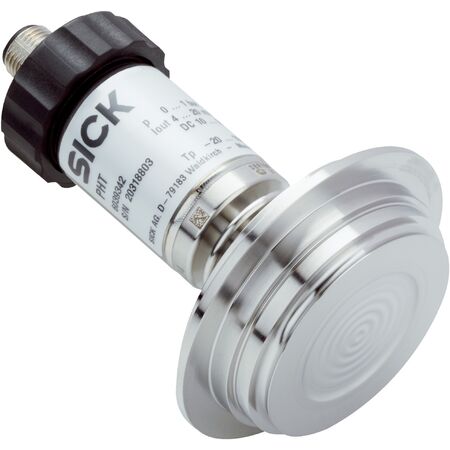

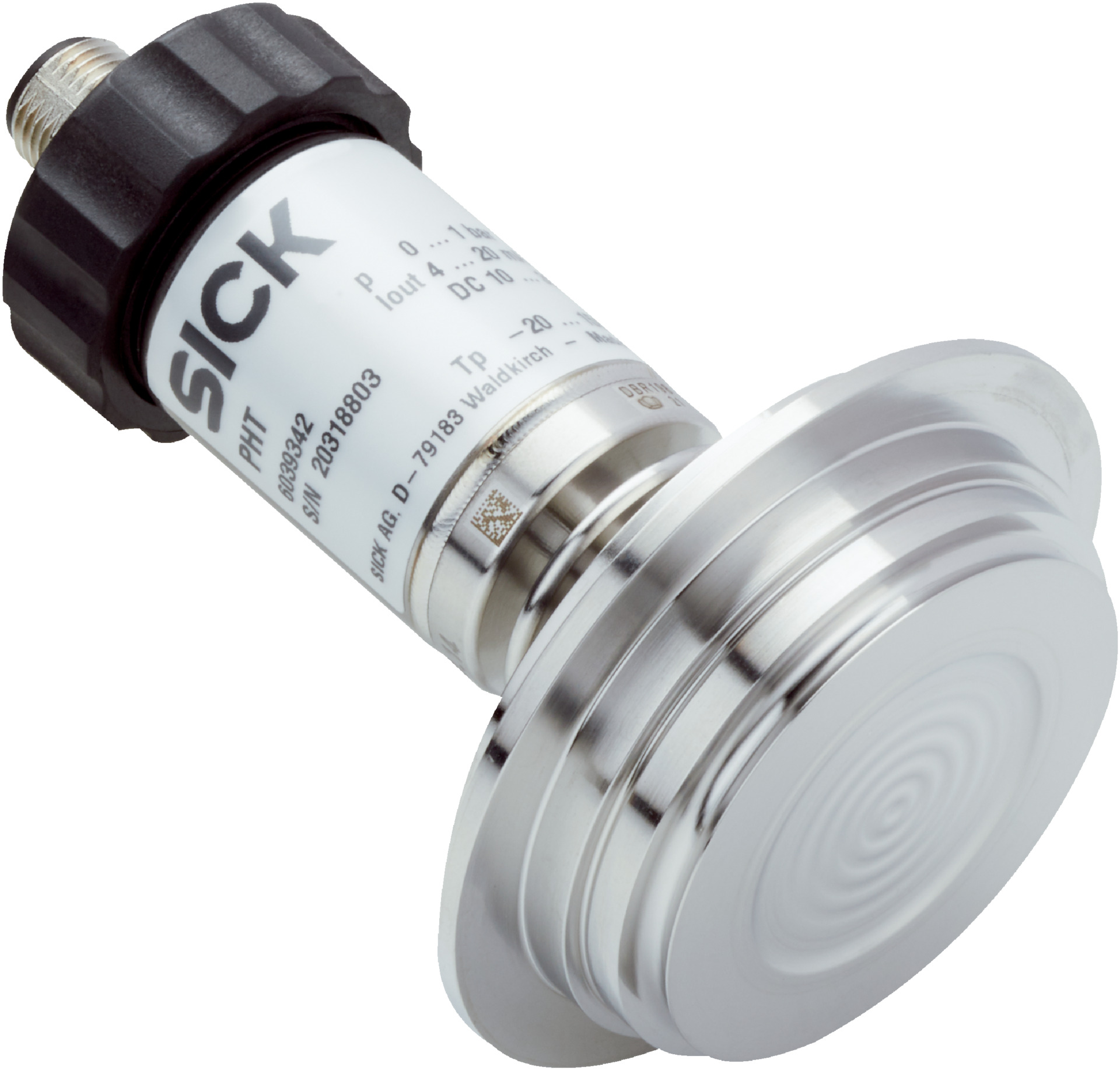

Pressure Transmitter PHT-RB025SVF0S0ALS0Z | 0-25 Bar Gauge Pressure | IP65 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB025SVF0S0ALS0Z measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control and monitoring. With a robust stainless steel housing and an IP65 rating, it’s perfect for harsh environments and suitable for both liquid and gaseous media. Enjoy high accuracy and fast response times, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Varivent connection type F
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Non-linearity: ≤ ± 0.2% of span (BFSL)
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing and 316L stainless steel wetted parts
- Overvoltage, short-circuit, and reverse polarity protection
- IP65 enclosure rating for dust and water resistance
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5% of span, optional 0.25%
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food and beverage industry due to FDA approved internal fluid
- Harsh environments requiring IP65 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB025SVF0S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
