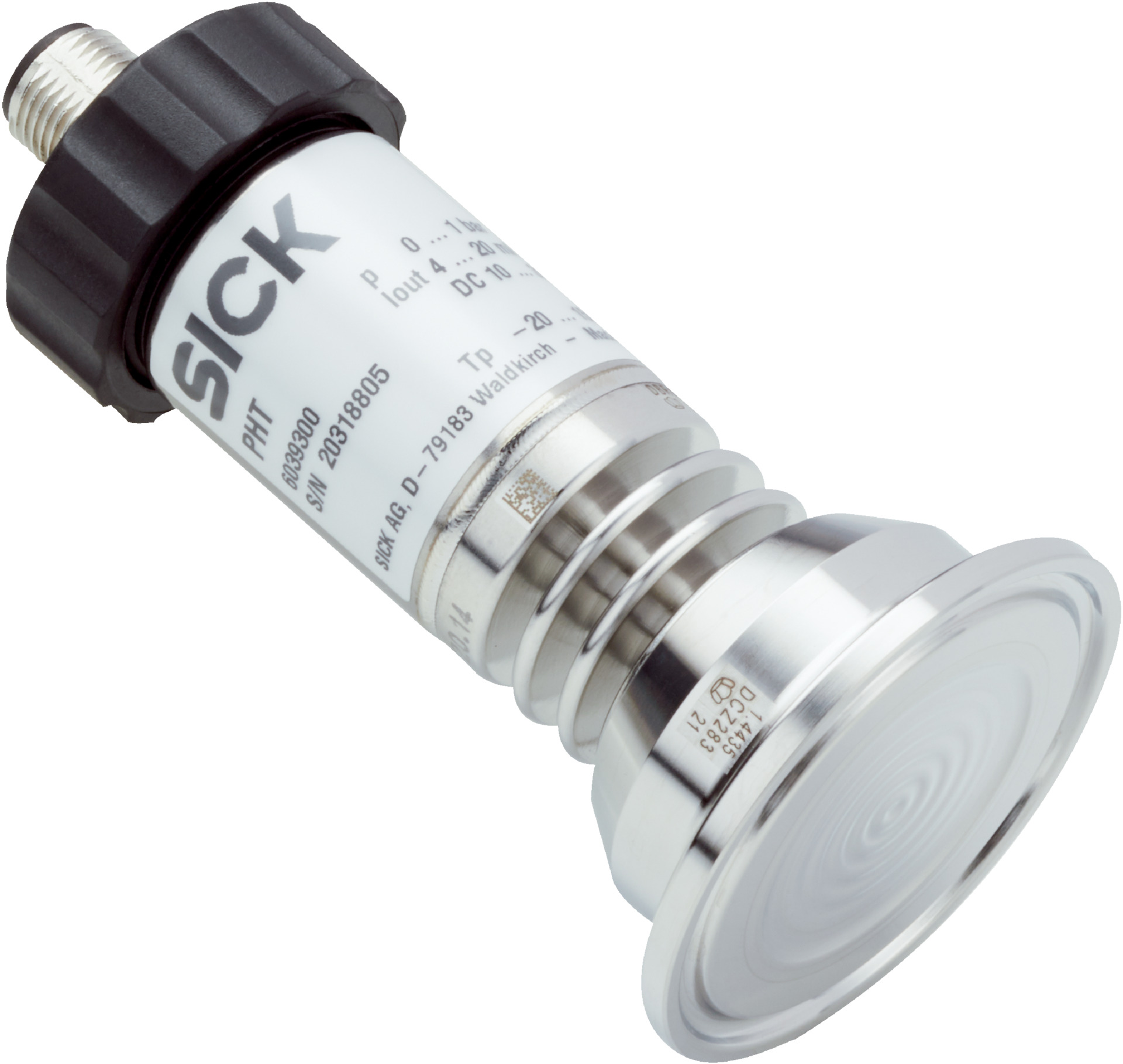

Pressure Transmitter PHT-RB025SD30S0AMS0Z | 0-25 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB025SD30S0AMS0Z measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control in both liquid and gaseous media. With a robust stainless steel housing and an IP67 enclosure rating, it ensures reliability in demanding environments. This sensor features a fast response time of ≤ 10 ms and high accuracy up to ±0.25% of span, perfect for applications in the food and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 32, 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Connection type: M12 round connector, 4-pin
- Dimensions (H x L x W): 120mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Clamp (DIN 32676) DN 32 process connection made of 316L stainless steel
- Housing made of stainless steel 1.4571 with IP67 enclosure rating
- Output signal: 4 mA to 20 mA, 2-wire
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- MTTF of 403 years ensuring high reliability
- Certified for food contact materials and compliant with EU, UK, and China RoHS
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and pharmaceutical industries
- Use in environments requiring hygienic process connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 4-20 mA output signal
- Compliant with RoHS directives limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB025SD30S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications.
