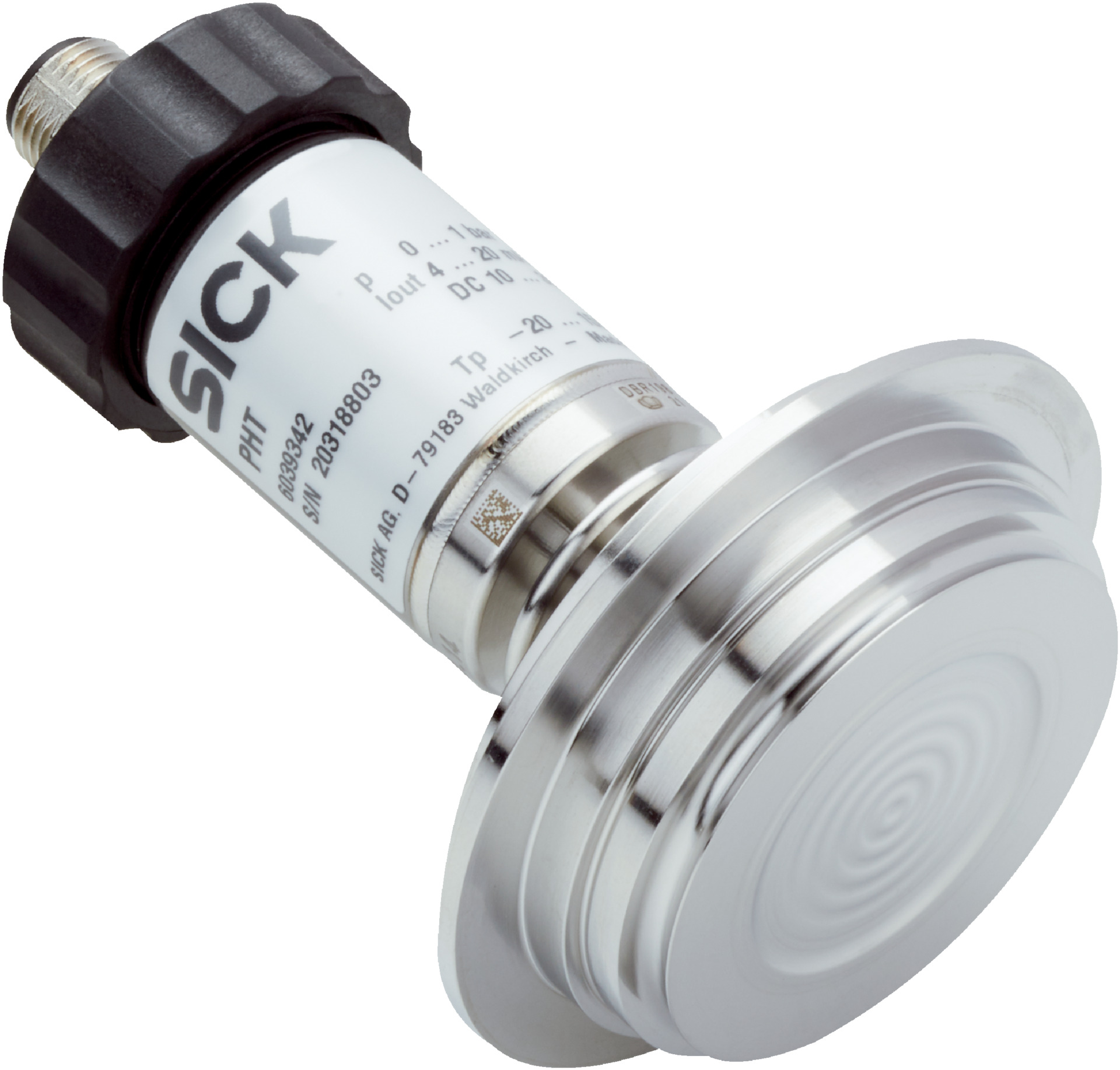

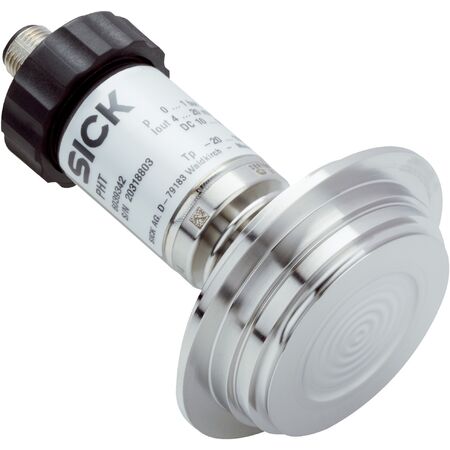

Pressure Transmitter PHT-RB025SVF0S0AMS0Z | 0-25 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB025SVF0S0AMS0Z measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control and hydraulic systems. With a robust stainless steel housing and an IP67 rating, it ensures reliable performance in harsh environments. Its fast response time and high accuracy up to ±0.5% of span make it perfect for applications in the food and beverage industry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Non-repeatability: ≤ ±0.1% of span
- Response time (10% to 90%): ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Housing material: Stainless steel 1.4571
- Process connection: Varivent connection type F, 316L stainless steel wetted parts
- Connection type: M12 round connector, 4-pin
- Dielectric strength: 500 V DC
- Dimensions (H x L x W): 100mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy up to ±0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Robust stainless steel housing (1.4571) and process connection (316L stainless steel)
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2% span drift per year
- M12 round connector, 4-pin connection
- Test terminals for signal current metering without device disconnection
- MTTF of 403 years indicating high reliability
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control
- Hydraulic and pneumatic systems
- Food and beverage industry due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB025SVF0S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
