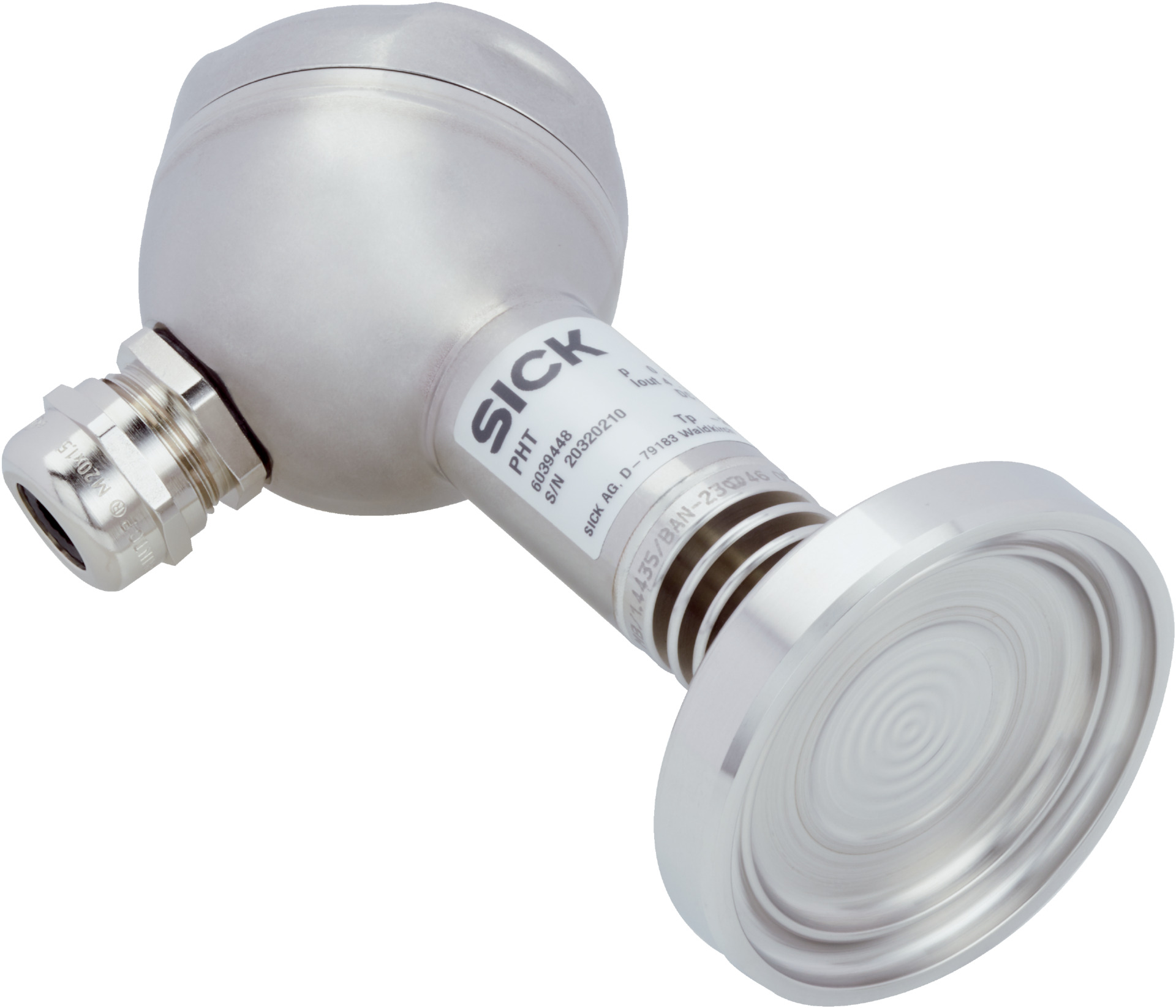

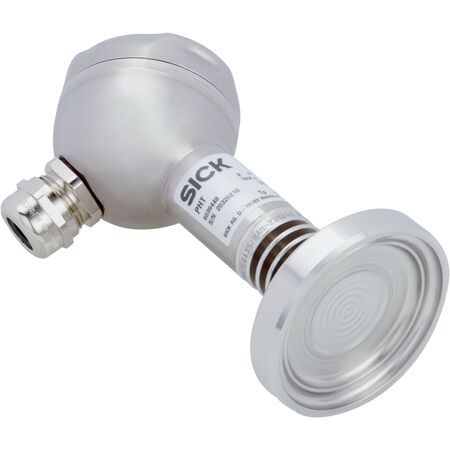

Pressure Transmitter PHT-RB025S640S0AMS0Z | 0-25 Bar Gauge Pressure | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB025S640S0AMS0Z measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control and monitoring. With a robust stainless steel housing and an IP67 rating, it ensures durability in harsh environments. This sensor features a fast response time of ≤ 10 ms and high accuracy up to ±0.25% of span, perfect for applications in the food and beverage industry and other demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Temperature coefficient: Mean TC of zero ≤ 0.2% of span / 10 K
- Connection type: M12 round connector, 4-pin
- MTTF: 403 years
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing and 316L stainless steel wetted parts
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time ≤ 10 ms
- High accuracy up to ±0.25% of span (optional)
- Long-term stability with ≤ 0.2% span drift per year
- M12 round connector, 4-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food and beverage industry due to FDA approved internal fluid
- Harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption with 4-20 mA output signal
- FDA approved synthetic oil internal fluid suitable for food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB025S640S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and monitoring applications.
