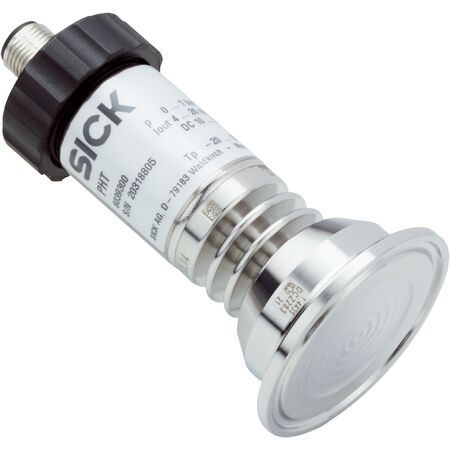

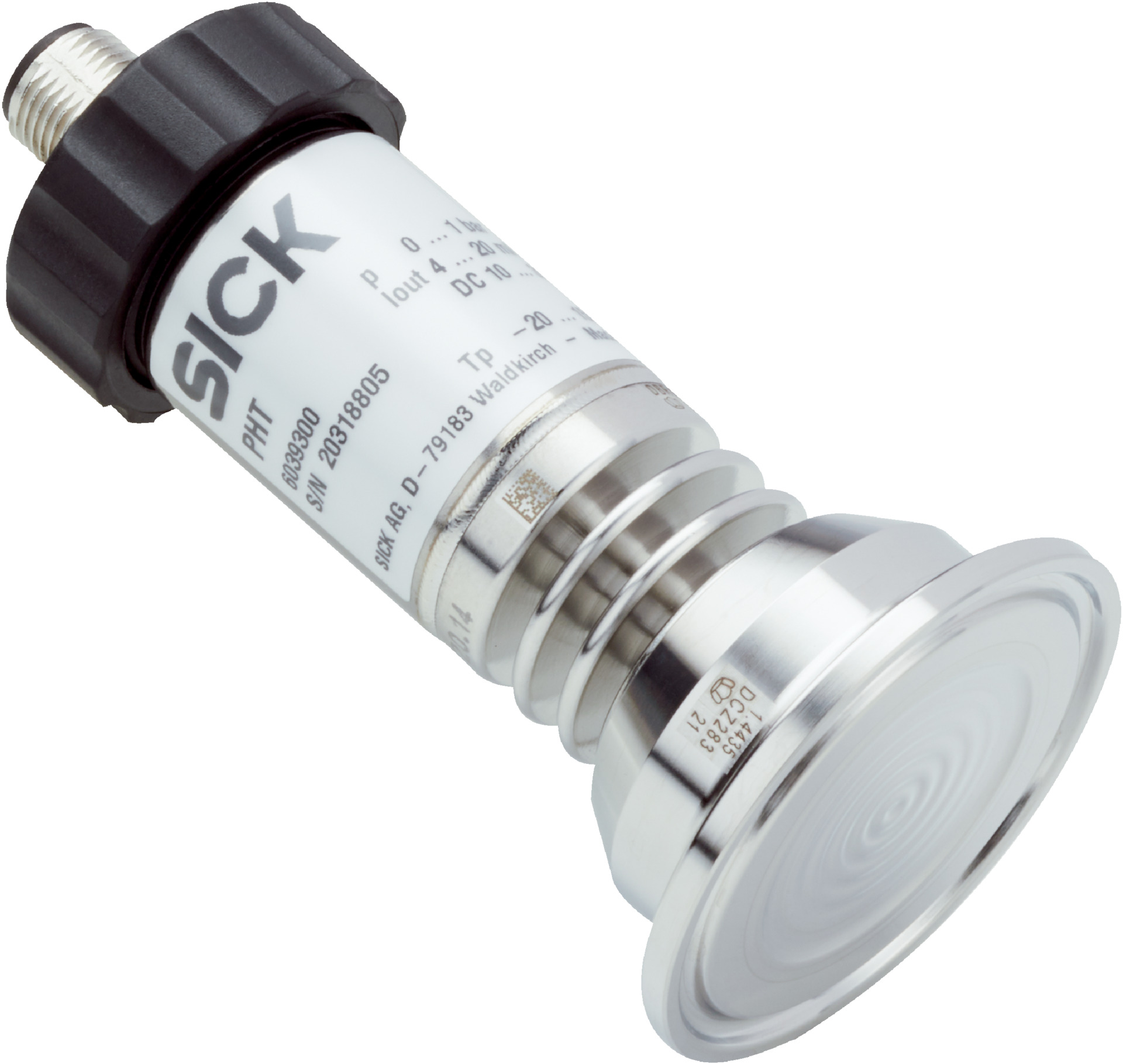

Pressure Transmitter PHT-RB025SD30S0AFT0Z | 0-25 Bar Gauge Pressure | IP67 Rated | Stainless Steel Housing | by SICK
The PHT-RB025SD30S0AFT0Z Pressure Transmitter measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control and pressure monitoring in the food and beverage industry. With a robust stainless steel housing and IP67 rating, it ensures durability and reliability in harsh environments, while offering fast response times and high accuracy for critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 32676) DN 32 process connection
- Stainless steel 1.4571 housing with 316L stainless steel wetted parts
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper sealing and electrical connections according to safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Hydraulic and pneumatic system pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- FDA approved materials ensure safe use in food industry minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK PHT-RB025SD30S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
