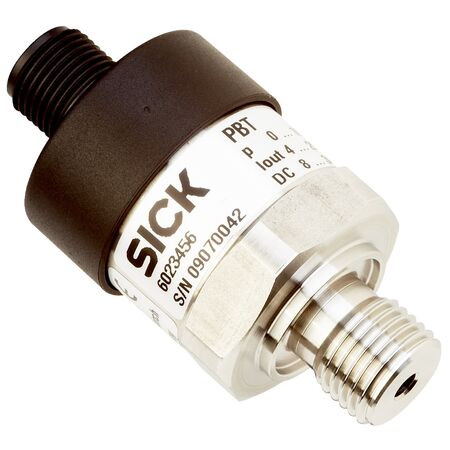

Pressure Transmitter PBT-RB250SN1SS0AMA0Z | 0-250 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PBT-RB250SN1SS0AMA0Z measures gauge pressure from 0 to 250 bar, making it ideal for industrial process control of liquid and gaseous media. With a fast response time under 4 ms and high accuracy of ≤ ±1% span, this sensor ensures reliable performance in hydraulic and pneumatic systems. Its durable stainless steel 316L construction and IP67 rating provide protection against dust and water, ensuring longevity and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 250 bar gauge pressure
- Process temperature: 0 °C to +80 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Process connection: ¼'' NPT stainless steel 316L
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Response time: < 4 ms
- Weight: approx. 80 g
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 250 bar
- Suitable for liquid and gaseous media
- Stainless steel 316L wetted parts and housing for durability
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Fast response time under 4 ms
- IP67 rated enclosure for protection against dust and water
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Operating temperature range 0 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Pressure measurement in manufacturing and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption enhances energy efficiency
- High accuracy reduces process waste and improves system efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PBT-RB250SN1SS0AMA0Z pressure sensor is available for immediate purchase, ideal for industrial and process control applications requiring reliable pressure measurement.
