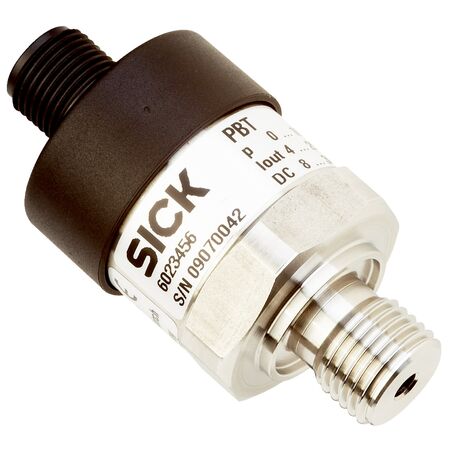

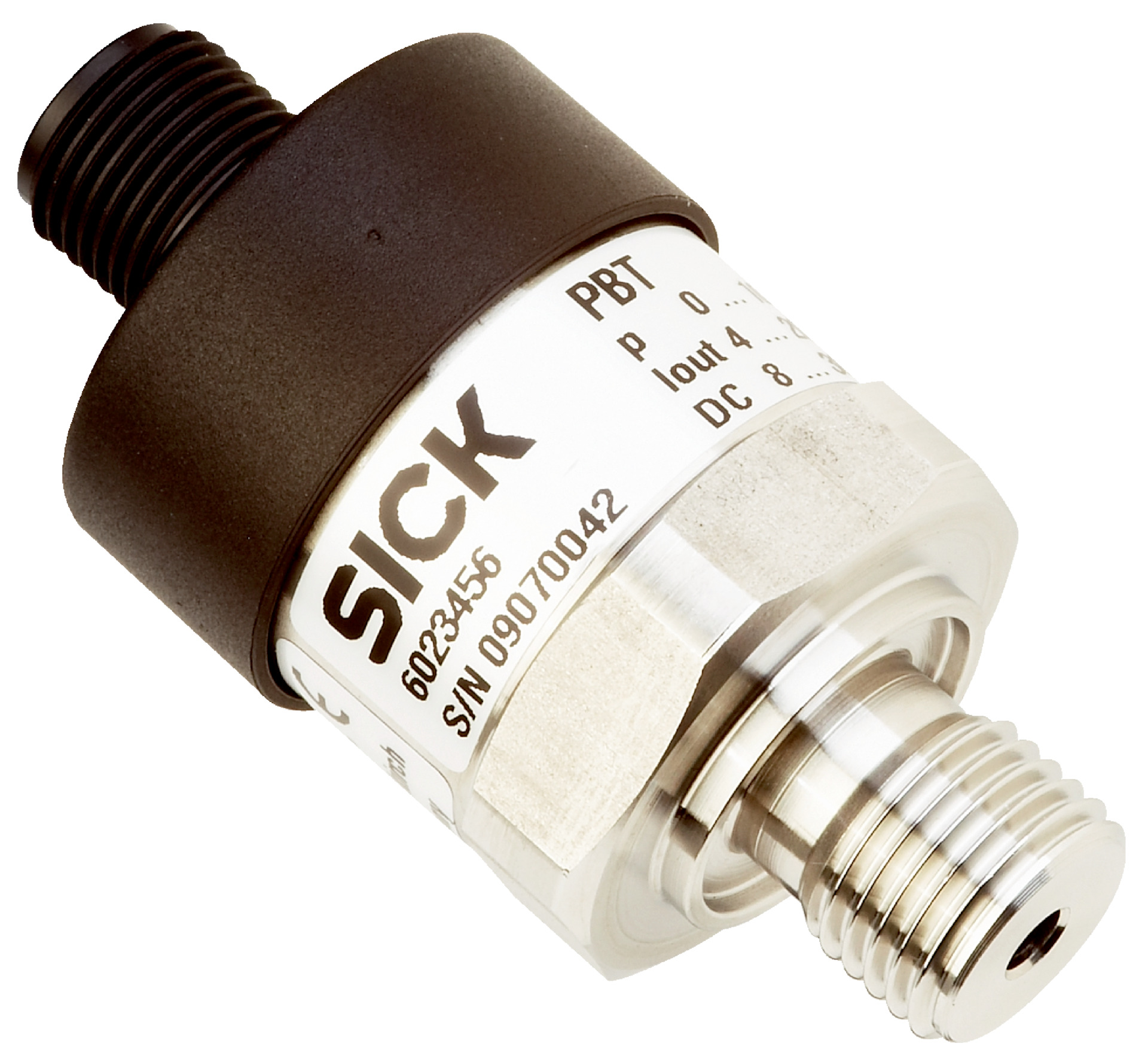

Pressure Transmitter PBT-RB040SN1SS0AMA0Z | 0-40 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PBT-RB040SN1SS0AMA0Z measures gauge pressure from 0 to 40 bar, making it ideal for industrial process control of liquid and gaseous media. With a fast response time under 4 ms and high accuracy of ≤ ±1% span, this sensor is built for durability with stainless steel 316L wetted parts. Perfect for automation systems requiring precise pressure measurement, it also features IP67 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 40 bar gauge pressure
- Process temperature: 0 °C to +80 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Process connection: ¼'' NPT
- Wetted parts: 316L stainless steel
- Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
- Enclosure rating: IP67
- Response time: < 4 ms
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Non-linearity: ≤ ±0.5% BFSL
- Hysteresis: ≤ 0.16% of span
- Non-repeatability: ≤ 0.1% of span
- Long-term drift: ≤ 0.1% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 10 g IEC 60068-2-6 (20 g optional)
- MTTF: 815 years
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 40 bar
- Suitable for liquid and gaseous media
- Stainless steel 316L wetted parts and housing for durability
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Fast response time under 4 ms
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Operating temperature range 0 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBT-RB040SN1SS0AMA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
