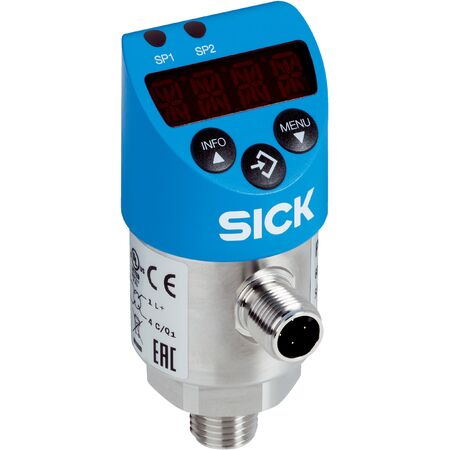

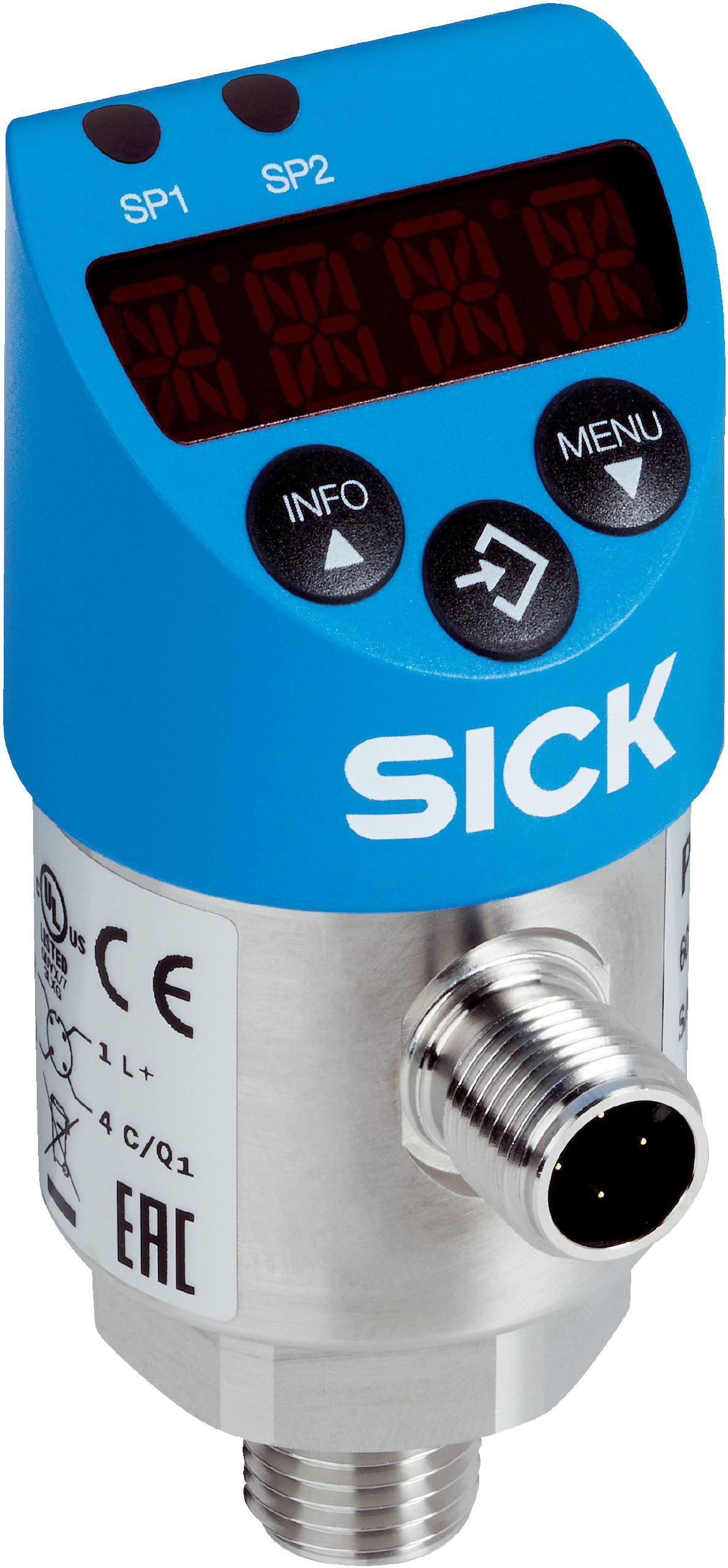

Pressure Transmitter PBS2-RB400SF2FSFNMA0Z | 0 to 400 Bar Range | IO-Link & PNP Output | IP67 Rated | by SICK
The PBS2-RB400SF2FSFNMA0Z pressure transmitter is designed for precise gauge pressure measurement in industrial applications. With a measuring range from 0 to 400 bar and multiple output signals including IO-Link, it ensures seamless integration into automation systems. Built for durability with an IP67 rating, this sensor is perfect for monitoring pressure in hydraulic and pneumatic systems, providing high accuracy and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.22 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 bar to 400 bar (0 psi to 5802 psi)
- Output signals include IO-Link, PNP, NPN, 4 mA to 20 mA, and 0 V to 10 V
- Rotatable housing with 14-segment red LED display, 4-digit, electronically rotatable by 180°
- Process connection G ½ B flush mounted with front-flush membrane pressure port
- High accuracy with ≤ ±0.5% span including non-linearity and hysteresis
- Fast response time ≤ 5 ms and long service life of minimum 100 million load cycles
- Enclosure rating IP67 for robust protection against dust and water
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Communication interface IO-Link V1.1 for easy integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for IO-Link communication and electrical safety compliance.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long product life reducing waste
- Low power consumption (45 mA to 70 mA) minimizes energy use
- High accuracy reduces process errors and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBS2-RB400SF2FSFNMA0Z pressure sensor is available for immediate purchase, ideal for industrial process control and automation requiring precise pressure measurement.
