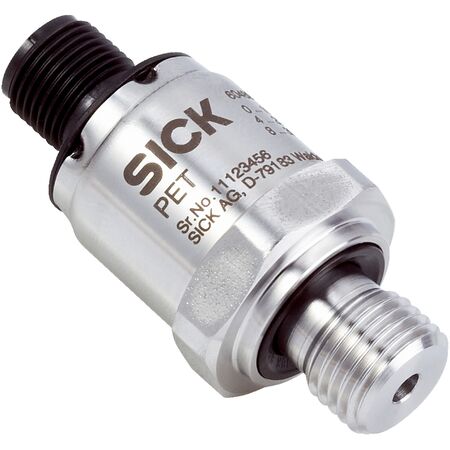

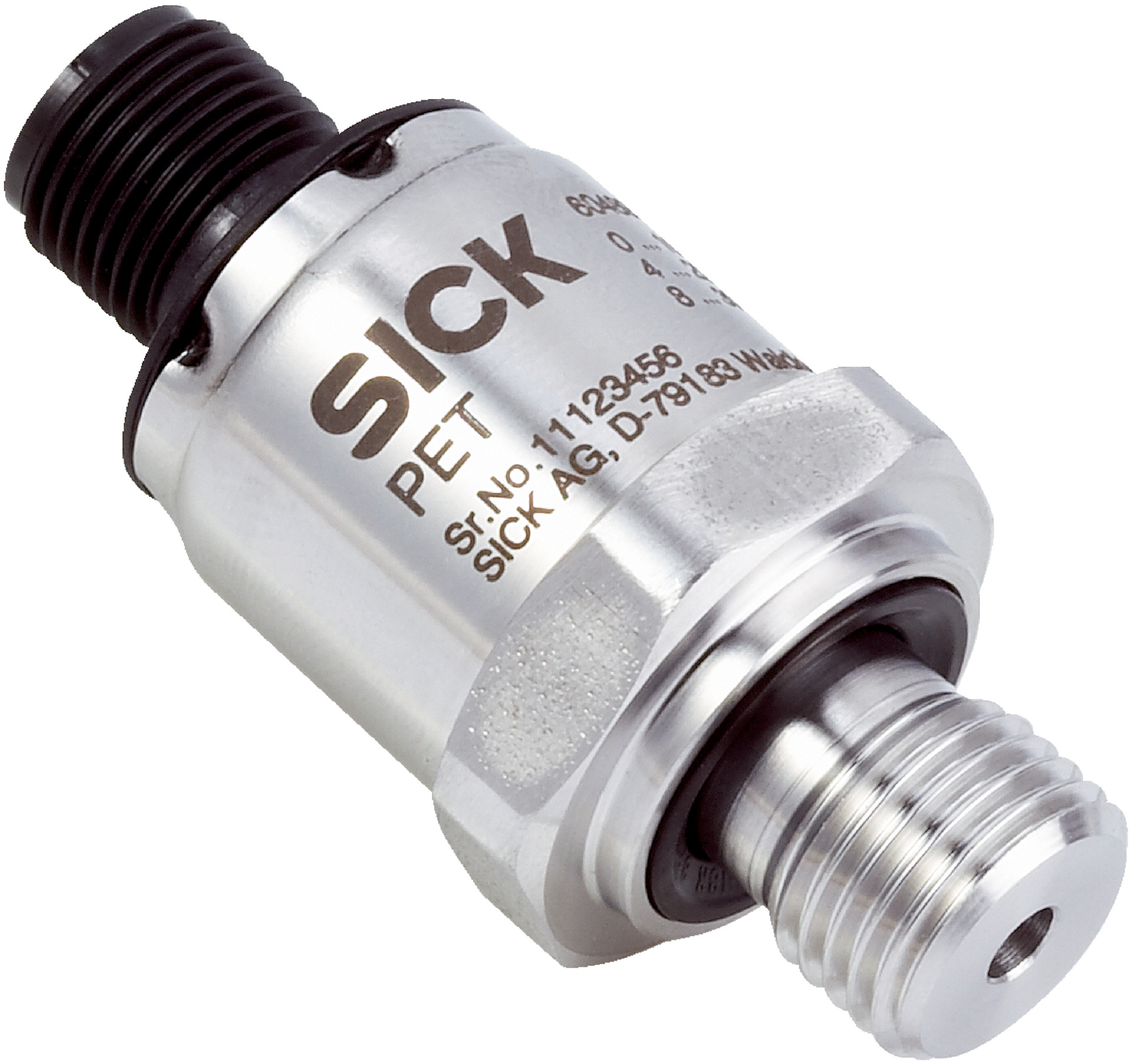

Pressure Transmitter PET-1RP5K0N10SRMR | 0 to 5000 psi | IP67 Rated | Fast Response Time | by SICK
The Pressure Transmitter PET-1RP5K0N10SRMR measures gauge pressure in fluids up to 5000 psi, making it ideal for industrial fluid pressure measurement and control. With a robust stainless steel housing and an IP67 rating, it ensures durability and reliability in harsh environments. Designed for hydraulic and pneumatic systems, this sensor features a fast response time under 2 ms and a long service life, making it a perfect choice for automation and machinery safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 psi to 5000 psi
- Pressure type: Gauge pressure
- Output signal: 0.5 V to 4.5 V, ratiometric, 3-conductor
- Process connection: ¼'' NPT stainless steel
- Housing material: Stainless steel 316L and PBT GF30
- Supply voltage: 4.5 V DC to 5.5 V DC
- Power consumption: 5 mA
- Enclosure rating: IP67 (IEC 60529)
- Response time: < 2 ms
- Accuracy: ≤ ±1.2% of span at room temperature
- Non-linearity: ≤ ±0.5% of span (BFSL)
- Operating temperature: -30 °C to +100 °C
- Shock load: 40 g (6 ms) IEC 60068-2-27
- Vibration load: 20 g (20 Hz to 2000 Hz, 120 min) IEC 60068-2-6
- Dimensions (H x L x W): 70mm x 30mm x 30mm
- Weight: 0.3 kg
Key Features
- Measures gauge pressure in fluids up to 5000 psi
- High overpressure safety: 2-fold standard, 3-fold on request
- Ratiometric output signal 0.5 V to 4.5 V with 3-conductor connection
- Fast response time under 2 ms
- Robust stainless steel 316L housing and wetted parts
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +100 °C
- Long service life with minimum 10 million load cycles
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial fluid pressure measurement
- Hydraulic and pneumatic systems
- Process control and monitoring
- Automation and machinery safety
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 5 mA supports energy efficiency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK PET-1RP5K0N10SRMR pressure sensor is available for immediate purchase, ideal for industrial fluid pressure monitoring and control applications.
