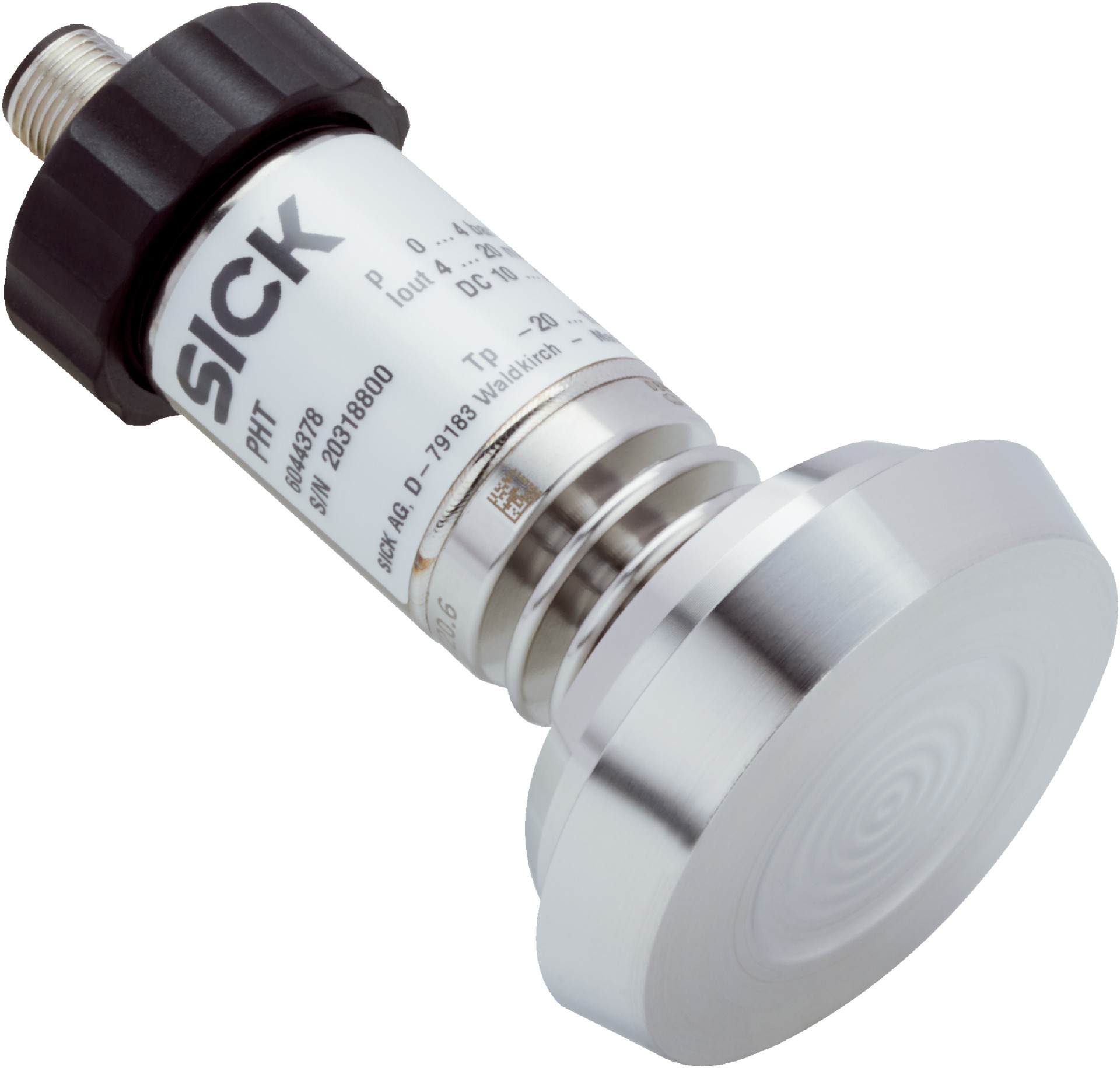

Pressure Transmitter PHT-RB6X0S550S0ALS0Z | 0-6 Bar Gauge Pressure | IP65 Rated | by SICK
The Pressure Transmitter PHT-RB6X0S550S0ALS0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel construction and an IP65 enclosure rating, this sensor is perfect for industrial process control and food industry applications, ensuring high accuracy and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 120mm x 70mm x 70mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP65 enclosure rating for dust and water protection
- Long-term stability with ≤ 0.2 % span drift per year
- High accuracy up to ± 0.25 % of span (optional)
- Fast response time ≤ 10 ms
- MTTF of 403 years indicating high reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP65 rated sensor protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB6X0S550S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
