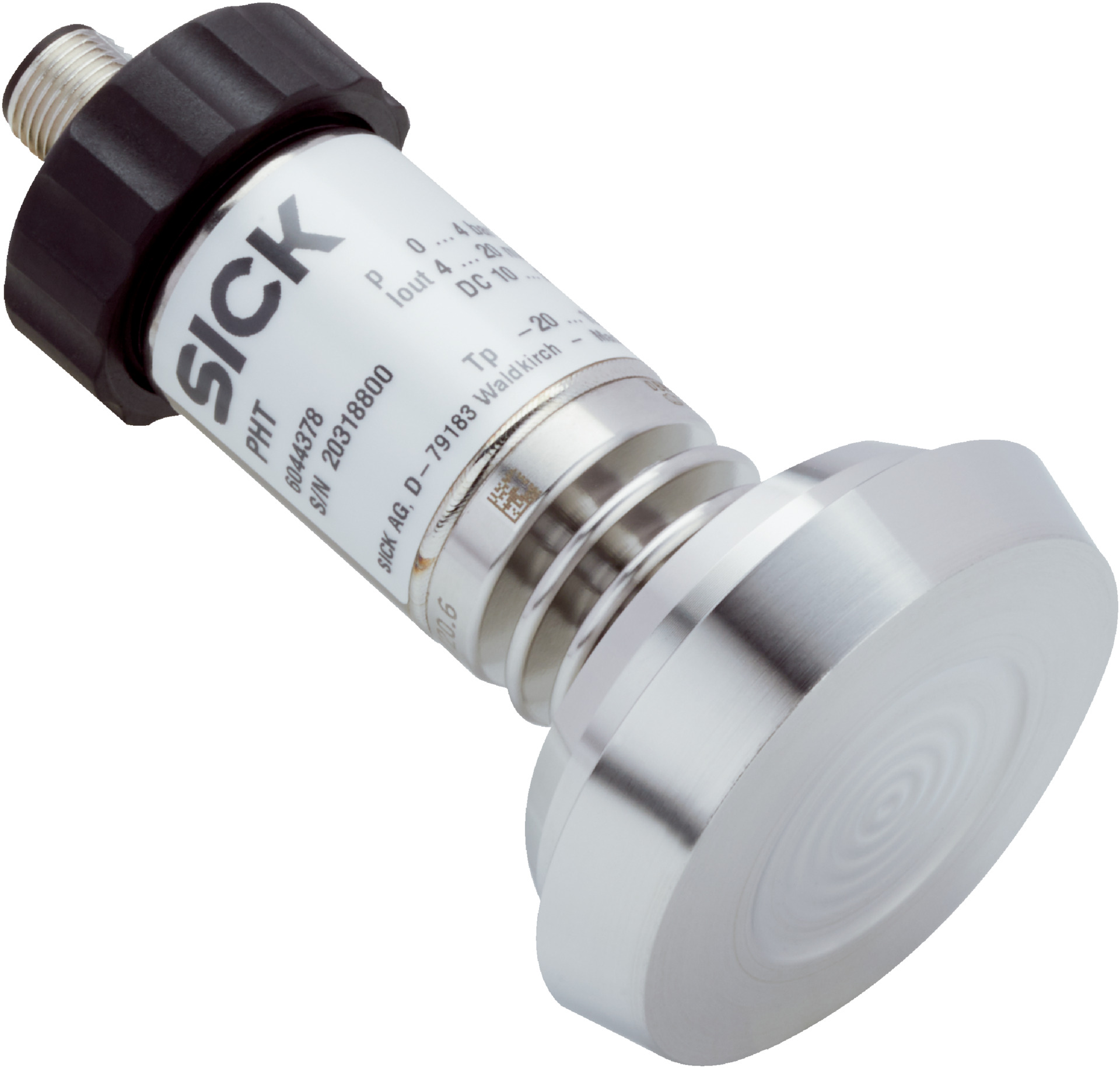

Pressure Transmitter PHT-RB6X0S520SEALS0Z | 0-6 Bar Gauge Pressure | IP65 Enclosure | by SICK
The Pressure Transmitter PHT-RB6X0S520SEALS0Z measures gauge pressure from 0 to 6 bar, making it ideal for industrial process control and food industry applications. With a robust stainless steel housing and an IP65 enclosure rating, it ensures durability and reliability in various environments. Featuring a fast response time and FDA-approved internal fluid, this sensor is perfect for precise pressure monitoring in liquids and gases.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Conical coupling (DIN 11851) DN 25 with union nut
- Housing material: Stainless steel 1.4571
- Internal transmission fluid: Synthetic oil, FDA approved
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with IP65 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy up to ±0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- FDA approved synthetic oil as internal transmission fluid
- Conical coupling (DIN 11851) DN 25 process connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- FDA approved internal fluid ensures safe use in food industry
- Energy efficient 2-wire current output reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PHT-RB6X0S520SEALS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
