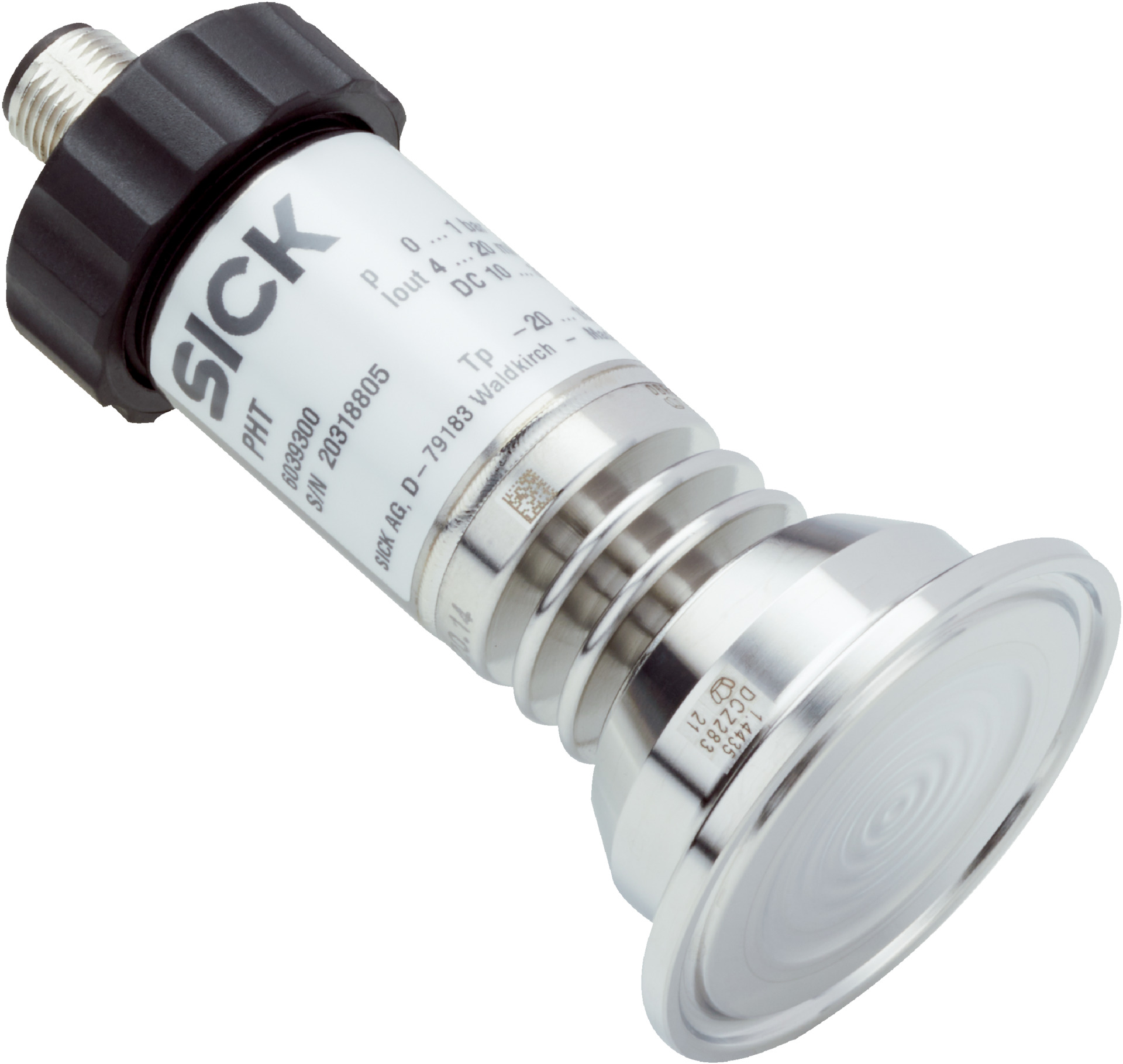

Pressure Transmitter PHT-RB6X0SD30S0ALS0Z | 0-6 Bar Gauge Pressure | IP65 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB6X0SD30S0ALS0Z measures gauge pressure from 0 to 6 bar, making it ideal for industrial process control and food industry applications. With a robust stainless steel housing and IP65 rating, it ensures durability in harsh environments while providing accurate readings with a response time of ≤ 10 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process connection: Clamp (DIN 32676) DN 32
- Output signal: 4 mA to 20 mA, 2-wire
- Process temperature range: -20 °C to +150 °C
- Housing made of stainless steel 1.4571 with 316L stainless steel wetted parts
- Internal transmission fluid is FDA approved synthetic oil
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 for dust and water protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant according to IEC standards
- CE conformity and multiple international certifications
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP65 rated sensor protection
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
- Low power consumption with 4-20 mA output signal reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB6X0SD30S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
