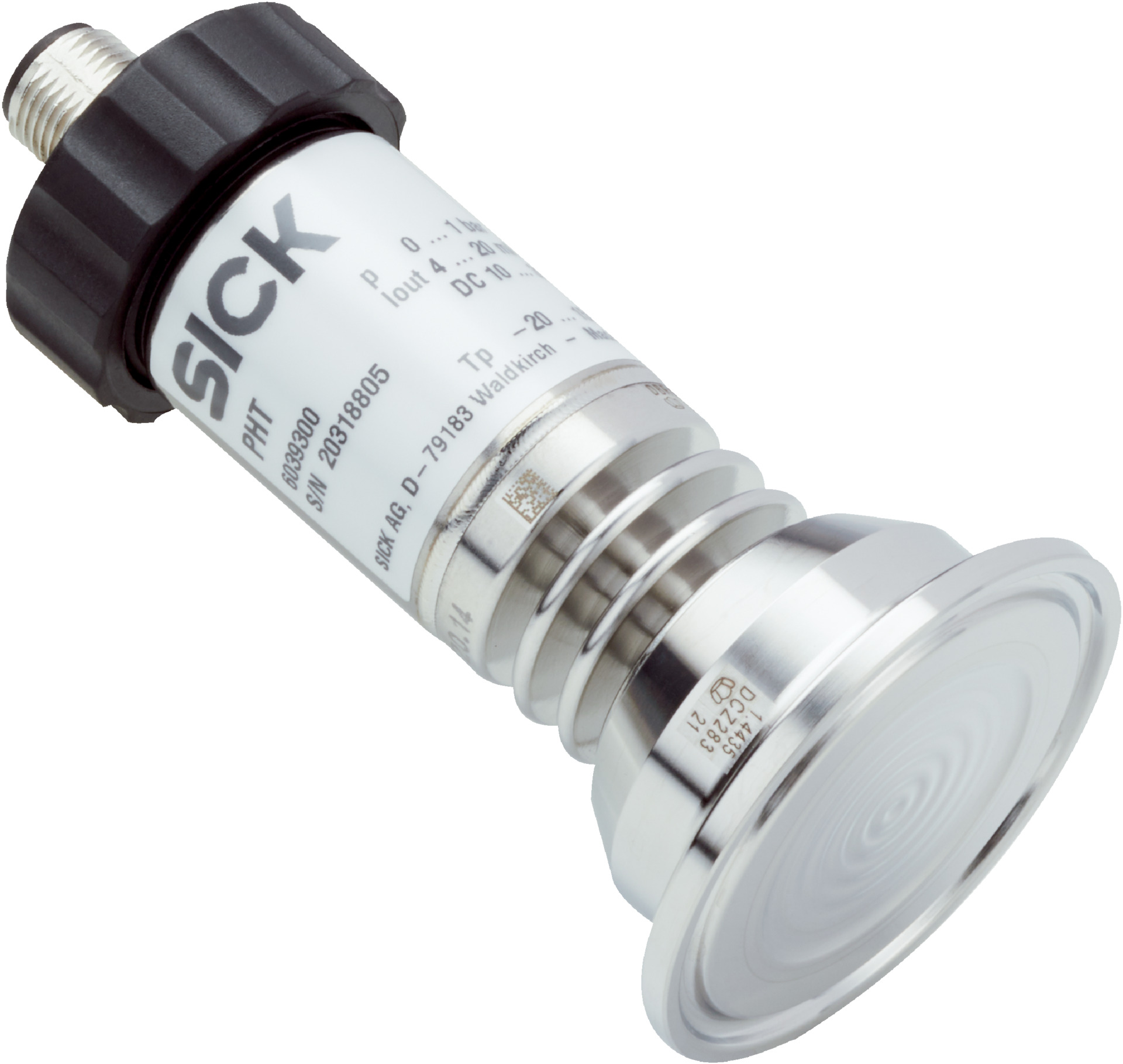

Pressure Transmitter PHT-RB6X0SD30S0AFT0Z | 0-6 Bar Gauge Pressure | IP67 Rated | FDA Approved | by SICK
The Pressure Transmitter PHT-RB6X0SD30S0AFT0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and FDA-approved internal transmission fluid, this sensor is perfect for industrial and food processing applications that require precise pressure monitoring and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 32676) DN 32 process connection
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571 with field housing connection
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor setup and electrical safety standards to ensure proper operation and compliance.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- Low power consumption with efficient 2-wire 4-20 mA output
- FDA approved materials support safe use in food industry, minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB6X0SD30S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
