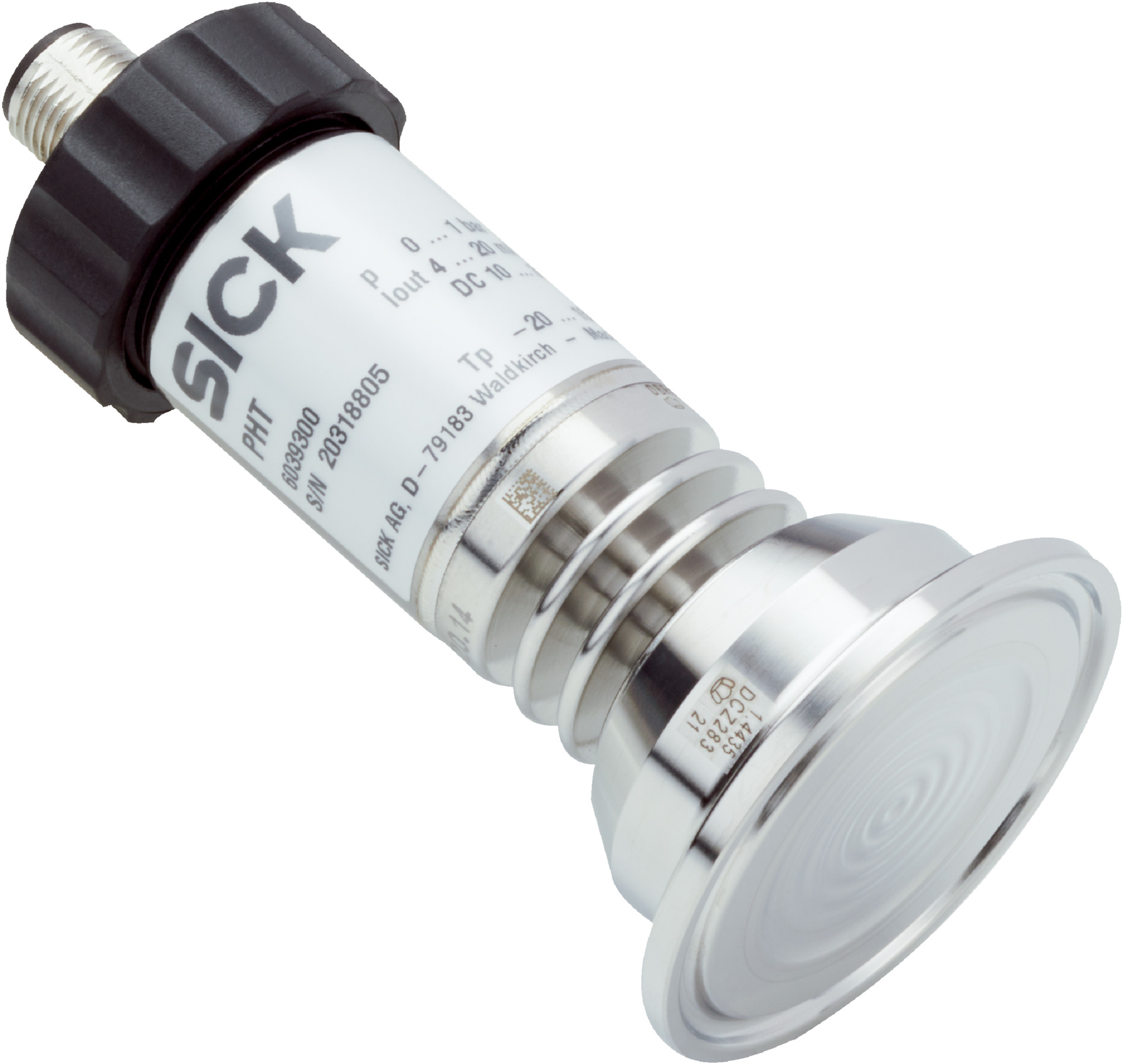

Pressure Transmitter PHT-RB6X0SD30S0AMS0Z | 0-6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB6X0SD30S0AMS0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 rating, it’s perfect for industrial process control and food industry applications, ensuring high accuracy and durability even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 32676) DN 32 process connection with 316L stainless steel wetted parts
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB6X0SD30S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications.
