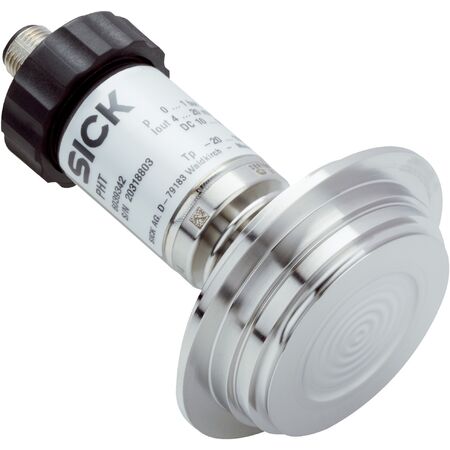

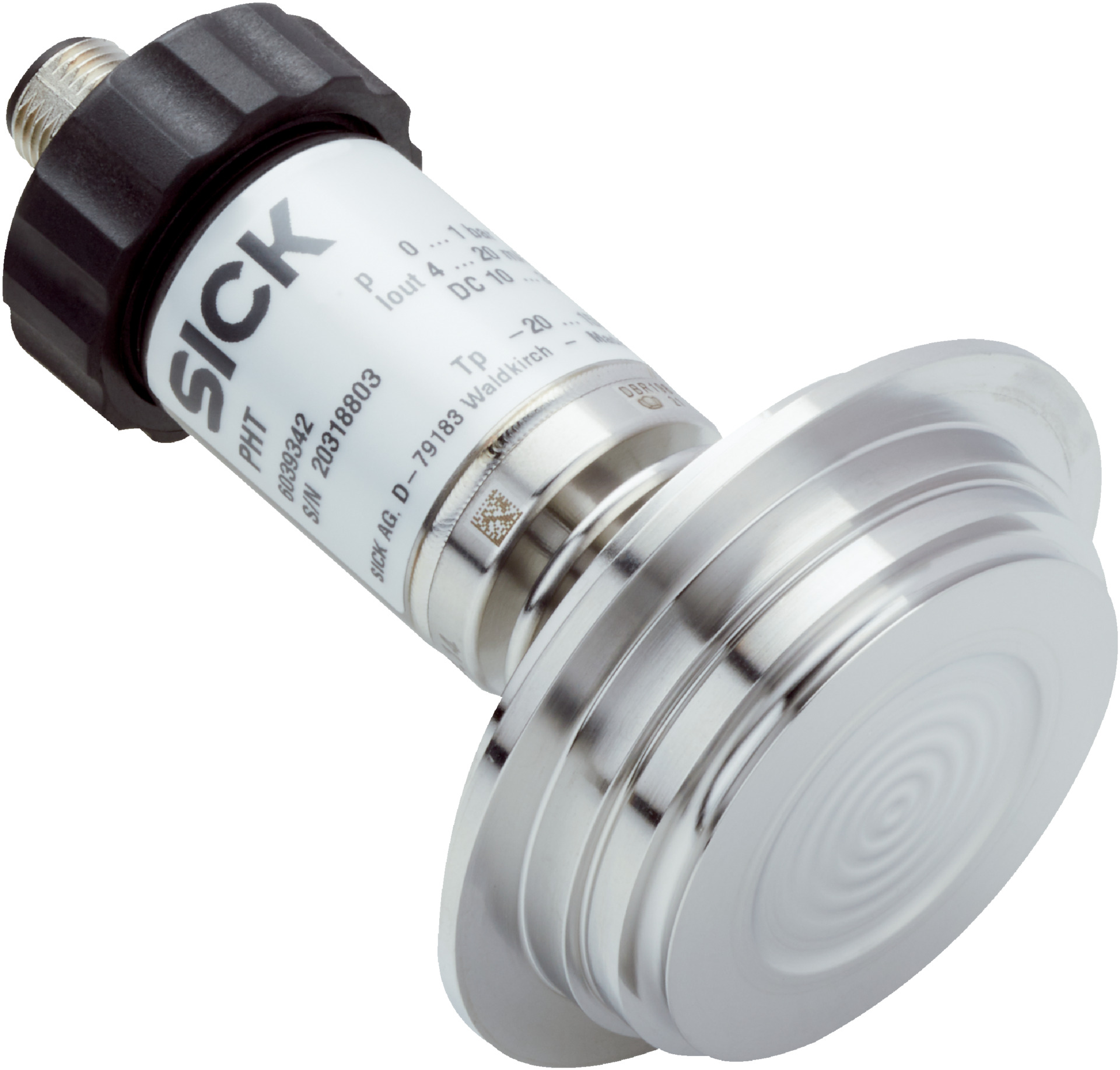

Pressure Transmitter PHT-RB6X0SVF0S0AFT0Z | 0-6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB6X0SVF0S0AFT0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel construction and an IP67 rating, it ensures reliable performance in harsh environments. Perfect for industrial process control and food industry applications, this sensor features a fast response time and high accuracy, ensuring precise pressure monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar
- Pressure type: Gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Material: Stainless steel 1.4571 housing, 316L stainless steel wetted parts
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Non-linearity: ≤ ± 0.2% of span
- Non-repeatability: ≤ ± 0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g
- Vibration load: 15 g
- MTTF: 403 years
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with 316L stainless steel wetted parts
- Field housing with Varivent connection type F
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5% of span, optional 0.25%
- Shock and vibration resistant (500 g shock, 15 g vibration)
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor devices and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
- Harsh environments requiring IP67 rated protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- FDA approved internal fluid ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB6X0SVF0S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
